Hoffman 402442 2100 main valve 3/4 inch full port

Product Description

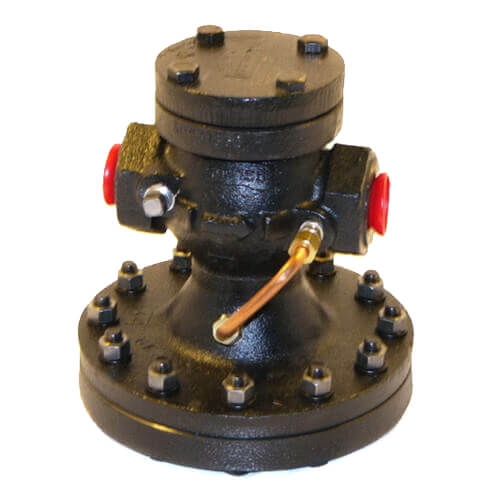

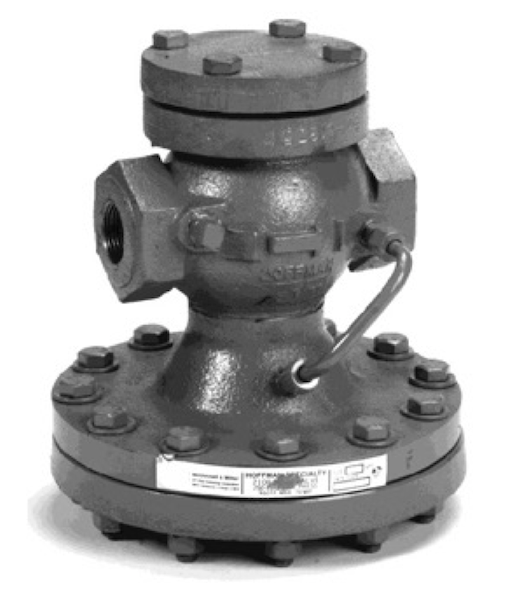

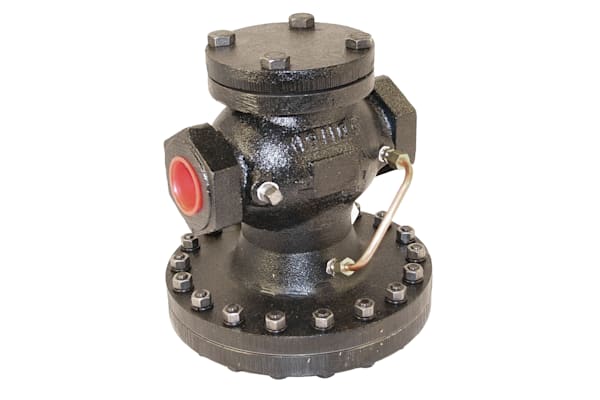

The Hoffman 402442 is a Series 2000 Model 2100 pressure regulating valve with a 3/4 inch NPT connection and full port. Designed for steam service, this normally-closed, single-seated valve is controlled by pilot control valves. It features a cast iron body and can handle a maximum pressure of 250 psi WSP and temperatures up to 450°F. This valve is suitable for applications requiring precise steam pressure regulation.

• 2-ply stainless steel diaphragm provides greater accuracy of control over entire capacity range and a longer life.
• Packless construction.
• Positive travel stop and back up of diaphragm prevents over pressurizing from downstream (low-pressure) side.

Product Highlights

Maintains accurate and stable control of pressure or temperature.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: 402442
• Country of Origin: United States

Technical Specifications

• MPN: 402442
• Model: 2100FP
• Valve Type: Steam Regulating Valve
• Valve Application: Steam
• Body Material: Cast Iron
• Piping Configuration: Straight
• Connection Size: 3/4 inch
• Connection Type: NPT
• Port Type: Full Port
• Max Pressure: 250 psi WSP
• Inlet Pressure: 20 psi
• Minimum Differential Pressure: 15 psi
• Maximum Differential Pressure: 150 psi
• Maximum Temperature: 450°F
