Product Description

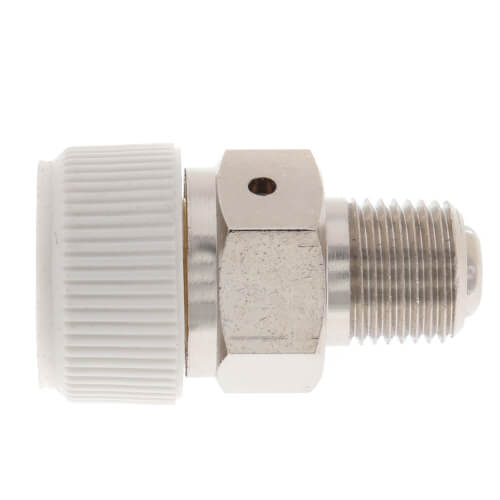

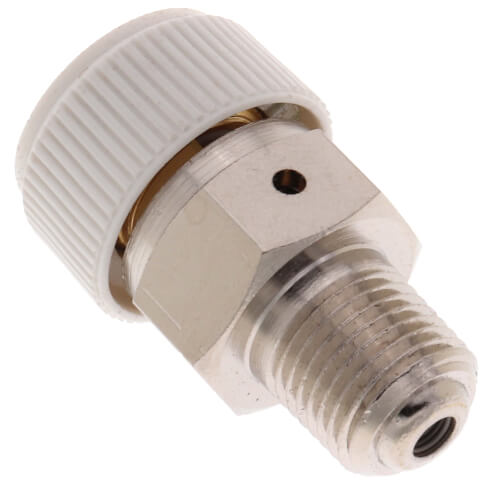

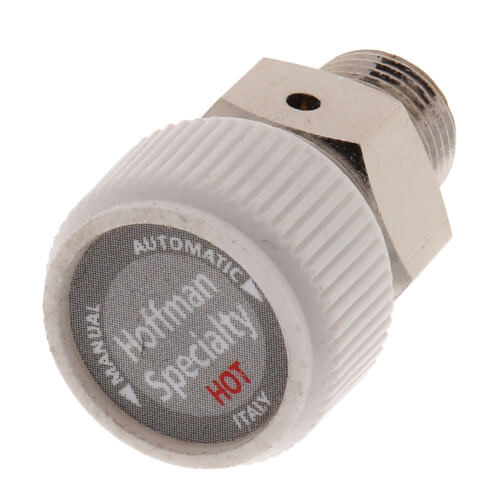

The Hoffman 401475, also known as the 508 1/8 Straight Steam Convector Air Valve, is a reliable component manufactured by Xylem-Hoffman Specialty for HVAC systems. This air valve is used for automatic venting of convectors and radiators.
- Disc-type vent
- Built-in Check Valve
- Easy to clean without line removal
Product Highlights
The 508 model is designed with a non-vacuum disc-type vent and a built-in check valve. It's suitable for use in various heating systems where automatic venting is essential. This valve features a 1/8 NPT straight shank and can handle a maximum steam pressure of 15 psig.
Product Information
Standard Information
-
Brand: Hoffman
-
MPN: 401475
-
Manufacturer: Xylem-Hoffman Specialty
Technical Specifications
-
Thread Size: 1/8
-
Thread Type: Male
-
Body Pattern: Straight
-
Max Pressure: 15 psig
-
Max Temperature: 240 degrees Fahrenheit
-
Minimum Temperature: 140 degrees Fahrenheit
-
Adjustability: Non-Adjustable
-
Material: Steel
-
System Type: Steam
-
Application: Convector Vent
