Product Description

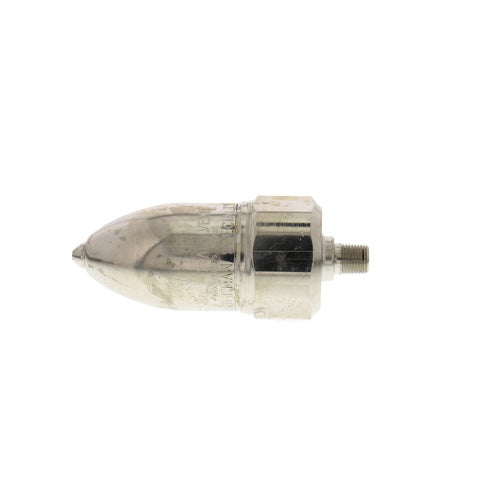

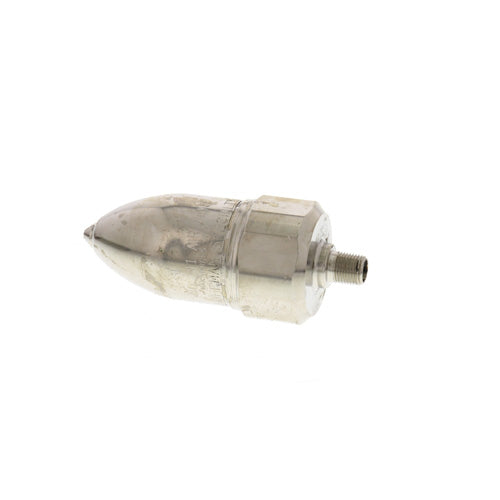

This Hoffman 1/8 inch Straight Steam Convector Air Valve is designed for small steam systems. It serves an essential function in maintaining efficient operations by ensuring proper air flow and pressure maintenance.
- Non-vacuum with a single non-adjustable port for reliability.
- Includes a telescopic siphon tube with an angular cut for effective drainage.
- Constructed from robust steel for durability.
Product Highlights
This air valve operates optimally within a temperature range of 140 to 240 degrees Fahrenheit, handling a maximum pressure of 10 psig. Ideal for convector vent applications, this component proves essential for maintaining system integrity and performance.
Technical Specifications
-
Thread Size: 1/8 inch NPT
-
Body Pattern: Straight
-
Max Operating Pressure: 6 psig
-
Max Pressure: 10 psig
-
Material: Steel
-
Weight: 0.35 pounds
-
Dimensions: Length 4.13 inches, Width 1.5 inches, Height 1.5 inches
