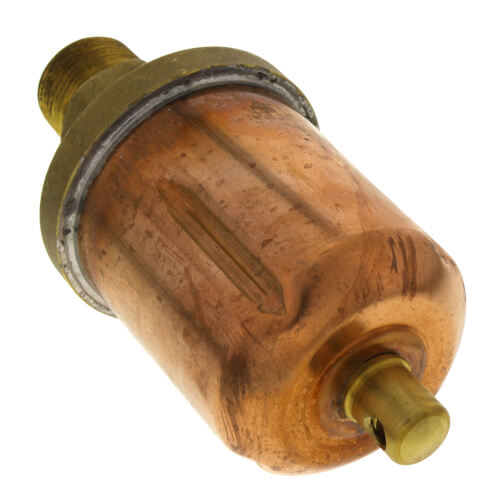

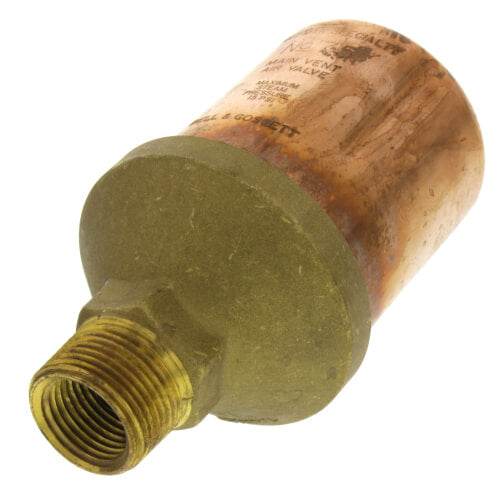

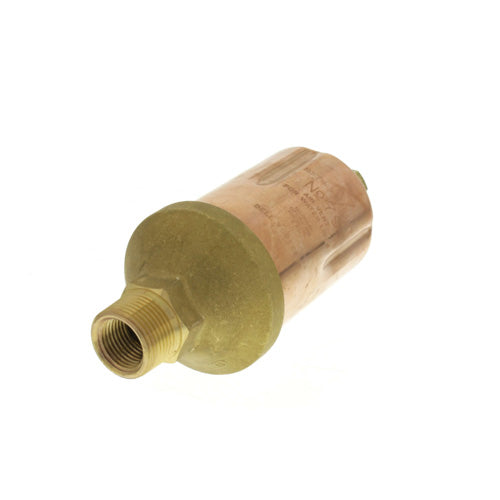

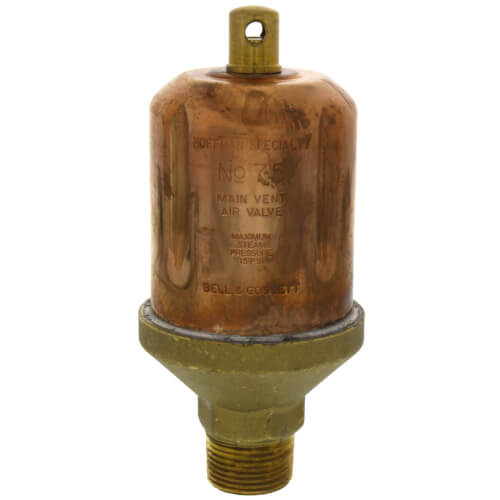

Hoffman 401434 75, 1/2 x 3/4 Straight Steam Main Air Valve

Product Description

The Hoffman 401434 is a steam vent designed for medium and large heating systems. This float-type thermostatic vent features a non-vacuum design with a single non-adjustable port. It is suitable for main vent applications in steam systems.

• Float-type thermostatic vent
• 1/2 NPT female and 3/4 NPT male straight shank
• Maximum operating pressure of 3 psig and maximum pressure of 15 psig

Product Highlights

This air valve is essential for maintaining efficient steam system operation, allowing for proper venting of air while preventing water from escaping. It is ideal for installations needing reliable air control without the risk of vacuum issues.

Product Information

Standard Information

• Brand: Hoffman
• MPN: 401434

Technical Specifications

• Type: Float-type Vent, Non-Vacuum
• Size: 1/2 x 3/4 inches
• Material: Steel
• Maximum Operating Pressure: 3 psig
• Maximum Pressure: 15 psig
• Temperature Range: 140°F - 240°F
• Shipping Dimensions: 6 inches (depth) x 2.5 inches (width) x 2.5 inches (height)
