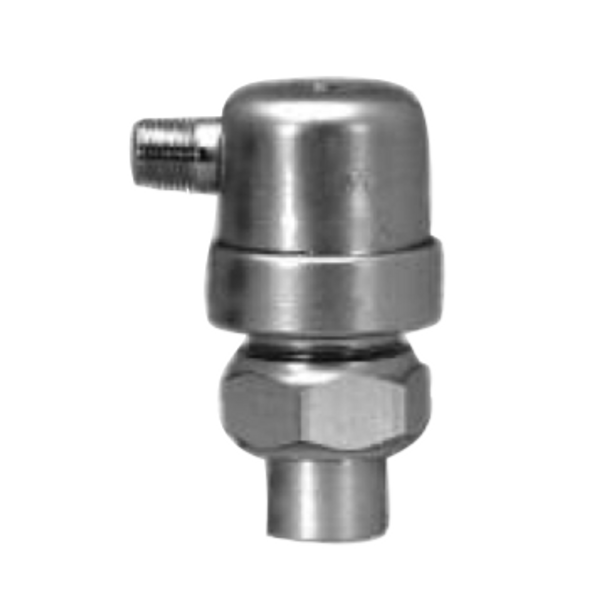

Hoffman 401419 3, 1/8 x 1/4 Angle Steam Air Line Valve

Product Description

The Hoffman 401419 3, 1/8 x 1/4 Angle Steam Air Line Valve is designed for steam applications. This valve serves as a thermostatic vent without a float, suitable for air line or Paul systems. The inlet size is one eighth NPT, while the outlet size is one quarter NPT. It can withstand a maximum operating pressure of twenty-five psig, translating to one point seven bar, and operates efficiently in vacuum conditions. The valve opens under drop away pressure, making it essential for effective air management in steam systems.

• Thermostatic vent suitable for steam systems
• Inlet and outlet sizes of one eighth and one quarter NPT
• Operating pressure capacity up to twenty-five psig

Product Highlights

This steam air line valve offers reliable performance for managing air in steam lines effectively.

Product Information

Standard Information

• Brand: Hoffman
• Type: No Float

Technical Specifications

• Size: 1/8 x 1/4
• Material: Steel
• Thread Size: 1/4, 1/8
• Thread Type: Male, Female
• Body Pattern: Angle
• Maximum Pressure: 25 psig
• Temperature Range: 140°F - 240°F
• Adjustability: Non-Adjustable
