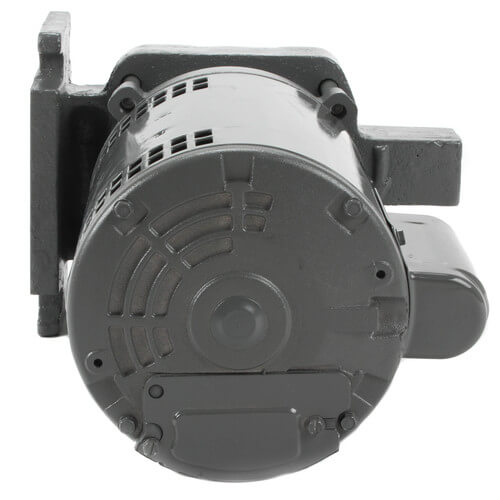

Hoffman 180026 616PF Boiler Feed Pump 3/4 HP 208-230,460V 3PH

Product Description

The Hoffman 180026 model is a robust boiler feed pump, featuring a 3/4 horsepower motor that operates on a three-phase 208-230/460V system. This pump is ideal for handling the demanding conditions of both condensate and boiler feed applications.

• Capable of reaching a maximum discharge pressure of 40 psi.
• Efficient low NPSH design requires only 2 inches NPSH.
• Features a precision balanced bronze impeller for smooth, vibration-free operation.

Product Highlights

This unit is designed with durability in mind, as it includes bronze case wear rings to protect the casing from wear and a water slinger to shield the motor from water. The heavy-duty ball bearing motor performs reliably at 3500 RPM, ensuring efficient operation.

Product Information

Technical Specifications

• Power: 3/4 HP
• Voltage: 208-230/460V, 3PH
• Max Flow Rate: 30 GPM
• Max Pressure: 40 psi
• Max Temperature: 250°F
