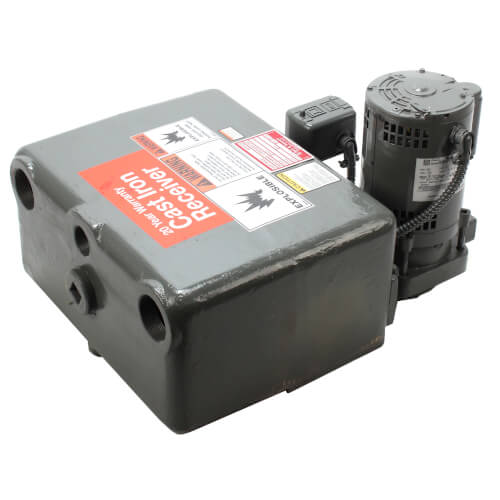

HOFFMAN 160031 WC12-20B Watchman Cast Iron Receiver Condensate Unit 1/3 hp 14 gallon

Product Description

The Hoffman 160031 WC12-20B Watchman Cast Iron Receiver Condensate Unit is designed to efficiently return condensate to boilers. This system is ideal for applications across residential, commercial, institutional, and industrial environments, including steam heating and processing industries like dry cleaning, chemical refineries, and textile mills.

• Robust cast iron construction with a 20-year corrosion warranty.
• Flexibility with simplex and duplex pump options.
• Factory tested to ensure reliability and performance.

Product Highlights

Equipped with a mechanical alternator in duplex models and a double pole float switch in simplex models, ensuring operational safety and ease of maintenance. The vertical pump design allows for simple serviceability.

Product Information

Technical Specifications

• Power: 1/3 horsepower
• Voltage: 115/208-230V
• Discharge Pressure: 20 PSIG
• Flow Rate: Up to 33 GPM at 30 feet of head
• Capacity: 14 gallons
• Material: Cast Iron
• Dimensions: 23 inches length x 23 inches width x 16.75 inches height
