Hoffman 160030 Watchman Series Condensate Unit 1/3 HP 9 Gallons

Product Description

The Hoffman 160030 Watchman Series Condensate Unit is designed to efficiently return condensate to the boiler. This unit is widely used in residential, commercial, institutional, and industrial steam heating environments. It can also be found in industrial processing, dry cleaning plants, chemical refineries, and textile mills.

• 1/3 Horsepower
• 9-gallon tank capacity
• 52-foot maximum head

Product Highlights

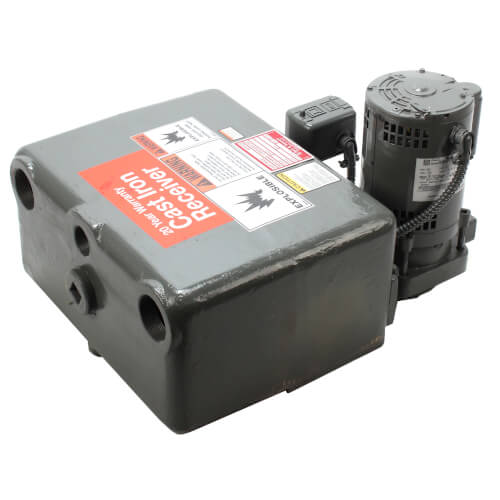

This Hoffman condensate unit features a cast iron receiver and is capable of handling various applications. It includes a float switch for pump activation and NPT connections for the intake and discharge. The unit is designed for easy installation and servicing with vertical pull-out pumps.

Product Information

Standard Information

• Manufacturer: Hoffman
• Brand: Hoffman
• MPN: 160030

Technical Specifications

• Horsepower: 1/3 hp
• Voltage: 115/230V AC
• Maximum Feet of Head: 52 ft
• Maximum Flow Rate at 30 Feet of Head: 33 gpm
• Maximum Flow Rate at 40 Feet of Head: 30 gpm
• Tank Capacity: 9 gallons
• Maximum Media Temperature: 200 Degrees F
• Pump Mounting Position: Vertical
