Hoffman 160013 watchman dplx w/mech alternatr 1/3 hp 14 gallon

Product Description

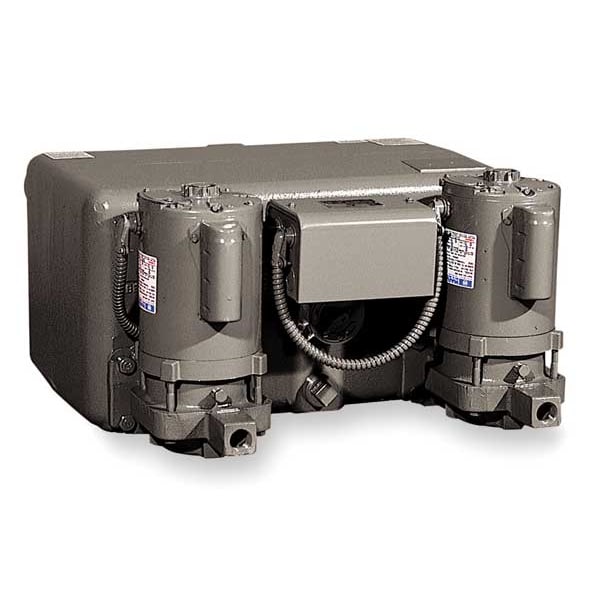

The HOFFMAN 160013 Watchman Duplex Condensate Unit with Mechanical Alternator is designed to return condensate to the boiler. It is suitable for residential, commercial, institutional, and industrial steam heating applications, including dry cleaning plants, chemical refineries, and manufacturing facilities. This unit features a 1/3 HP pump, a 14-gallon steel receiver, and operates on 115/208-230V. It is capable of handling 12,000 sq. ft. EDR systems.

• Designed for 12,000 sq. ft. EDR systems, ensuring efficient condensate return.
• Features a mechanical alternator for duplex models, providing reliable operation and backup.
• Equipped with a 14-gallon steel receiver and 1/3 HP pump, capable of 18 GPM at 20 PSIG discharge pressure.

Product Highlights

Mechanical alternator ensures balanced pump wear and provides emergency backup for continuous operation.

Product Information

Standard Information

• Brand: HOFFMAN
• Manufacturer Part Number: 160013
• Country of Origin: United States

Technical Specifications

• Input Voltage: 115/208-230V AC
• Receiver Material: Welded Steel
• Pump Type: Duplex
• Horsepower: 1/3 HP
• EDR Rating: 12,000 sq ft
• Pump Flow Rate: 18 GPM
• Discharge Pressure: 20 PSIG
• Receiver Capacity: 14 Gallons
• Frequency: 60 Hz
• RPM: 3,540 RPM
• Full Load Amps: 7.2/4.0 A
• Phase: Single
• Series: WCSD12-20 B-MA
• Bearings: Permanently Lubricated Ball
• Mounting: 4-Bolt Flange
• Seal Type: John Crane Type 6 Buna N/Carbon/Ceramic Shaft
• Motor Type: Open Dripproof, Single Phase, Capacitor Start
• Maximum RPM: 3,500 RPM
• Pump Material: Heavy Duty Cast Iron
• Series Family: WCS
• Shaft Material: Threaded Stainless Steel
• Drain Port Size: 1/2 in
• Max Head: 56 ft
• Number of Pumps: 2
• Volute Material: Cast Iron
• Impeller Material: Bronze
• Intake Connection: 2 in NPT
• Number of Intakes: 1
• Body Gasket Material: Carbon, Ceramic
• Discharge Connection: 3/4 in NPT
• NPT Drain Port: 1/2 in
• Pump Activation Type: Float Switch
• Compatible Media Type: Water
• Pump Housing Material: Cast Iron
• Motor Enclosure: Open Drip-Proof
• Pump Mounting Position: Vertical
• Intake Connection Style: NPT
• NPT Overflow Port: 2 in
• Overflow Port Pipe Size: 2 in
• NPT Pump Discharge: 3/4 in
• NPT Vent Line Port: 1 1/4 in
• Vent Line Port Pipe Size: 1 1/4 in
• Max Media Temperature: 200 Degrees F
• Discharge Connection Style: NPT
• NPT Low Return Inlet: 2 in
• Compatible Intake Pipe Size: 2 in
• For Use With Potable Systems: No
• Flow Rate @ 30 Ft. Head: 33 GPM
• Flow Rate @ 35 Ft. Head: 30 GPM
• Flow Rate @ 40 Ft. Head: 30 GPM
• Flow Rate @ 45 Ft. Head: 21 GPM
• Flow Rate @ 50 Ft. Head: 12 GPM
• Compatible Discharge Pipe Size: 3/4 in
• Tank Orientation: Horizontal
• Discharge Gender: Female
• Inlet Gender: Female
