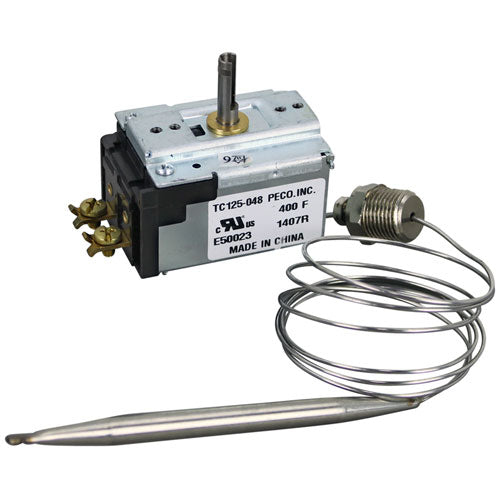

THERMOSTAT TC125 for Hobart 419999-00001

Product Description

This item for Hobart 419999-00001 is a thermostat designed to manage temperature in several types of frying equipment. It is ideal for use in Vulcan fryers among others. This thermostat features a range of temperature control from two hundred degrees to four hundred degrees Fahrenheit.

• Thermostat Type: TC125
• Bulb Size: Five sixteenths inches by five inches
• Capillary Length: Forty-eight inches

Product Highlights

This thermostat is suitable for a range of Vulcan fryer models. It includes a three-eighths inch MPT stuff box and requires a pointer knob dial of model number twenty-two-one-three-fifteen.

Product Information

Standard Information

• Weight: 0.55
• Dimensions: 6.5 x 2 x 4.5

Technical Specifications

• Temperature Range: 200-400
• Bulb Dimensions: 5/16 x 5
• Capillary Length: 48
• Applicable Models: 1GR45M, 1GR65M, 1GR85M, EF3, EF4, EF5, GR35, GR35F, GR45, GR45F, GR65, GR65F, GR85, GR85F, GRC35F, GRC45F, GRC65F, GRC85F, GRD35F, GRD45F, GRD65F, GRD85F, GRS35F, GRS45F, GRS65F, GRS85F
