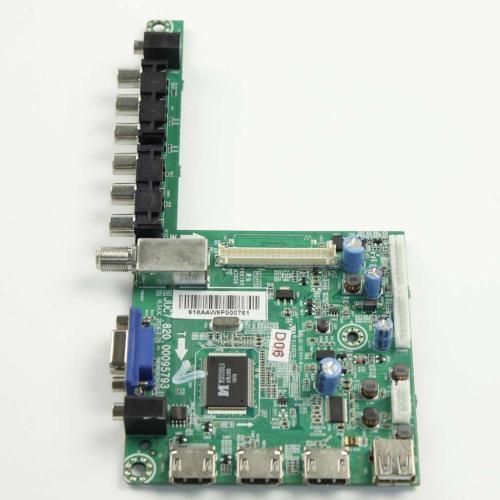

Hitachi 850100866 Main Control Board

Product Description

The HITACHI 850100866 is a main control board designed to serve as the central processing and switching component in compatible Hitachi electronic systems. The main board manages communication between subsystems, controls operational logic, and routes power and signal pathways throughout the unit. This type of component is typically serviced by qualified electronics or HVAC technicians, depending on the host system. It is an OEM-style replacement part intended for direct installation in place of a failed or damaged original board.

Main control boards of this type are used in residential and light commercial applications where Hitachi equipment is installed. The board governs core system functions and is typically replaced when diagnostic codes, system lockouts, or component-level failures point to control board malfunction. Installation is performed during scheduled service or emergency repair calls.

Key Features

• OEM-style main control board for direct replacement of failed original units
• Manages central logic, switching, and subsystem communication
• Designed for compatibility with Hitachi-branded equipment
• Supports reliable restoration of system operation following board-level failure

Compatibility

Designed as an OEM-style replacement main control board for compatible Hitachi electronic or HVAC systems.

Installation Notes

Main control board replacement should be performed by a licensed technician with appropriate training for the host system type. Before removing or installing the board, disconnect all power to the unit at the breaker or disconnect switch and allow capacitors to discharge fully. Handle the board by its edges to avoid electrostatic discharge damage to sensitive components. Refer to the equipment service manual for wiring diagrams and mounting procedures specific to the host unit.

Technical Specifications

• Component Type: Main Control Board

Standard Information

• Brand: HITACHI
• Manufacturer Part Number: 850100866
