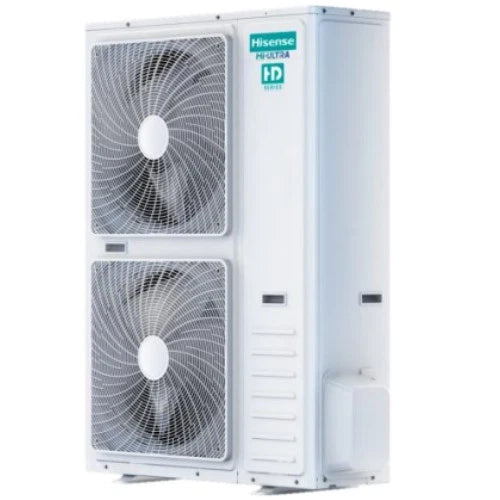

Hisense AUWR-48U3SP2 Hi-Ultra 4 Ton Heat Pump Condensing Unit 48,000 BTUs/hr

Product Description

The HISENSE AUWR-48U3SP2 Hi-Ultra 4-ton heat pump condensing unit features dual fans and vertical vent. With a BTU cooling rating of 48,000 and a SEER rating of 17.5, this unit is designed for outdoor mounting. It operates on 208-230V and includes a twin rotary compressor.

• 48,000 BTU cooling rating
• SEER rating of 17.5
• Operates on 208-230V

Product Highlights

This Hisense heat pump is an efficient outdoor unit with a twin rotary compressor and a 4-ton capacity.

Product Information

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: AUWR-48U3SP2

Technical Specifications

• Number of Cool Speeds: Variable
• Timer Control: 24V Thermostat
• Number of Fan Motors: 1
• Compressor Type: Twin Rotary Compressors
• System Configuration: Horizontal
• Blower Motor Speed: Variable Speed
• Power Phase: 1 Phase
• Brand: Hisense
• Type: Air Conditioner and Heat Pump
• Tonnage: 4
• BTU Cooling Rating: 48,000
• Capacity: 48,000 BTUh
• Energy Efficiency Ratio (EER): 10.5
• Voltage: 208-230V
• Model: AUWR-48U3SP2
• Features: Outdoor
• SEER Rating: 17.5
• Mounting Location: Outdoors
• Operating Sound Rating: 62-69 dB
• Nominal Capacity: 4 Ton
• SEER2: 17.5 Btu/h/w
• Power Source: 208-230/1/60
• Flow Rate: 1588 CFM
• EER Rating: 10.1
• Refrigerant Type: R410a
• Series: Hi-ULRA HD
• Suction Line Size: 3/4 in.
• Drive Type: Single
• Sound Level: 59 dB(A)
• Hspf (region Iv): 10
• Hspf (region V): 8.7
• Rated Heating Capacity (btu/hour): 48000
• Ahri / Verification Reference: 000: Central Ducted System
• Product Group: 206903533
• Ahri Classification: CcASHP
• Series Name/product Line (if Applicable): HRCU-A-CB
• Coefficient Of Performance (cop) At -15 C (5 F) (at Maximum Capacity): 1.9
• Capacity Maintenance % (max -15c/5f Rated 8.3c/47f): 71
• Indoor Type/ducting Configuration: Centrally Ducted System
• Hspf2 (region Iv): 8.5
• Hspf2 (region V): 8.5
• Seer2: 17.5
• Phase: Single-phase
• Small Duct High Velocity: No
• Cooling Capacity (kw): 14.07
• Cooling Capacity (btu/h): 48000
• Heating Capacity (kw): 14.07
• Heating Capacity (btu/h): 48000
• Off Mode Power (w): 22
• Seer: 18
• Eer: 10.2
• Hspf Region 5: 8.696
• Hspf Region 4: 10
• Indoor Unit Individual Model Number: AUH-48UX3SEH2
• Brand Name s: HISENSE
• Product Group Code Description: Single-split-system Heat Pumps
• Cooling Capacity Btu h: 48000.0
• Heating Capacity Btu h: 48000.0
• Seasonal Energy Efficiency Ratio SEER in Btu W h: 18.0
• Heating Seasonal Performance Factor HSPF in Btu W h: 10.0
• Average Off Mode Power Consumption Watts: 22.0
• Energy Efficiency Ratio EER in Btu W h: 10.2
• Is the Efficiency Based on a System Tested without an Air Mover i e Coil Only System or a System Tested with an Air Mover such as a Furnace i e a Blower Coil System: Blower-Coil
• Is the Certification for this Basic Model Based on a Waiver of DOE s Test Procedure Requirements: No
• Is the Certification based upon any Exception Relief from an Applicable Standard by DOE s Office of Hearing and Appeals: No
• Cost Category: Cooling, Heating
• Nearest Standardized DHR: 50000.0
