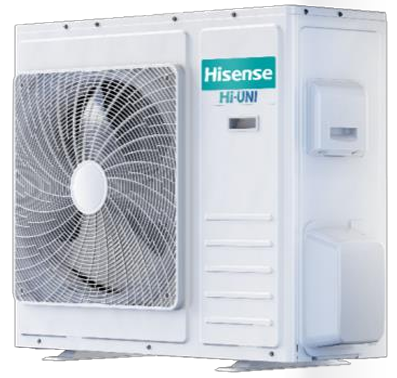

Hisense AUW-36U3ST1 36000 Btu Mini Split Outdoor Unit

Product Description

The HISENSE AUW-36U3ST1 is a single-zone mini split outdoor condensing unit rated at 36,000 BTU/h with 230-volt operation. It is designed to provide both heating and cooling in a split-system configuration, pairing with a compatible indoor air handler to deliver year-round climate control. Licensed HVAC technicians install this unit in residential and light commercial applications where a ductless solution is required. The outdoor unit houses the compressor and condenser coil, handling the refrigerant-side heat exchange for the system.

This unit is suited for single-zone ductless installations in residential spaces and light commercial settings. At 36,000 BTU/h, it is sized for larger rooms, open floor plans, server rooms, or supplemental conditioning in spaces that cannot be served by a central ducted system. It operates on a 230-volt supply and is intended for use as a matched outdoor unit in a single-zone mini split system.

Key Features

• 36,000 BTU/h capacity for single-zone heating and cooling coverage
• 230-volt operation for standard residential and light commercial electrical service
• Heat and cool functionality provides year-round climate control
• Single-zone configuration for dedicated room or area conditioning
• Outdoor condensing unit design houses compressor and condenser coil assembly

Compatibility

Designed as an OEM-style replacement or new-installation outdoor unit for single-zone ductless mini split systems requiring a 36,000 BTU/h 230-volt outdoor condensing unit.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer instructions. Disconnect and lock out all electrical power before servicing or connecting refrigerant lines. The unit requires proper refrigerant line sizing, evacuation, and charging procedures following EPA Section 608 requirements. Ensure the outdoor unit is mounted on a level pad or bracket with adequate clearance for airflow and service access.

Technical Specifications

• Capacity: 36,000 BTU/h
• Voltage: 230 volts
• System Type: Single Zone
• Operation: Heat and Cool
• Unit Type: Outdoor Condensing Unit
• Configuration: Ductless Mini Split

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: AUW-36U3ST1
