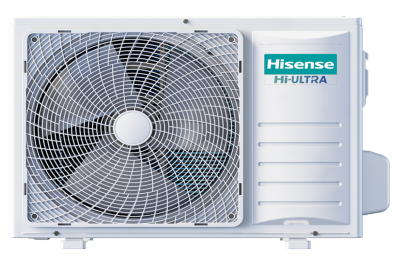

Hisense AST-24UW3SDBDH01G 24000 Btu Outdoor Unit 230V

Product Description

The HISENSE AST-24UW3SDBDH01G is a 24,000 BTU/h wall-mounted outdoor condenser unit designed for ductless mini-split heat pump systems operating on 230-volt power. Rated at SEER 23, this unit delivers both heating and cooling in a single package, making it suitable for year-round climate control. It pairs with a compatible indoor air handler to form a complete ductless system. Installation and commissioning are typically performed by licensed HVAC technicians familiar with inverter-driven mini-split systems.

This outdoor unit is intended for residential and light-commercial ductless applications where wall-mounted installation is required. The heat-cool configuration supports both heating and cooling modes, eliminating the need for separate heating equipment in many climates. It is designed for pairing with a matched indoor evaporator unit as part of a complete mini-split system installation.

Key Features

• 24,000 BTU/h capacity for heating and cooling
• SEER 23 efficiency rating for high-efficiency operation
• 230-volt power supply compatibility
• Heat-cool operation for year-round climate control
• Wall-mounted outdoor unit configuration

Compatibility

Designed as an OEM-style outdoor condenser unit for use in ductless mini-split heat pump systems requiring a 24,000 BTU/h wall-mounted outdoor component rated at 230 volts.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect all power at the service panel before making any electrical connections. Refrigerant handling requires EPA Section 608 certification. Ensure the mounting surface and bracket are rated to support the weight of the outdoor unit before installation.

Technical Specifications

• Capacity: 24,000 BTU/h
• Voltage: 230 volts
• SEER Rating: 23
• Operation Mode: Heat and Cool
• Unit Type: Wall Mounted Outdoor Unit

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: AST-24UW3SDBDH01G
