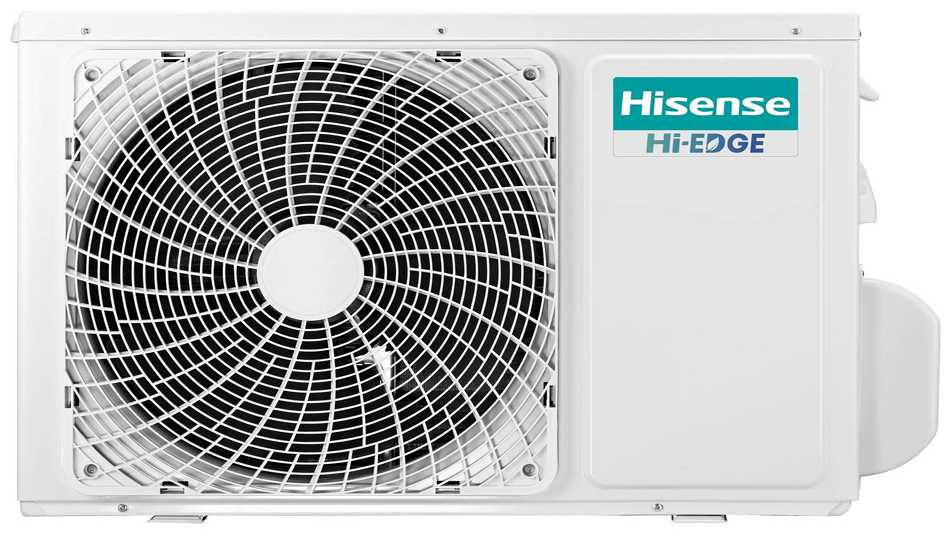

Hisense AS-09UW3SVDDLG Mini Split Outdoor Unit 9000 Btu

Product Description

The HISENSE AS-09UW3SVDDLG is a 9,000 BTU mini split outdoor condensing unit rated at SEER 18 and designed for 230-volt single-phase operation. It functions as the outdoor half of a ductless heat pump system, providing both cooling and heating through reverse-cycle refrigerant operation. Licensed HVAC technicians install this unit as part of a complete ductless mini split system, pairing it with a compatible indoor air handler. Its SEER 18 efficiency rating meets or exceeds current regional energy efficiency requirements for residential and light commercial applications.

This outdoor unit is suited for residential and light commercial ductless installations where a single-zone heat cool solution is required. Typical applications include room additions, garages, server rooms, sunrooms, and other spaces where extending existing ductwork is impractical. The unit handles both heating and cooling from a single outdoor installation, reducing the need for separate heating equipment in mild to moderate climates.

Key Features

• 9,000 BTU capacity supports single-zone heating and cooling
• SEER 18 efficiency rating for energy-conscious installations
• 230-volt operation compatible with standard single-phase residential electrical service
• Reverse-cycle heat pump operation provides both heating and cooling modes
• Outdoor condensing unit design for exterior wall or ground-mount installation

Compatibility

Designed as an OEM-style outdoor condensing unit for use with a compatible HISENSE ductless mini split indoor air handler in a matched single-zone system.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA 608 refrigerant handling certification. Disconnect and lock out all electrical power before making any electrical or refrigerant connections. Follow local mechanical and electrical codes, including NEC requirements for outdoor disconnect and circuit protection. Do not energize the unit before the refrigerant circuit is fully evacuated and charged per system specifications.

Technical Specifications

• Capacity: 9,000 BTU/h
• Voltage: 230 volts
• SEER Rating: 18
• System Type: Heat Cool (Reverse-Cycle Heat Pump)
• Unit Type: Outdoor Condensing Unit
• UPC: 810088363290

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: AS-09UW3SVDDLG
