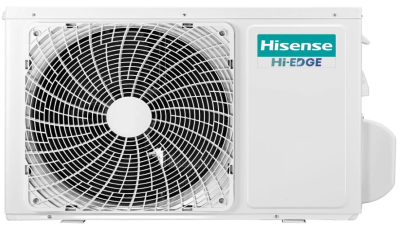

Hisense AS-09UW1SVDDL00-O 9000 Btu 115V Seer 18 Outdoor Unit

Product Description

The HISENSE AS-09UW1SVDDL00-O is a wall-mounted mini-split outdoor condensing unit rated at 9,000 BTU/h with a SEER rating of 18. Operating on 115V single-phase power, this unit supports both heating and cooling modes, making it suitable for year-round comfort in residential and light-commercial applications. The inverter-driven compressor delivers variable-speed operation, improving efficiency under partial-load conditions. Licensed HVAC technicians typically handle installation and refrigerant connections in compliance with EPA Section 608 regulations and local mechanical codes.

This outdoor unit is designed for use in ductless mini-split heat pump systems. It is well-suited for single-zone installations in residential spaces such as bedrooms, living rooms, home offices, and additions where extending existing ductwork is impractical. The 9,000 BTU/h capacity targets smaller zones, typically up to approximately 400 square feet depending on local climate and building envelope conditions. It pairs with a compatible HISENSE indoor air handler to form a complete heat-cool system.

Key Features

• 9,000 BTU/h heating and cooling capacity for single-zone applications
• SEER 18 efficiency rating reduces operating costs compared to lower-efficiency units
• 115V single-phase operation suitable for standard residential electrical service
• Heat pump functionality provides both heating and cooling from one outdoor unit
• Wall-mounted outdoor condenser configuration for ground-level or elevated installation

Compatibility

Designed as an OEM-style outdoor condensing unit for HISENSE ductless mini-split heat pump systems. Specific compatible indoor air handler models were not provided in the available product data; consult HISENSE documentation to confirm matched indoor unit pairings before ordering.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician. Shut off all electrical power at the disconnect before making any wiring or refrigerant connections. The outdoor unit requires a dedicated circuit sized to local NEC requirements for the stated voltage and amperage. Do not operate the system until refrigerant line sets are properly evacuated, leak-tested, and charged per the manufacturer service documentation.

Technical Specifications

• Capacity: 9,000 BTU/h
• Voltage: 115V
• SEER: 18
• Operation Mode: Heat Cool (Heat Pump)
• Unit Type: Wall Mounted Outdoor Condenser

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: AS-09UW1SVDDL00-O
