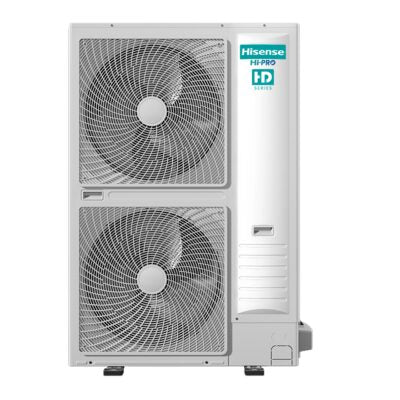

Hisense AOH-60U3R25E Hi-ULTRA HD 5 Ton 16 SEER2 Heat Pump Condenser

Product Description

The Hisense AOH-60U3R25E is a 5-Ton 16 SEER2 heat pump outdoor condenser with R-32 refrigerant. This variable speed inverter condenser pairs with a compatible Hisense air handler for whole-home ducted heating and cooling. The AOH-60U3R25E outdoor condenser delivers 54,000 BTU cooling capacity with 8.5 EER2 efficiency and 8 HSPF2 heating performance. Designed for split system installations.

• Variable speed inverter compressor for precise temperature control
• R-32 low-GWP refrigerant (A2L classification, future-compliant)
• 16 SEER2 / 8.5 EER2 / 8 HSPF2 efficiency ratings

Product Highlights

Features advanced inverter variable speed technology with R-32 next-generation refrigerant for reliable whole-home heating and cooling.

Product Information

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: AOH-60U3R25E
• Country of Origin: CHINA

Technical Specifications

• Model Number: AOH-60U3R25E
• Tonnage: 5 Ton
• Cooling Capacity: 54,000 BTU
• SEER2 Rating: 16
• EER2 Rating: 8.5
• HSPF2 Rating: 8
• Refrigerant: R-32 (A2L)
• Line Set: 3/8″, 3/4″
• Voltage: 208/230V Single Phase
• Configuration: Split System
• Compressor Type: Variable Speed Inverter
• BtuH Heating Input: 55000
• COP: 3.2
• Liquid Conn.: 3/8"
• Max. Fuse Size: 50
• Min. Circuit Amps: 33
• OEM TXV: EEV
• Phase: Single
• Suction Fitting: 3/4"
• Volts: 208-230
