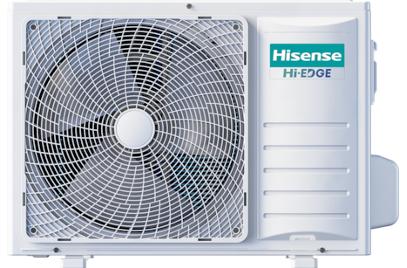

Hisense ao-09u3r25e 9K Outdoor Heat Pump Single-zone Mini-split

Product Description

The HISENSE ao-09u3r25e is a single-zone outdoor heat pump condensing unit designed for ductless mini-split systems. Rated at 9,000 BTU/h for both cooling and heating, it operates on 208/230V power and uses R-32 refrigerant. With a SEER2 rating of 22.5 and an HSPF2 of 9.0, it delivers strong efficiency for residential and light-commercial applications. The unit draws 3.4 amps during cooling and is protected by a maximum 15-amp fuse. HVAC technicians pair this outdoor condenser with a compatible single-zone indoor air handler to complete the system. Its compact cabinet measures 28.125 inches wide, 21.25 inches tall, and 9.5 inches deep, making it suitable for installations with limited clearance.

This outdoor unit is intended for single-zone ductless mini-split installations in residential and small commercial settings. It supports cooling operation across a wide ambient range of 5 to 118 degrees F and heating down to -5 degrees F, making it viable in cold-climate applications. The unit connects to one indoor air handler with a nominal capacity of 9,000 BTU/h. Liquid line connection is 0.25 inches and suction fitting is 0.375 inches, with a maximum total pipe run of 65.59 feet. A licensed HVAC technician should perform installation and refrigerant handling in accordance with local codes and EPA Section 608 requirements.

Key Features

• 9,000 BTU/h nominal cooling and heating capacity with a max cooling and heating capacity of 10,000 BTU/h
• SEER2 of 22.5 and EER2 of 12.5 for high-efficiency operation
• HSPF2 of 9.0 supports cold-climate heating down to -5 degrees F ambient
• R-32 refrigerant with 0.25-inch liquid line and 0.375-inch suction fitting connections
• Low sound pressure level of 53 dBA during both cooling and heating modes
• Wide operating range: 5 to 118 degrees F cooling, -5 to 75 degrees F heating

Compatibility

Designed as an OEM single-zone outdoor condensing unit compatible with one connectable indoor unit at a nominal capacity of 9,000 BTU/h within the HISENSE Hi-Edge ductless mini-split system family.

Installation Notes

Installation must be performed by a licensed HVAC technician certified for R-32 refrigerant handling under EPA Section 608 regulations. Disconnect and lock out all electrical power before servicing or making refrigerant connections. Follow NEC requirements for disconnect sizing and wire gauge based on the 208/230V supply and maximum fuse size of 15 amps. Do not exceed the maximum total pipe length of 65.59 feet between the outdoor unit and the indoor air handler.

Technical Specifications

• Nominal Capacity: 9,000 BTU/h
• Min. Cooling Capacity: 3,600 BTU/h
• Max. Cooling Capacity: 10,000 BTU/h
• Min. Heating Capacity: 3,600 BTU/h
• Max. Heating Capacity: 10,000 BTU/h
• SEER2: 22.5
• EER2: 12.5
• HSPF2: 9.0
• Voltage: 208/230V
• Amps Cooling: 3.4
• Max. Fuse Size: 15 amps
• Refrigerant: R-32
• Liquid Connection: 0.25 inches
• Suction Fitting: 0.375 inches
• Max. Total Pipe Length: 65.59 feet
• Cooling Temperature Range: 5 to 118 degrees F
• Heating Temperature Range: -5 to 75 degrees F
• Sound Pressure (Cooling): 53 dBA
• Sound Pressure (Heating): 53 dBA
• CFM High: 1,059
• Width: 28.125 inches
• Height: 21.25 inches
• Depth: 9.5 inches
• Weight: 50.7 pounds
• Connectable Indoor Units: 1

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: ao-09u3r25e
