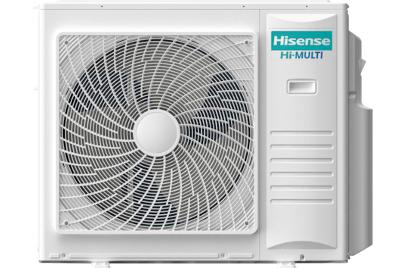

Hisense amo4-36u3t25u 36K Multi-zone Outdoor Heat Pump

Product Description

The HISENSE amo4-36u3t25u is a 36,000 BTU/h multi-zone outdoor heat pump unit designed for ductless mini-split systems operating on 208/230 volts with R-454B refrigerant. It supports between one and four connected indoor units and delivers a nominal cooling and heating capacity of 36,000 BTU/h. Efficiency ratings reach SEER2 22 in a non-ducted configuration and HSPF2 10, making this unit a strong performer in residential and light commercial applications. The unit draws 32 amps at full cooling load and carries a maximum fuse size of 50 amps. Licensed HVAC technicians handle procurement, installation, and commissioning of this equipment.

This outdoor condensing unit fits multi-zone ductless mini-split installations where up to four indoor heads are required. Connectable indoor unit capacity ranges from 28,800 to 46,800 BTU/h, providing flexibility across varying room-load scenarios. The operating temperature range extends from 5 degrees F to 125 degrees F in cooling mode and from -13 degrees F to 75 degrees F in heating mode, making it suitable for climates with significant seasonal temperature swings. Typical installations include residential new construction, retrofits without existing ductwork, and light commercial multi-room applications where independent zone control is required.

Key Features

• 36,000 BTU/h nominal cooling and heating capacity with modulating range from 9,000 to 46,800 BTU/h cooling and 9,000 to 54,000 BTU/h heating
• SEER2 up to 22 (non-ducted), SEER2 19 (ducted), and SEER2 20.5 (mixed configuration)
• HSPF2 up to 10 (non-ducted) for heating season efficiency
• Supports 1 to 4 indoor units with connectable capacity between 28,800 and 46,800 BTU/h
• Operates on R-454B low-GWP refrigerant
• Low ambient cooling operation down to 5 degrees F and heating down to -13 degrees F
• Sound pressure level of 64 dBA in both cooling and heating modes

Compatibility

Designed for use as the outdoor condensing unit in a HISENSE multi-zone ductless mini-split system. Compatible with 1 to 4 HISENSE indoor units with a total combined connectable capacity between 28,800 and 46,800 BTU/h. Refrigerant line connections require a 1/4-inch liquid line and a 3/8-inch suction line. Maximum individual pipe run is 82 feet and maximum total pipe length across all branches is 230 feet.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle R-454B refrigerant under applicable EPA Section 608 requirements. Disconnect and lock out all electrical power before making any connections to the unit. Refrigerant line sizing, flaring, and leak testing must comply with the manufacturer installation instructions and local mechanical codes. Do not operate the unit outside the specified voltage range or exceed the maximum fuse size of 50 amps.

Technical Specifications

• Nominal Capacity: 36,000 BTU/h
• Cooling Capacity Range: 9,000 to 46,800 BTU/h
• Heating Capacity Range: 9,000 to 54,000 BTU/h
• SEER2 (Non-Ducted): 22.00
• SEER2 (Ducted): 19.00
• SEER2 (Mixed): 20.50
• EER2: 12.85
• HSPF2 (Non-Ducted): 10.00
• HSPF2 (Ducted): 9.00
• HSPF2 (Mixed): 9.50
• Voltage: 208-230V
• Amps Cooling: 32 amps
• Max Fuse Size: 50 amps
• CFM High: 3,357 CFM
• Cooling Temperature Range: 5 to 125 degrees F
• Heating Temperature Range: -13 to 75 degrees F
• Sound Pressure (Cooling): 64 dBA
• Sound Pressure (Heating): 64 dBA
• Refrigerant: R-454B
• Liquid Line Connection: 1/4 inches
• Suction Line Connection: 3/8 inches
• Max Individual Pipe Length: 82 feet
• Max Total Pipe Length: 230 feet
• Connectable Indoor Units: 1 to 4
• Min Connectable Capacity: 28,800 BTU/h
• Max Connectable Capacity: 46,800 BTU/h
• Zone Type: Multi-Zone
• Unit Type: Outdoor
• Width: 38.375 inches
• Height: 32.875 inches
• Depth: 14.125 inches
• Weight: 169.8 pounds
• Shipping Weight: 191.8 pounds
• Shipping Dimensions: 43.75 inches L x 18.13 inches W x 37.75 inches H

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: amo4-36u3t25u
