Hisense AHU-24U3T24 Indoor Heat Pump 24000 Btu 20 Seer

Product Description

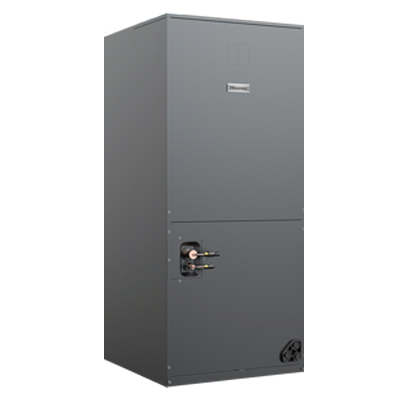

The HISENSE AHU-24U3T24 is a 24,000 BTU indoor heat pump air handler designed for high-efficiency split-system installations. Operating on 230 volts and rated at 20 SEER, this unit uses R-454B refrigerant, a lower-GWP alternative to R-410A that meets current environmental standards. It is part of the Hi Pro HD product line and serves as the indoor component of a matched heat pump system. Licensed HVAC technicians install this unit in residential and light commercial applications where both heating and cooling are required from a single system.

This air handler is suited for residential and light commercial split-system heat pump configurations where high-efficiency performance and R-454B refrigerant compatibility are required. The 20 SEER rating supports compliance with current minimum efficiency regulations in applicable regions. It is intended for use as the indoor section paired with a compatible HISENSE outdoor condensing unit. The AUH-2424 designation referenced in the product data may indicate a matched or related system configuration.

Key Features

• 24,000 BTU capacity for medium-sized residential or light commercial spaces
• 20 SEER efficiency rating meets current high-efficiency standards
• R-454B refrigerant compatibility — lower global warming potential than R-410A
• 230-volt operation for standard split-system electrical supply
• Hi Pro HD series construction for demanding installation environments

Compatibility

Designed as an OEM indoor air handler for HISENSE Hi Pro HD series split heat pump systems. The input references a related system designation of AUH-2424. Verify outdoor unit compatibility with HISENSE product documentation before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA 608 refrigerant handling certification, as this unit uses R-454B refrigerant. Disconnect and lock out all electrical power before servicing or connecting the unit. Follow NEC requirements for 230-volt circuit sizing, disconnect placement, and wiring methods. Refer to the manufacturer installation manual for refrigerant line sizing, evacuation procedures, and mounting clearances specific to this model.

Technical Specifications

• Capacity: 24,000 BTU/h
• Voltage: 230 volts
• SEER Rating: 20 SEER
• Refrigerant Type: R-454B
• UPC: 81008836949

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: AHU-24U3T24
