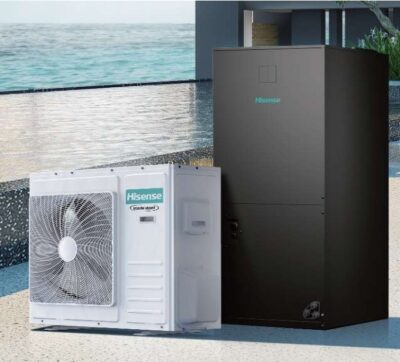

Hisense AH-60U3R25E Air Handler EDGE Series Multi Position, Variable Speed, TXV, 208-230V, R-32

Product Description

The HISENSE AH-60U3R25E air handler EDGE series is a multi-position, variable speed unit with TXV, designed for 208-230V and R-32 refrigerant. It features anti-corrosion with aluminum coil and a factory-installed A2L leakage sensor. It connects to all 24V thermostats or Hisense Smart Thermostat with no adaptor needed. Heat kits are sold separately.

• Anti-corrosion with aluminum coil
• Up to 0.8" WC Maximum ESP
• Factory installed A2L leakage sensor

Product Highlights

This air handler features a variable-speed ECM blower motor and factory-installed TXV for cooling and heat pump applications.

Product Information

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: AH-60U3R25E
• Country of Origin: CHINA

Technical Specifications

• Air Handler Type: Single Piece
• CFM High @ 0.3 ESP: 1827
• Configuration: Multi-Position
• Liquid Conn.: 3/8"
• Max. Fuse Size: 15
• Min. Circuit Amps: 6.8
• Motor Type: ECM Variable Speed
• Nom. CFM: 1750
• Nom. Tons: 5
• Nom. kW: 15.8
• Suction Fitting: 3/4"
• TXV Included: Yes
• Volts: 208-230
• Capacity: 5 Ton
• Type: Variable speed air handler (condenser sold separately)
• Motor: Variable speed ECM
• Coil: Aluminum fin copper tube
• Model Number: AH-60U3R25E
• Tonnage: 5 Ton
• Refrigerant Compatibility: R-32
• Voltage: 208/230V Single Phase
• System Type: Split System
• Refrigerant: R-32
• Airflow: Multi-Position
• Product Type: Air Handler
