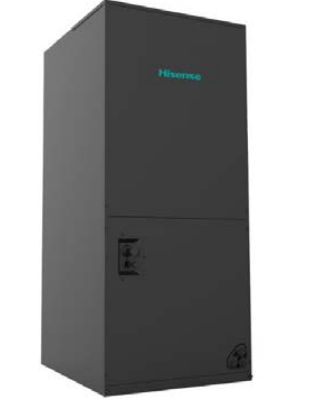

Hisense AH-48U3R25E Hi-ULTRA HD 4 Ton Air Handler

Product Description

The Hisense AH-48U3R25E is a 4-Ton variable speed air handler for ducted HVAC systems. Pairs with Hisense Hi-ULTRA HD heat pump condensers for a complete heating and cooling system. The ECM blower motor ensures efficient, quiet operation and precise airflow control. Multi-position design supports upflow, downflow, and horizontal installation.

• ECM variable speed blower motor for quiet, efficient operation
• Multi-position design: upflow, downflow, or horizontal installation
• Factory-matched for Hisense R-32 inverter heat pumps

Product Highlights

This Hisense 4-ton air handler features an ECM blower motor for efficient, quiet operation and precise airflow control. Designed for split system installations and is factory-matched with Hisense R-32 heat pumps for optimal performance.

Product Information

Standard Information

• Brand: HISENSE
• Manufacturer Part Number: AH-48U3R25E
• Country of Origin: CHINA

Technical Specifications

• Model Number: AH-48U3R25E
• Tonnage: 4 Ton
• Motor Type: ECM Variable Speed
• Configuration: Multi-Position (Upflow/Downflow/Horizontal)
• Refrigerant Compatibility: R-32
• Voltage: 208/230V Single Phase
• System Type: Split System
• Brand: Hisense
• series: Hi-ULTRA HD
• Refrigerant: R-32
• Airflow: Multi-Position
• Product Type: Air Handler
• BtuH Cooling: 48,000
• BtuH Heating Input: 4800
• COP: 3.74
• EER2: 9
• HSPF2: 8
• Liquid Conn.: 3/8"
• Nom. Tons: 4
• OEM TXV: EEV
• Phase: Single
• Suction Fitting: 3/4"
• Volts: 208-230
• Capacity: 4 Ton
• Efficiency: 16 SEER2
• Components: Matched condenser + variable speed air handler
• Type: Complete ducted heat pump system
• Compressor: Variable speed inverter
• Cooling Capacity: 48,000 BTU
• Recommended Home Size: 1,900-2,300 sq ft
• tonnage: 4 Ton
• BTU/H Cooling: 48,000
