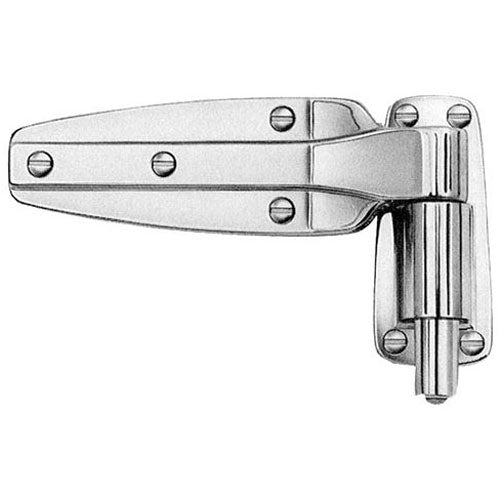

Hinge 10.25 inches x 6.5 inches 1248-000016 for Kason 1248-000016

Product Description

This item for Kason 1248-000016 is a hinge designed for durability and ease of usage. This hinge features a reversible spring-assisted cam rise mechanism for smooth operation.

• Dimensions are ten and one-quarter inches long by six and one-half inches wide.
• Allows for easy installation and operation with reversible functions.
• Constructed with die-cast zinc and polished chrome plating for long-lasting performance.

Product Highlights

Ideal for various applications, this hinge ensures reliable functionality and versatility.

Product Information

Standard Information

• MPN: 1248-000016

Technical Specifications

• Dim Weight: 4.9
• Weight: 3.5
• Length: 10.25 inches
• Width: 6.5 inches
• Height: 0.25 inches
• Product Notes: Reversible spring-assisted cam rise hinge; ten and one-eighth inch long outer diameter by five and twenty-one thirty-seconds wide; to reverse, remove cap and push out cam, replace cam on other side of strap and replace cap; strap has a hex hole that accepts the stem from the flange; number 1245 is cast on strap; number 1248 is cast on flange; one and one-eighth inch offset; constructed from die-cast zinc with polished chrome plating.
