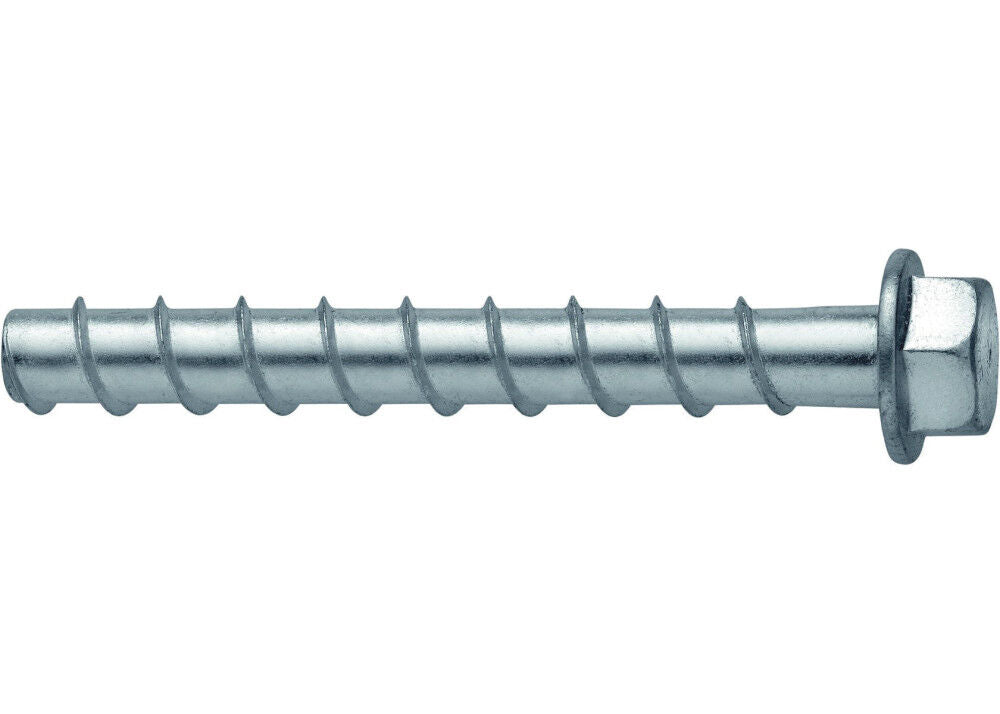

HILTI 418040 Ultimate Performance Screw Anchor 1/4 in Dia 2-1/2 in OAL

Product Description

The HILTI 418040 ultimate performance screw anchor features a 1/4 inch diameter and an overall length of 2-1/2 inches. Made from carbon steel with a zinc plated finish, this anchor is suitable for internally threaded head drives. It is designed for minimum embedment depths ranging from 1-5/8 to 2-1/2 inches. The anchor provides shear strength between 180 to 415 pounds and tensile strength ranging from 205 to 390 pounds. Each package contains 100 anchors.

• Optimized for quick installation compared to traditional anchors.
• Requires less drilling, enhancing ease of use for overhead tasks.
• Thread design maximizes holding capabilities.

Product Highlights

Product Information

Standard Information

• Brand: HILTI
• Product Condition: New

Technical Specifications

• Diameter: 1/4 inch
• Finish: Zinc Plated
• Head Drive Type: Hex Washer
• Material: Carbon Steel
• Minimum Embedment Depth: 1-5/8 to 2-1/2 inches
• Overall Length: 2-1/2 inches
• Shear Strength: 180 to 415 pounds
• Tensile Strength: 205 to 390 pounds
• Drive Design: Hex
• Fastener Head Style: Hex
• Fastener Material: Carbon Steel
• Package Contents: 100/Box Screws Anchor
• Restrictions: CA Prop 65
• Self-Drilling: No
• Self-Tapping: No
• Size: 1/4 x 2-1/2 Callout Size
• MFG Part #: 418040
• Warranty Type: No Manufacturer's Warranty
