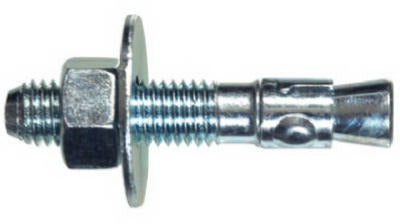

Hillman Fasteners 371950 Wedge Anchor 5/8x6 in 10 Pack

Product Description

The HILLMAN FASTENERS 371950 is a 5/8 x 6 inch power stud wedge anchor designed for anchoring structural and mechanical loads into hardened concrete. Manufactured from carbon steel with a zinc finish for corrosion resistance, this anchor delivers an ultimate tension load of 8,365 pounds and an ultimate shear load of 11,895 pounds when set in 4,000 psi concrete. The 4-3/8 inch thread length provides adequate engagement for standard hardware and nut configurations. Sold in a 10-pack, these anchors are a go-to fastener for licensed contractors and tradespeople working on concrete attachment applications in commercial and industrial environments.

Wedge anchors of this size and load rating are commonly used in structural attachment scenarios including equipment pads, pipe supports, electrical panel bases, conduit strut mounting, and mechanical equipment anchoring to concrete slabs or walls. The minimum embedment depth of 2-3/4 inches must be achieved to develop the rated load values. This anchor is suited for both new construction and retrofit installations where a permanent, high-strength concrete fastener is required.

Key Features

• 5/8 x 6 inch wedge anchor with 4-3/8 inch thread length
• Carbon steel construction with zinc finish for corrosion resistance
• Ultimate tension load of 8,365 pounds in 4,000 psi concrete
• Ultimate shear load of 11,895 pounds in 4,000 psi concrete
• Minimum embedment of 2-3/4 inches required to achieve rated loads
• Sold in a 10-pack for multi-anchor applications

Compatibility

Designed for use in hardened concrete applications requiring a 5/8 inch diameter wedge-style mechanical anchor. Suitable for structural, mechanical, plumbing, and electrical trade applications where a permanent concrete fastener is specified.

Installation Notes

Installation requires a hammer drill and a 5/8 inch carbide-tipped masonry bit to bore the hole to the proper depth and diameter. Hole depth must meet or exceed the minimum embedment requirement before the anchor is set. Torque the nut to the fastener manufacturer specification using a calibrated torque wrench. Consult applicable building codes and the project engineer of record for allowable load values, edge distance requirements, and anchor spacing when used in structural applications.
