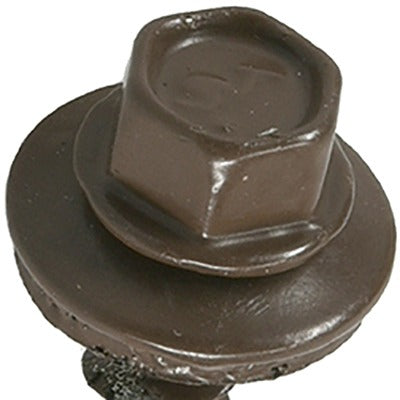

Hillman Fasteners 117916 Roofing Screw 10x1.5 Brown Metal to Wood

Product Description

The HILLMAN FASTENERS 117916 is a self-drilling metal-to-wood roofing screw engineered for fastening steel roofing panels to structural wood substrates. Sized at number 10 by 1.5 inches with a brown powder-coat finish, this screw is built for post frame construction and residential roofing assemblies. The hex washer head (HWH) features a V-neck design that adds structural strength and resists head pop-out under load. Corrosion resistance is delivered through 2.5 mils of powder coating with a chromate sealer applied over a painted head. Each box contains 5 screws and includes a Pro-Stick driver bit.

This screw is designed for use wherever steel roofing sheet must be anchored to wood purlins in post frame and agricultural construction, or to plywood and OSB decking in residential roofing applications. The EPDM rubber gasket is vulcanized directly to a steel washer, forming a watertight seal that holds integrity even when the screw is driven slightly off-angle. The thread profile transitions from fine to coarse, which generates superior holding strength across different wood densities and substrates. The micro-bit drill point minimizes metal shavings that could contaminate or damage the rubber seal during installation.

Key Features

• Self-drilling tip starts fast and drives straight without pre-drilling
• Micro-bit point reduces metal shavings near the EPDM rubber washer
• EPDM rubber vulcanized to a steel washer for a reliable weathertight seal
• Fine-to-coarse thread transition for superior holding in wood purlins, plywood, and OSB
• HWH with V-neck design resists head pop-out and adds fastener strength
• 2.5 mils powder coat with chromate sealer provides enhanced corrosion resistance
• Pro-Stick driver bit included in each box

Compatibility

Designed to fasten steel roofing panels to wood purlins in post frame construction and to plywood or OSB decking in residential construction.

Installation Notes

Install using a hex-head driver or impact driver at controlled torque to avoid overdriving and compressing the EPDM washer. Power down all adjacent electrical equipment before working on metal roofing panels. Drive screws perpendicular to the panel surface where possible; the EPDM gasket tolerates moderate angle variation but excessive skew will reduce seal integrity. Follow applicable building code requirements for fastener spacing and edge distance on structural roof panels.
