Hillman 47702 Pole Barn Screw 10x1-1/2 in Hex Washer 107ct

Product Description

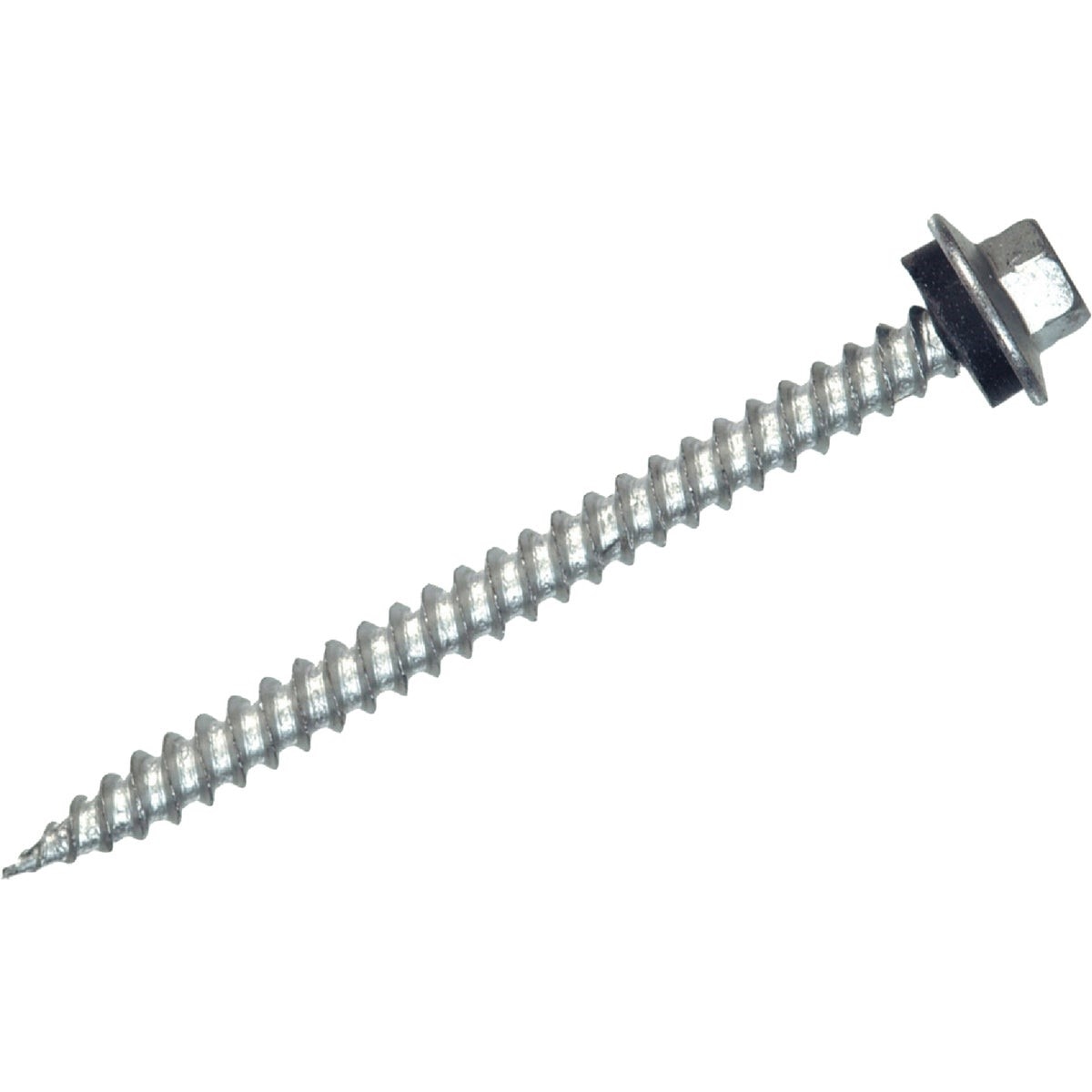

The HILLMAN 47702 is a self-piercing hex washer head pole barn screw designed to fasten thin sheet metal to wood, fiberglass, or metal substrates. Sized at 10 x 1-1/2 inches, each screw features a needle point tip that pierces sheet metal without pre-drilling, speeding up installation on metal roofing, siding, and pole building panels. An attached steel-backed neoprene washer creates a weather-resistant seal at each fastening point. The ceramic finish provides corrosion resistance and is rated for use with pressure-treated lumber. This box contains 107 screws and is a standard choice for contractors and builders working on agricultural, commercial, and light industrial panel applications.

The 47702 is suited for attaching metal roofing and wall panels to wood framing in pole barn construction, post-frame buildings, and similar light structural applications. The self-piercing needle point eliminates the need for a separate pilot hole in thin-gauge sheet metal, reducing steps on large panel jobs. The steel-backed neoprene washer maintains a watertight connection over time, making this screw appropriate for exterior applications exposed to moisture and temperature cycling.

Key Features

• Self-piercing needle point drives through thin sheet metal without pre-drilling
• Hex washer head accepts standard hex driver bits for fast installation
• Attached steel-backed neoprene washer provides a weather-resistant seal
• Ceramic finish rated for use with pressure-treated lumber
• 107 screws per box for consistent jobsite inventory management

Compatibility

Designed for fastening thin sheet metal, fiberglass, or metal panels to wood framing in pole barn and post-frame construction applications.

Installation Notes

Installation is typically performed by carpenters, general contractors, or construction crews using a hex-head driver bit in a standard drill or impact driver. Drive screws perpendicular to the panel surface to ensure proper seating of the neoprene washer and an effective weather seal. Avoid overtightening, as excessive torque can compress or distort the neoprene washer and compromise the seal. Follow applicable building codes for fastener spacing on structural panels.

Technical Specifications

• Size: 10 x 1-1/2 inches
• Head Type: Hex Washer Head
• Point Type: Needle Point (Self-Piercing)
• Washer: Steel-Backed Neoprene
• Finish: Ceramic
• Quantity: 107 per box
• Weight: 1.1 pounds
• Unit of Measure: Box

Standard Information

• Brand: HILLMAN
• Manufacturer Part Number: 47702
