Hillman 375223 Tapcon Masonry Drill Bit 3/16 X 3-1/2 in

Product Description

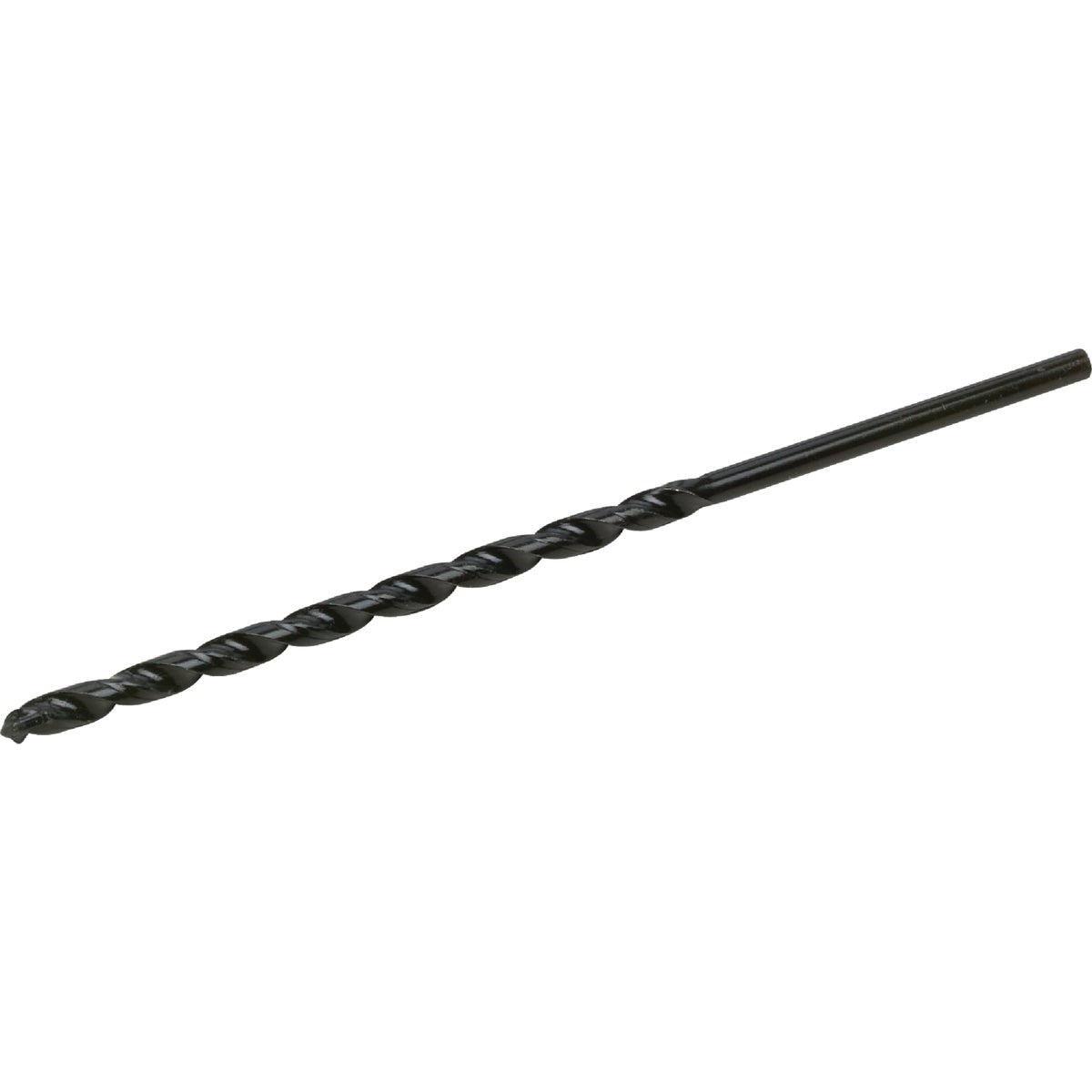

The HILLMAN 375223 is a carbide-tipped Tapcon masonry drill bit designed for drilling pilot holes in concrete, block, and other masonry materials. The 135-degree tip angle helps center the bit on contact and reduces walking at the start of the hole. At 3/16 inch in diameter and 3-1/2 inches in length, this bit is sized specifically for use with standard Tapcon-style concrete anchors. It is a single-use or limited-use consumable tool handled by masons, concrete contractors, HVAC installers, electricians, and plumbers who anchor equipment or conduit to masonry surfaces.

This drill bit is suited for residential and light commercial applications where Tapcon or similar flat-head hex washer-head concrete screws are used to fasten brackets, straps, junction boxes, equipment pads, and similar hardware to poured concrete, concrete block, or brick. The 3/16-inch diameter matches the pilot hole requirement for standard 3/16-inch Tapcon anchors, making it a direct pairing for that fastener size.

Key Features

• Carbide tip construction handles hard masonry surfaces including poured concrete and CMU block
• 135-degree tip angle centers the bit on contact and reduces bit walking
• 3/16-inch diameter sized to match standard 3/16-inch Tapcon concrete anchor pilot hole requirements
• 3-1/2-inch overall length provides adequate depth for typical anchor embedment
• Sold as a single pack

Compatibility

Designed for use with standard 3/16-inch Tapcon-style masonry anchors in poured concrete, concrete block, and brick substrates.

Installation Notes

This bit is used in a hammer drill set to hammer mode for best performance in masonry materials. Clear dust from the hole with compressed air before driving the anchor. Wear eye protection when drilling overhead or into dusty concrete. Follow applicable building codes and anchor manufacturer embedment depth requirements when setting concrete fasteners.

Technical Specifications

• Diameter: 3/16 inches
• Overall Length: 3-1/2 inches
• Tip Angle: 135 degrees
• Tip Material: Carbide
• Weight: 0.026 pounds
• Sold As: Pack of 1

Standard Information

• Brand: HILLMAN
• Manufacturer Part Number: 375223
