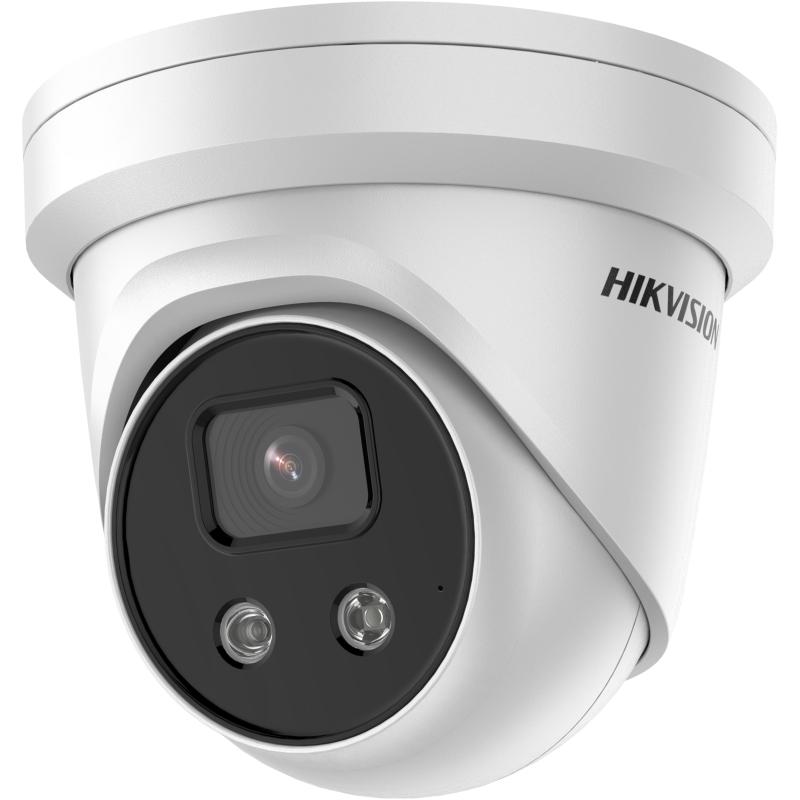

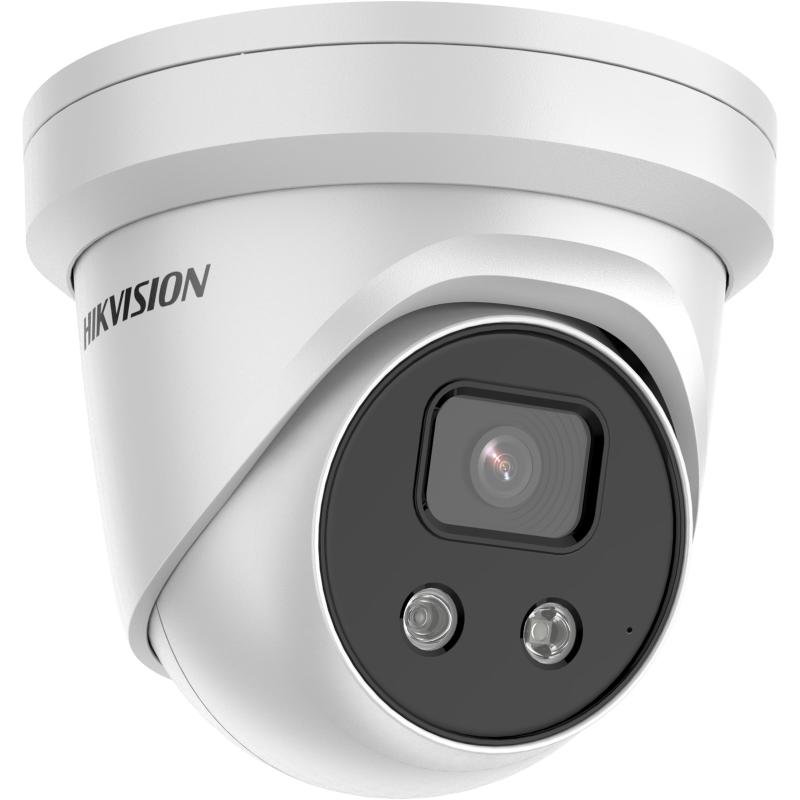

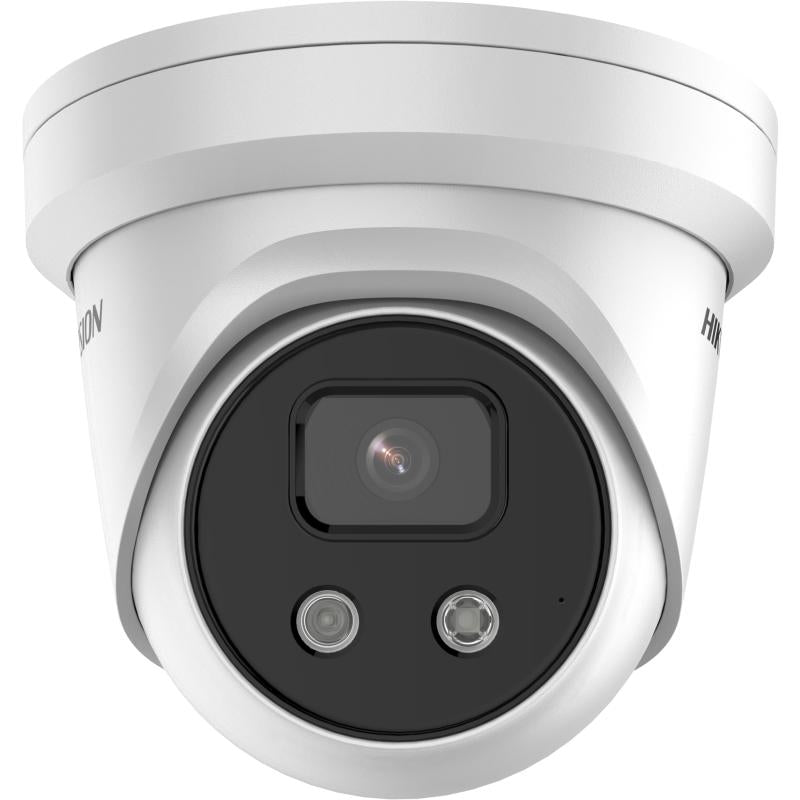

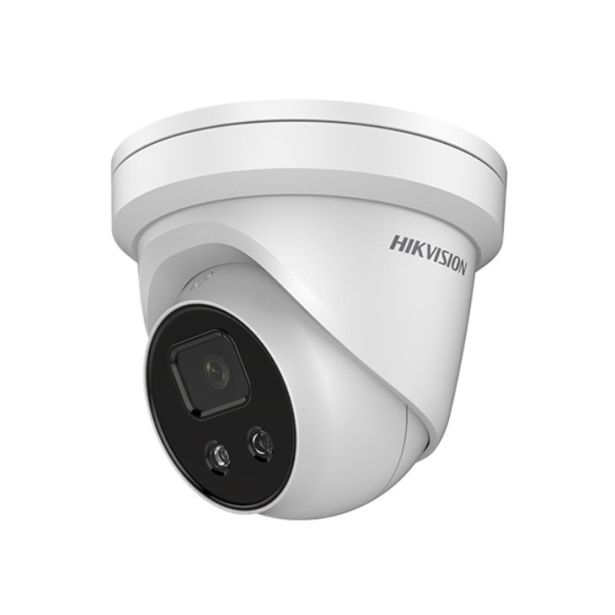

Hikvision PCI-T18F4S 8 MP AcuSense Fixed Turret Network Camera 4mm

Product Description

The HIKVISION PCI-T18F4S is a high-quality network camera offering 8 MP resolution. It features DarkFighter technology for excellent low-light performance and efficient H.265+ compression. The camera provides clear imaging against strong back light due to 120 dB true WDR technology and is water and dust resistant with an IP67 rating.

• High quality imaging with 8 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Efficient H.265+ compression technology

Product Highlights

This network camera is ideal for surveillance applications requiring detailed imaging and reliable performance in various lighting conditions. It supports human and vehicle target classification based on deep learning.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: PCI-T18F4S 4mm
• Country of Origin: China

Technical Specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100, 000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• DORI: 2.8 mm: D: 85 m, O: 33 m, R: 17 m, I: 8 m 4 mm: D: 107 m, O: 42 m, R: 21 m, I: 10 m 6 mm: D: 183 m, O: 72 m, R: 36 m, I: 18 m
• Supplement Light Type: IR
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
• Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
• Target Cropping: Yes
• Audio Type: Mono sound
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, ISUP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): True WDR 120dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset Key: Yes
• Power Output: 12 VDC, max. 100 mA
• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
• Face Capture: Yes
• Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Power: 12 VDC ± 25%, 0.48 A, max. 5.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Web Client Language: 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• EMC: FCC SDoC (47 CFR Part 15, Subpart B); IC VoC (ICES-003: Issue 6, 2019)
• Protection: IP67 (IEC 60529-2013)
• Features: Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, Privacy Masking, Weather Resistant, Wide Dynamic Range
• Brand: Hikvision
• NDAA Compliance: No
• IR Distance: 40m/131ft
• Power Consumption: 12 VDC, 0.48 A, max. 5.8 W, PoE (802.3af, 36 V to 57 V), 0.12 A to 0.19 A, max. 6.8 W
• Operating Temperature: -30° to 60° C (-22° to 140° F)
• Operating Humidity: 95% or less (non-condensing)
• Minimum Scene Illumination: 0.003 Lux @ (ƒ/1.4, AGC on), 0 Lux with IR on
• Lens Size: 4mm
• Camera Signal: Network IP
• Angle of View: Horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
• Digital Noise Reduction: Yes
• Weatherproof: IP67
• Infrared Distance: 101 Feet +
• Resolution: 8 Megapixel (4k)
• Voltage: 12vDC, PoE
• Compression Method: H.264, M-JPEG, H.264+, H.265, H.265+
• Connection Type: Wired
• Electronic Shutter: 1/3 s to 1/100,000 s
• Durability: Weather Resistant
• Mount Type: Ceiling, Wall
• Auto Gain Control: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Flickerless: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Wide Dynamic Range: Yes
• Mirror: Yes
• Product Model: PCI-T18F4S
• Product Name: AcuSense 8 MP IR Fixed Turret Network Camera
• Product Series: AcuSense
• Product Type: Network Camera
• Connectivity Technology: Wired
• Effective Camera Resolution: 8MP
• Field of View: Diagonal, Horizontal, Vertical
• Maximum Aperture: f/1.6
• Maximum Frame Rate: 30fps
• Minimum Focal Length: 4mm
• Night Vision: Yes
• Night Vision Type: Infrared
• Video Formats: H.264, H.265, MJPEG
• Image Sensor Type: CMOS
• Night Vision Distance: 131.23 ft
• Ingress Protection Rating: IP67
• TAA Compliant: No
• Maximum Video Resolution: 3840 x 2160
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -22°F (-30°C)
• Longest Shutter Speed: 1/3 Second
• Shortest Shutter Speed: 1/100000 Second
• Network (RJ-45): Yes
• Focal Length: 4mm
• Lens Included: Yes
• Maximum Focal Length: 4mm
• Remote Management: Yes
• Form Factor: Turret
• Input Voltage: 12V DC
• Ceiling Mount: Yes
• Corner Mount: Yes
• Pole Mount: Yes
• Wall Mount: Yes
• Recording Formats: 4K
• Storage Type: Memory Card
• Maximum Resolution: 8MP
• Environmental Certification: REACH, RoHS, WEEE
• Environmentally Friendly: Yes
• Sensor Size: 1/1.8"
• Sensor Type: CMOS
• Storage Humidity: 0% to 95%
• Storage Temperature: -30°C to 60°C (-22°F to 140°F)
• Technology: Network (IP)
• SD Card Support: Yes
