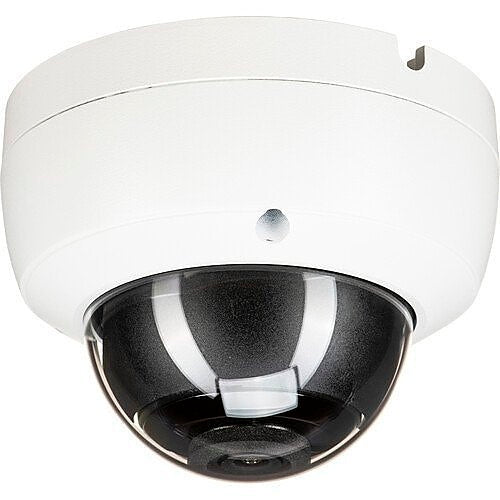

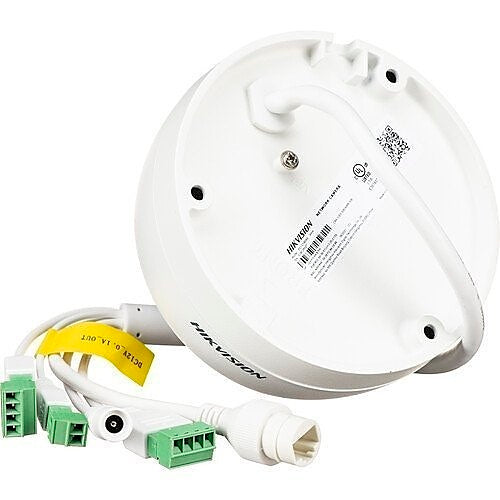

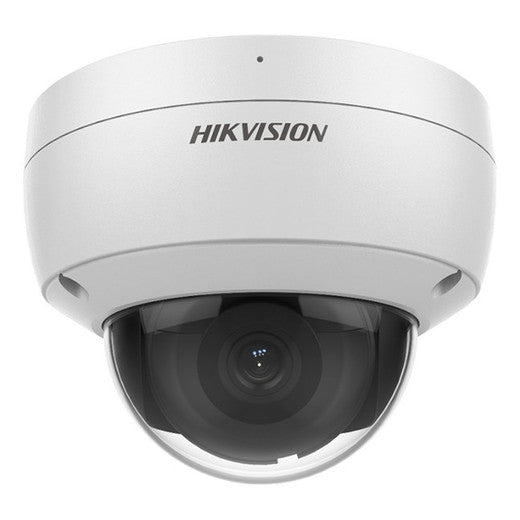

Hikvision PCI-D18F4S 8MP AcuSense WDR Dome IP Camera, 4mm Fixed Lens

Product Description

The Hikvision PCI-D18F4S is an 8MP AcuSense WDR dome IP camera with a 4mm fixed lens. Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices, improving alarm efficiency and effectiveness. It features H.265+ compression technology and true WDR technology.

• High quality imaging with 8MP resolution
• Focus on human and vehicle target classification based on deep learning
• Water and dust resistant (IP67) and vandal-resistant (IK10)

Product Highlights

This Hikvision AcuSense camera delivers high-resolution imaging and advanced analytics for superior detection accuracy. Ideal for outdoor surveillance in demanding environments.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: PCI-D18F4S
• Country of Origin: China

Technical Specifications

• Color: White
• Features: Cross Line Detection,Day/Night,Face Detection,HTTPS Encryption,Motion detection,Privacy Masking,SD Card Local Storage,Tampering Alarm,Vehicle Detection,Wide Dynamic Range
• Lens Type: Fixed
• Brand: Hikvision
• Durability: Dust Resistant,Vandal resistant,Water Resistant
• Mount Type: Ceiling, Wall
• Form Factor: Dome
• Focal Length: 4 mm
• HD Recording: Yes
• Manufacturer: Hikvision
• Night Vision: Yes
• Product Line: AcuSense
• Product Name: 8 MP AcuSense Fixed Dome Network Camera
• Product Type: Network Camera
• Storage Type: Memory Card
• Field of View: horizontal FOV 88°, vertical FOV 50°, diagonal FOV 100°
• Input Voltage: 12V DC
• Lens Included: Yes
• Product Model: PCI-D18F4S
• TAA Compliant: no
• ADI Part Number: HX-D18F4S
• Color Supported: Color
• Network (RJ-45): yes
• Maximum Aperture: f/1.6
• Night Vision Type: Color
• Recording Formats: 4K
• Remote Management: Yes
• Maximum Frame Rate: 30 fps
• Operating Humidity: 95%
• Wide Dynamic Range: Yes
• Maximum Focal Length: 4 mm
• Longest Shutter Speed: 1/3 Second
• Night Vision Distance: 131.23 ft
• Shortest Shutter Speed: 1/100000 Second
• Connectivity Technology: Wired
• Impact Protection Rating: IK10
• Maximum Frame Rate (fps): 30
• Maximum Video Resolution: 3840 x 2160
• Ingress Protection Rating: IP67
• Effective Camera Resolution: 8MP
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -22°F (-30°C)
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100, 000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• DORI: 2.8 mm: D: 89 m, O: 35 m, R: 18 m, I: 9 m 4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m 6 mm: D: 140 m, O: 56 m, R: 28 m, I: 14 m
• Supplement Light Range: Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
• Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
• Video Compression: Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.265 and H.264 encoding
• Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
• Target Cropping: Yes
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP5.0
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10+ Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card, support microSD/SDHC/SDXC card, up to 256 GB
• Audio: Yes
• Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset Key: Yes
• Power Output: 12 VDC, max. 100 mA (supported by all power supply types)
• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output
• Face Capture: Yes
• Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection *Support human and vehicle targets classification
• Power: 12 VDC ± 25%, 0.6 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Web Client Language: 33 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditiona
• EMC: FCC SDoC (47 CFR Part 15, Subpart B); IC VoC (ICES-003: Issue 6, 2019)
• Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
• NDAA Compliance: No
• Lens Size: 4mm
• Digital Noise Reduction: Yes
• Weatherproof: IP67
• Infrared Distance: 101 Feet +
• Resolution: 8 Megapixel (4k)
• Voltage: 12vDC
• Compression Method: H.264, M-JPEG, H.265
• Connection Type: Wired
• Image Device: 1/1.8" Progressive Scan CMOS
• Electronic Shutter: 1/3 s to 1/100, 000 s
• Audio Support: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;1 output (line out), max. output amplitude: 2.5 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
• Motion Detection Tracking: Yes
• Mirror: Yes
• Auto Gain Control: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Flickerless: Yes
• Effective Sensor Resolution: 8 Megapixel
• IR Cut Filter: Yes Mechanical
• Exposure Control: Automatic Gain Control Yes
• Multi-View Streaming: Yes: 4 Streams
• Camera Angle Adjustment: Horizontal: 0 to 355° Vertical: 0 to 75°
• Media/Memory Card Slot: Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
• Other I/O: 1x RJ45
• 1- or 2-Way Audio: Two-Way
• Audio Formats: AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
• External Storage Options: NAS
• Analytics: Motion Detection, Camera Sabotage/Tampering, Abandoned Object, Object Removal, Scene Change Detection, Audio Detection, Face Detection
• Built-In Installation Aids: Pixel Counter
• Event Trigger: Yes
• Event Action: Recording, Notification, Alarm
• Alarm I/O: 1 / 1
• Power Supply:: 7 W
• PoE:: 8.5 W
• Operating Conditions: -22 to 140°F / -30 to 60°C up to 95% Humidity
• Impact Resistance: Impact-Resistant (IK10)
• Environmental Resistance: Dust/Water-Resistant (IP67)
• Startup Temperature: -22 to 140°F / -30 to 60°C
• Materials: Metal
• Illumination: 850 nm IR LEDs up to 131.2' / 40 m
• Supported Languages: Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese
• OS Compatibility: Android/iOS
• Power Type: 12 VDC ± 25%, 0.6 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection;PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• IP Rating: IP67
• Sensor Type: 1/1.8" Progressive Scan CMOS
