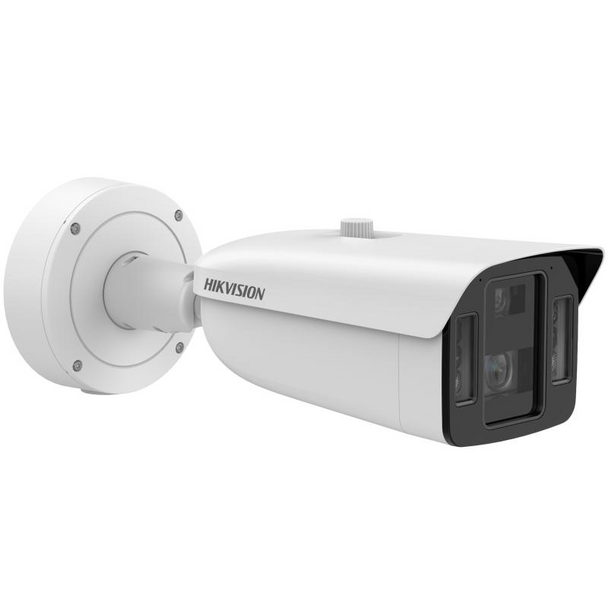

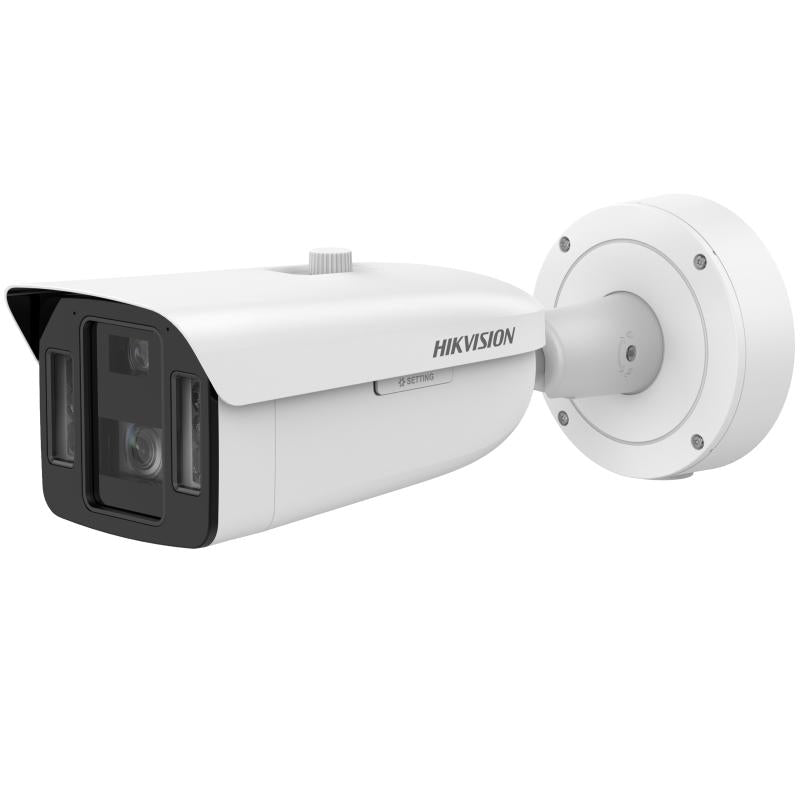

Hikvision IDS-2CD8A86G0-XZHSY 1050/4 DeepinView Multi-Sensor Bullet Camera

Product Description

The HIKVISION IDS-2CD8A86G0-XZHSY 1050/4 is a 4K DeepinView multi-sensor bullet camera, delivering high-quality imaging with 8 MP resolution in channel 1 and 4 MP resolution in channel 2. This camera adopts a dual-channel design, providing detailed views in channel 1 and panoramic views in channel 2. It supports 5 streams to meet various application needs.

• Excellent low-light performance via DarkFighter and ColorVu technology.
• Clear imaging against strong back light due to 140 dB WDR technology.
• Water and dust resistant (IP67) and vandal proof (IK10).

Product Highlights

This multi-sensor bullet camera features H.265+ compression, saving bandwidth and storage. Ideal for outdoor surveillance, it ensures clear and comprehensive monitoring.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: IDS-2CD8A86G0-XZHSY 1050/4

Technical Specifications

• Image Sensor: Channel 1: 1/1.2" Progressive Scan CMOS, Channel 2: 1/1.8 Progressive Scan CMOS"
• Max. Resolution: Channel 1: 3840 x 2160, channel 2: 2560 x 1440
• Minimum Illumination (Color): 0.0003 Lux
• Min. Illumination: Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with IR, Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Speed: 1-1/100000s
• Day & Night: IR cut filter, Blue glass module (less ghost phenomenon)
• Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
• Focal Length & FOV: Channel 1: 10 to 50 mm: horizontal FOV 36° to 13.1°, vertical FOV: 20.4° to 7.4°, diagonal FOV 41.8° to 14.9° Channel 2: 4 mm: horizontal FOV: 89°, vertical FOV: 45°, diagonal FOV: 107°
• Focus: Channel 1: Auto, semi-auto, manual
• Iris Type: Channel 1: P-iris, Channel 2: Fixed
• Aperture: Channel 1: Constant F1.6 throughout the zoom range, Channel 2: F1.0
• DORI: Channel 1: Wide: D:241.4 m, O: 95.8 m, R: 48.3 m, I: 24.1 m Tele: D: 620.7 m, O: 246.3 m, R:124.1 m, I: 62.1 m Channel 2: D:77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
• Supplement Light Type: Hybrid (IR and White Light)
• Supplement Light Range: Channel 1: up to 120 m, Channel 2: up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: Channel 1: 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) Channel 2: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Third Stream: Channel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream: Channel 1: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Fifth Stream: Channel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 4 fixed regions for each stream
• Target Cropping: Yes
• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• Simultaneous Live View: Up to 20 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host: Up to 32 users 3 user levels: administrator, operator, and user
• Security: Digest authentication IP address filtering HTTPS encryption Password protection
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200,Hik-Connect
• Web Browser: Plug-in required live view: IE 10, IE11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Image Parameters Switch: Yes
• Image Settings: Brigthness Contrast Saturation Sharpness
• Day/Night Switch: Channel 1: Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger, Channel 2: Day, Night, Auto, Schedule, Alarm Trigger
• Wide Dynamic Range (WDR): WDR 140dB
• Image Enhancement: Channel 1: BLC, HLC, 3D DNR, Defog, EIS, Channel 2: BLC, HLC, 3D DNR, Defog
• Privacy Mask: 8 programmable polygon privacy masks
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
• Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Audio: Yes
• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key: Yes
• Power Output: 12 VDC, max. 50 mA
• Basic Event: Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,video quality diagnosis, vibration detection
• Smart Event: Scene change detection,audio exception detection,defocus detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing
• Multi-target-type Detection: Channel 1, Detects up to 60 targets simultaneously, Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features
• Face Capture: Channel 1, Detects up to 120 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures
• Face Comparison: Channel 1, Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total. , Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption
• Perimeter Protection: Channel 1, Line crossing, intrusion, region entrance, region exiting, Support alarm triggering by specified target types (human and vehicle), Channel 2, Line crossing, intrusion, region entrance, region exiting, Support alarm triggering by specified target types (human and vehicle)
• Road Traffic and Vehicle Detection: Channel 1, Blocklist and allowlist: up to 10,000 records Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.) License plate recognition rate ≥98%
• Power: Three-core terminal block, 12 VDC ± 20%, 1.90 A, max. 22.7 W, 24 VAC ± 20%, 1.39 A, max. 22.3 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.59 A to 0.44 A, max. 24.7 W
• Material: Aluminum alloy body
• Dimension: Ø140 mm × 410.1 mm (Ø5.5" × 16.1")
• Approx. Weight: Approx. 2.2 kg (4.85 lb.)
• Startup and Operating Conditions: With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing), Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat,one-key reset,mirror,password protection,flash log,anti-banding
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Heater: Yes
• Demist: Yes
• Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
• Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection: -Y model: NEMA 4X (NEMA 250-2018)
• Automotive and Railway: EN50121-4
• Other: PVC FREE
• Alarm Input: 2 Channel
• Alarm Output: 2 Channel
• Analytics: Audio Detection, Camera Sabotage/Tampering, Defocus Detection, Entering/Exiting, Intrusion Detection, Motion Detection, People Detection, Scene Change Detection, Vehicle Detection, Virtual-Line Crossing Detection
• Audio Capability: One-way Audio
• Audio Input: 1x 3.5mm
• Audio Output: 1x 3.5mm
• Built-in Features: Built-in Heater
• Camera Style: Multi-sensor Bullet
• Certifications: RCM KC IC CB RoHS CE LOA WEEE REACH
• Compression: H.265 H.265 Plus H.264 H.264 Plus MJPEG
• Connection Type: Wired
• Day/Night: ICR (True Day/Night) Blue glass module
• Durability: Weatherproof Vandal Proof Corrosion resistant
• Environmental: Outdoor
• Image Enhancements: Auto Gain Control (AGC) Backlight Compensation (BLC) Highlight Compensation (HLC) Defog Electronic Image Stabilization (EIS)
• Iris: P-iris
• Languages: English Russian Estonian Bulgarian Hungarian Greek German Italian Czech Slovak French Polish Dutch Portuguese Spanish Romanian Danish Swedish Norwegian Finnish Croatian Slovenian Serbian Turkish Korean Traditional Chinese Thai Vietnamese Japanese Latvian Lithuanian Portuguese (Brazil) Ukrainian
• Lens Type: Fixed Lens Motorized (Automatic Zoom) Lens
• Max Power Consumption: 24.7 24.7 Watts
• Max. FPS and Resolution: 25fps at 3840 x 2160 (4K)
• Max. Storage Capacity: 256 GB
• Network Interface: 1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
• Night Vision Type: Night Vision (Color - White Light) Night Vision (IR)
• Noise Reduction: 3D DNR
• Operating Humidity: 0% to 95% (non-condensing)
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Power Supply: 12 VDC 24 VAC PoE+ (IEEE802.3at Class 4)
• Product Series: Hikvision DeepinView Series Hikvision Smart Series
• Protection Code: IP67 IK10 NEMA 4X
• Remote Users: Up to 32
• Resolution: 8 Megapixel
• SD Card Support: SD Card Supported
• Sensor Size: 1/1.2"
• Sensor Type: CMOS
• Serial Interface: 1x RS485
• Special Technologies: Hikvision DarkFighter
• Specialized Camera Feature: Color in Near-Total Darkness
• Technology: Network (IP)
• Wavelength (nm): 850
• Video I/O: 1x BNC (Composite) Input
• Power I/O: 1x RJ45 Input, 1x DC (12VDC at 1.9 A) Input, 1x DC (24VAC at 1.3 A) Input
• Number of Lenses: 2
• IR Cut Filter: Yes
• Automatic Gain Control: Yes
• Max Optical Zoom: 5x
• Maximum Aperture: f/1.6, f/1
• Max IP Streaming via RJ45: 3840 x 2160 up to 24.00 fps, 2560 x 1440 up to 30.00 fps
• Multi-View Streaming: Yes: 5 Streams
• Media/Memory Card Slot: Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
• Audio I/O: 1x 1/8" / 3.5 mm TS Mono Input, 1x 1/8" / 3.5 mm TS Mono Output
• Other I/O: 1x 9-Pin (RS-485), 1x Block 3-Pin
• 1- or 2-Way Audio: Two-Way
• Audio Formats: AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
• Built-In Speaker: No
• External Storage Options: NAS
• Event Trigger: Yes
• Event Action: Recording, Notification, Alarm
• Alarm I/O: 2 / 2
• PoE Support: Yes: PoE+ 802.3at
• Power Consumption PoE: 24.7 W with Heater
• Power Consumption Power Supply 12 VDC: 22.7 W with Heater
• Power Consumption Power Supply 24 VAC: 22.3 W with Heater
• Impact Resistance: Impact-Resistant (IK10)
• Environmental Resistance: Dust/Weather/Water-Resistant (IP67)
• Startup Temperature: -40 to 140°F / -40 to 60°C
• Materials: Aluminum
• Illumination: 850 nm IR LED, White LEDs up to 393.7' / 120 m, 850 nm IR LED, White LEDs up to 98.4' / 30 m
• Supported Languages: Brazilian Portuguese, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Ukrainian, Vietnamese
• OS Compatibility Computer: macOS / Windows
• OS Compatibility Mobile: Android/iOS
• Electronic Shutter: 1 s to 1/100,000 s
• Minimum Scene Illumination: Channel 1: Color: 0.0003 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR,Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
• Operating Humidity %: 95% or less (non-condensing),
• Privacy Zone: 8 programmable polygon privacy masks
• Angle of View: Horizontal FOV 36° to 13.1°, vertical FOV: 20.4° to 7.4°, diagonal FOV 41.8° to 14.9° Channel 2: 4 mm: horizontal FOV: 89°, vertical FOV: 45°, diagonal FOV: 107°
• Digital Noise Reduction: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Mirror: Yes
• Model code: iDS-2CD8A86G0-XZS(1050/4)
• Series: Hikvision DeepinView Series
• Chip Inch Size: 1/1.8
• Color Type: Color / Monochrome
• Sensitivity Lux: Channel 1: Color: 0.0003 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR, Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
• Voltage: 12 V DC, 24 V AC, PoE
• Focal Length mm: Channel 1: 10 to 50 mm / Channel 2: 4 mm
• Detect (ft): 791.93 2035.11 252.62
• Field of View (Diagonal): 41.8 14.9 107
• Field of View (Horizontal): 36 13.1 89
• Field of View (Vertical): 20.4 7.4 45
• Identify (ft): 79.07 203.71 25.26
• Lens Size: 10~50mm 4mm
• Minimum Illumination (B/W): 0.0001 Lux at F1.2 AGC ON 0 lux with IR illumination on 0 Lux with white light
• Night Vision Range (ft): 393.70 98.43
• Observe (ft): 314.33 807.48 100.07
• Dimensions: 140 x 409.7 mm (5.5 x 16.1 in)
