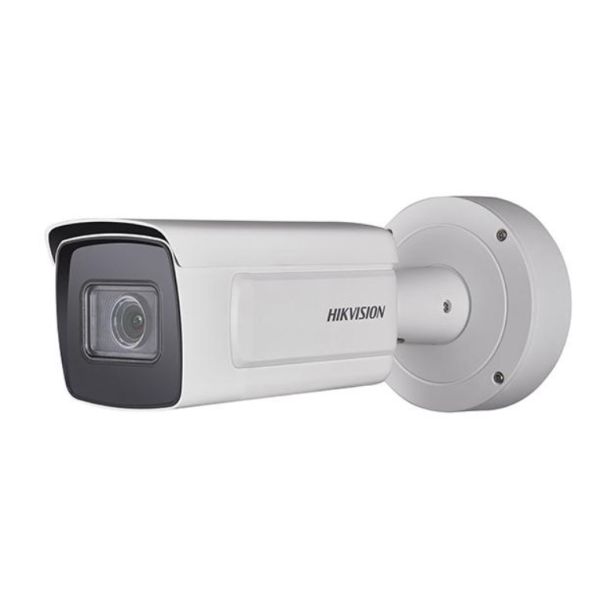

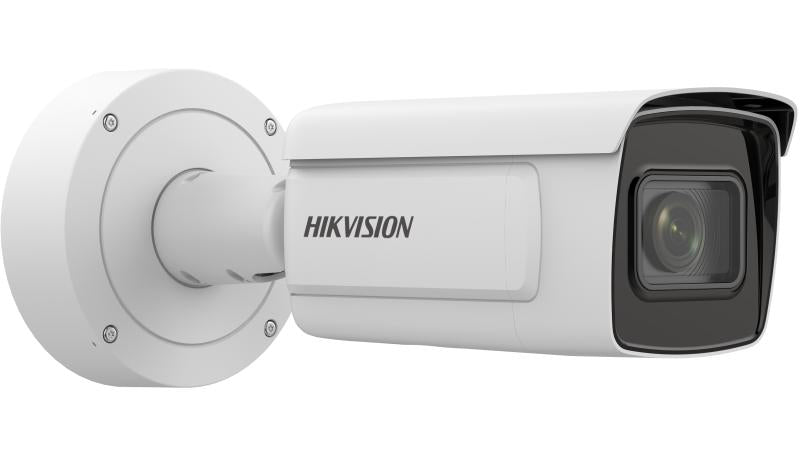

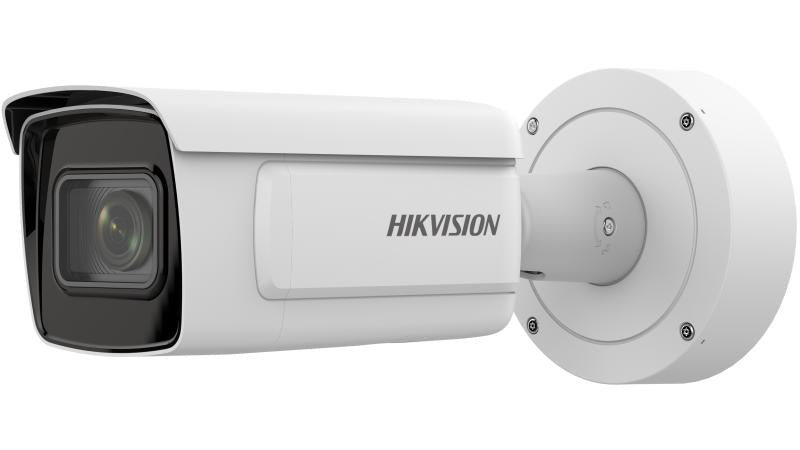

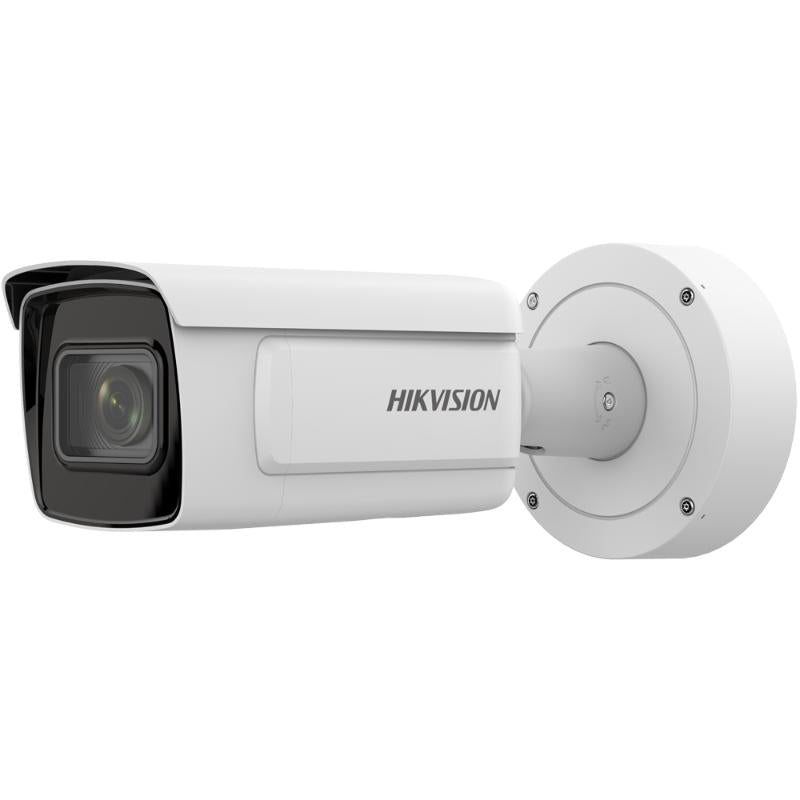

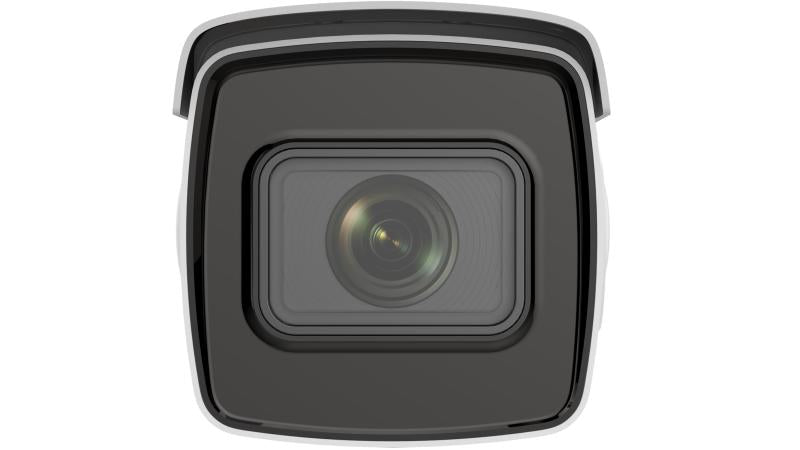

Hikvision IDS-2CD7A46G0/P-IZHSY 4MP DeepinView ANPR Moto Varifocal Bullet Camera 8-32MM

Product Description

The HIKVISION IDS-2CD7A46G0/P-IZHSY is a high-quality 4 MP resolution camera with excellent low-light performance via DarkFighter technology. It provides clear imaging against strong back light due to 140 dB WDR technology and supports license plate recognition. The camera uses efficient H.265+ compression technology to save bandwidth and storage. It is water and dust resistant (IP67) and vandal proof (IK10).

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology

Product Highlights

This camera is ideal for license plate recognition and provides high-quality imaging in various lighting conditions, while being durable for outdoor use.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: IDS-2CD7A46G0/P-IZHSY 8-32MM

Technical Specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter Blue glass module to reduce ghost phenomenon
• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48° 8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
• Focus: Auto,Semi-auto,Manual
• Iris Type: P-iris
• Aperture: F1.7
• DORI: Wide: 2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m 8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m Tele: 2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m 8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m
• Supplement Light Type: IR
• Supplement Light Range: 2.8 to 12 mm: 50 m 8 to 32 mm: 100 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Third Stream: 1080P
• Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 4
• Target Cropping: Yes
• e-PTZ: Support Patrol and Auto Tracking settings
• Audio Type: Mono sound
• Audio Compression: AAC G.711 G.722.1 G.726 MP2L2 MP3 PCM
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• Simultaneous Live View: Up to 20 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
• User/Host: Up to 32 users 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Image Parameters Switch: Yes
• Image Settings: Brigthness Contrast Saturation Sharpness
• Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger
• Wide Dynamic Range (WDR): 140 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
• Image Stabilization: EIS
• Privacy Mask: 8 programmable polygon privacy masks
• Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• Audio: With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485: With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key: Yes
• Power Output: With -Y: 12 VDC, max. 100 mA
• Wiegand: -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
• Smart Event: scene change detection,audio exception detection,defocus detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering
• Road Traffic and Vehicle Detection: Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records
• LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
• Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98%
• Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h
• Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
• Metadata: Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
• Parking Management: Support distant view mode and close view mode Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm
• Power: 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
• Material: Aluminum alloy body
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
• Heater: Yes
• Device Management: Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
• EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
• Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
• Automotive and Railway: EN50121-4
• Other: PVC FREE
• Alarm Input: 2 Channel
• Alarm Output: 2 Channel
• Analytics: Intrusion Detection Line Crossing Motion Detection Tampering
• Audio Capability: One-way Audio
• Audio Input: 1x 3.5mm
• Audio Output: 1x 3.5mm
• Camera Style: Bullet
• Certifications: CE FCC IC KC RCM REACH RoHS WEEE
• Compatible Integration (API): ISAPI ISUP ONVIF Profile G ONVIF Profile S ONVIF Profile T SDK
• Compression: H.264 H.264 Plus H.265 H.265 Plus MJPEG
• Connection Type: Wired
• Day/Night: ICR (True Day/Night)
• Durability: Vandal Proof Weatherproof
• Environmental: Outdoor
• Field of View (Diagonal): 49.6 17.3
• Field of View (Horizontal): 42.5 15.1
• Field of View (Vertical): 23.3 8.64
• Image Enhancements: Auto Gain Control (AGC) Backlight Compensation (BLC) Defog Electronic Image Stabilization (EIS) Highlight Compensation (HLC)
• Lens Size: 8-32mm
• Lens Type: Motorized (Automatic Zoom) Lens
• Max Power Consumption: 16.8 Watts
• Max. FPS and Resolution: 30fps at 2688 x 1520
• Max. Storage Capacity: 1 TB
• Minimum Illumination (B/W): 0.0001 Lux at F1.2 AGC ON
• Minimum Illumination (Color): 0.0005 lux
• Network Interface: 1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
• Night Vision Range (ft): 164.04
• Night Vision Type: Night Vision (IR)
• Noise Reduction: 3D DNR
• Operating Humidity: 95% or less (non-condensing)
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Power Supply: 12 VDC PoE+ (IEEE802.3at Class 4)
• Product Series: Hikvision DeepinView Series Hikvision Smart Series
• Protection Code: IK10 IP67 NEMA 4X
• Remote Users: Up to 32
• Resolution: 4MP
• S/N Ratio: >52 dB
• SD Card Support: SD Card Supported
• Sensor Size: 1/1.8"
• Sensor Type: CMOS
• Serial Interface: 1x RS485 1x Wiegand
• Shutter Speed: 1-1/100000s
• Special Technologies: Hikvision DarkFighter
• Specialized Camera Feature: License Plate Recognition (LPR)
• Storage Humidity: 0% to 95% (non-condensing)
• Sub Stream: VGA
• Technology: Network (IP)
• Wavelength (nm): 850
• Wide Dynamic Range (WDR: 140 dB
• Angle of View: Horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, Diagonal FOV: 49.6° to 17.3°
• IR Distance: 100m/328ft
• Audio Support: With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
• Power Type: 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
• Product Type: Bullet
• Connectivity: Wired
• Electronic Shutter: 1 s to 1/100,000 s
