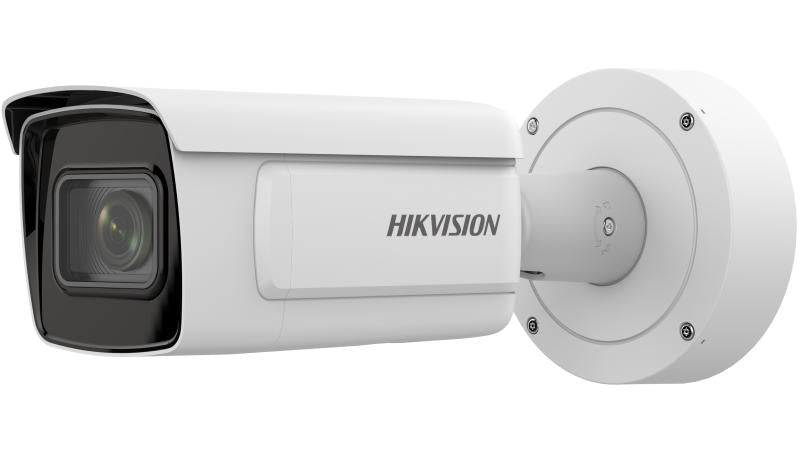

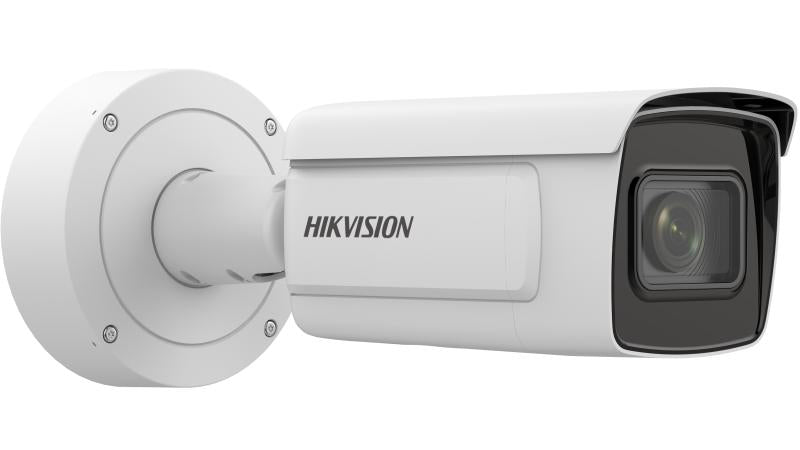

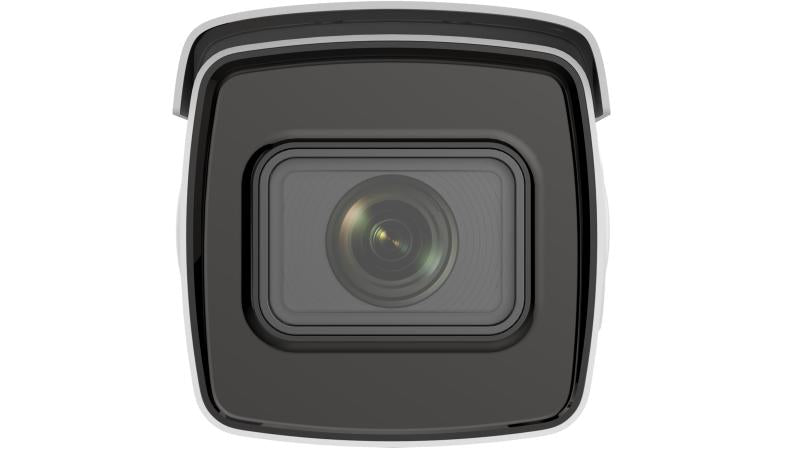

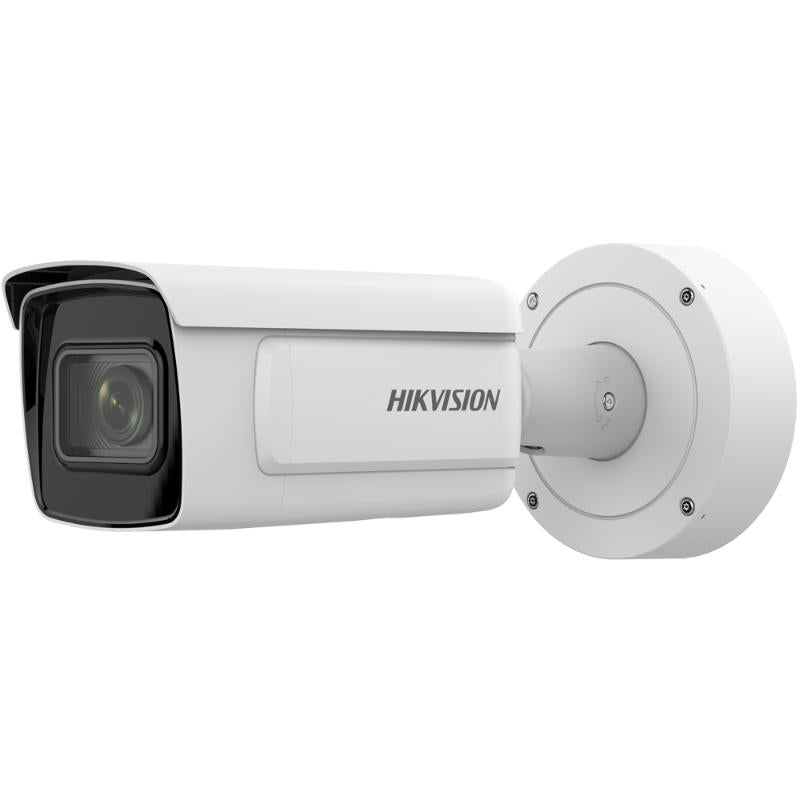

Hikvision IDS-2CD7A46G0/P-IZHSY 2.8-12mm DeepinView ANPR Moto Varifocal Bullet Camera

Product Description

The HIKVISION IDS-2CD7A46G0/P-IZHSY 2.8-12MM is a high-quality 4 MP resolution camera with excellent low-light performance via DarkFighter technology. It provides clear imaging against strong back light due to 140 dB WDR technology. This camera offers license plate recognition and efficient H.265+ compression technology to save bandwidth and storage. It supports 5 streams to meet a wide variety of applications.

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology

Product Highlights

This camera is water and dust resistant (IP67) and vandal proof (IK10). Ideal for outdoor surveillance needing license plate recognition and reliable performance in varied lighting conditions.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: IDS-2CD7A46G0/P-IZHSY 2.8-12MM
• Country of Origin: China

Technical Specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter Blue glass module to reduce ghost phenomenon
• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
• Focus: Auto,Semi-auto,Manual
• Iris Type: P-iris
• Aperture: F1.2 to F2.5
• DORI: Wide: 2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m
• Supplement Light Type: IR
• Supplement Light Range: 2.8 to 12 mm: 50 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Third Stream: 1080P
• Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 4
• Target Cropping: Yes
• e-PTZ: Support Patrol and Auto Tracking settings
• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• Simultaneous Live View: Up to 20 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
• User/Host: Up to 32 users
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Image Parameters Switch: Yes
• Image Settings: Saturation Brigthness Contrast Sharpness
• Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger
• Wide Dynamic Range (WDR): 140 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
• Image Stabilization: EIS
• Privacy Mask: 8 programmable polygon privacy masks
• Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
• Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• Audio: With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
• Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-485: With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key: Yes
• Power Output: With -Y: 12 VDC, max. 100 mA
• Wiegand: -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
• Smart Event: scene change detection,audio exception detection,defocus detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering
• Road Traffic and Vehicle Detection: Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records
• LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
• Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98% Capture rate ≥99% Driving direction accuracy rate ≥98%
• Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h Side installation: up to 80 km/h
• Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
• Metadata: Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
• Parking Management: Support distant view mode and close view mode Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm
• Power: 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
• Material: Aluminum alloy body
• Dimension: Ø144 mm × 347 mm (Ø5.7" × 13.7")
• Package Dimension: 405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
• Weight: Approx. 1950 g (4.2 lb.)
• With Package Weight: Approx. 3070 g (6.7 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
• Heater: Yes
• Device Management: Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
• EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
• Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
• Anti-Corrosion Protection: -Y: NEMA 4X (NEMA 250-2018)
• Automotive and Railway: EN50121-4
• Other: PVC FREE
• Alarm Input: 2 Channel
• Alarm Output: 2 Channel
• Analytics: Motion Detection Tampering Intrusion Detection Line Crossing
• Audio Capability: One-way Audio
• Audio Input: 1x 3.5mm
• Audio Output: 1x 3.5mm
• Camera Style: Bullet
• Certifications: FCC CE RCM IC KC RoHS WEEE REACH
• Compatible Integration (API): ONVIF Profile G ONVIF Profile S ONVIF Profile T ISAPI SDK ISUP
• Compression: H.265 H.265 Plus H.264 H.264 Plus MJPEG
• Connection Type: Wired
• Day/Night: ICR (True Day/Night)
• Dimensions: 140 x 351 mm (5.5 x 13.8 in)
• Durability: Weatherproof Vandal Proof
• Environmental: Outdoor
• Field of View (Diagonal): 141.1 48
• Field of View (Horizontal): 114.5 41.8
• Field of View (Vertical): 59.3 23.6
• Image Enhancements: Auto Gain Control (AGC) Backlight Compensation (BLC) Highlight Compensation (HLC) Defog Electronic Image Stabilization (EIS)
• Lens Size: 2.8~12mm
• Lens Type: Varifocal
• Max Power Consumption: 16.8 Watts
• Max. FPS and Resolution: 30fps at 2688 x 1520
• Max. Storage Capacity: 256 GB
• Minimum Illumination (B/W): 0.0001 Lux at F1.2 AGC ON
• Minimum Illumination (Color): 0.0005 lux
• Network Interface: 1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
• Night Vision Range (ft): 164.04
• Night Vision Type: Night Vision (IR)
• Noise Reduction: 3D DNR
• Operating Humidity: 0.95
• Operating Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Power Supply: 12 VDC PoE+ (IEEE802.3at Class 4)
• Product Series: Hikvision Smart Series Hikvision DeepinView Series
• Protection Code: IP67 IK10 NEMA 4X
• Remote Users: Up to 32
• Resolution: 4MP
• S/N Ratio: >52 dB
• SD Card Support: SD Card Supported
• Sensor Size: 1/1.8"
• Sensor Type: CMOS
• Serial Interface: 1x RS485 1x Wiegand
• Shutter Speed: 1-1/100000s
• Special Technologies: Hikvision DarkFighter
• Specialized Camera Feature: License Plate Recognition (LPR)
• Storage Humidity: 0% to 95% (non-condensing)
• Sub Stream: VGA
• Technology: Network (IP)
• Wavelength (nm): 850
• Input Voltage: 12V DC
• Mount Type: Corner Mount, Pole Mount, Wall Mount
• Recording Formats: HD
• Storage Type: Memory Card
• Analog Video Signal Format: CVBS
• Maximum Resolution: 4MP
• Environmental Certification: REACH, RoHS, WEEE
• Environmentally Friendly: Yes
• Impact Protection Rating: IK10
• Indoor/Outdoor: Outdoor
• Effective Camera Resolution: 4MP
• Field of View: Diagonal, Horizontal, Vertical
• Maximum Aperture: f/1.2
• Maximum Frame Rate: 30fps
• Minimum Focal Length: 2.8mm
• Night Vision: Yes
• Video Formats: H.264, H.265, MJPEG
• Night Vision Distance: 164.04 ft
• Wide Dynamic Range: Yes
• Ingress Protection Rating: IP67
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -40°F (-40°C)
• Longest Shutter Speed: 1 Second
• Shortest Shutter Speed: 1/100000 Second
• Network (RJ-45): Yes
• Focal Length: 2.8-12mm
• Lens Included: Yes
• Maximum Focal Length: 12mm
• Minimum Aperture: f/2.5
• Remote Management: Yes
• Form Factor: Bullet
• Power Type: 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
• Audio Support: With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
