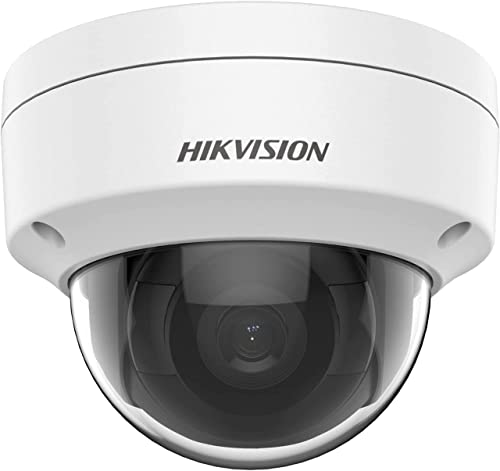

Hikvision ECI-D14F2 4MP Build-in Mic Fixed Dome Network Camera

Product Description

The Hikvision ECI-D14F2 is a 4 MP fixed dome network camera providing high-quality imaging. It utilizes efficient H.265+ compression technology and features 120 dB WDR for clear imaging in strong backlighting. The camera is water and dust resistant to IP67 standards and vandal resistant to IK10 standards. It also supports up to 256 GB SD card storage.

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR

Product Highlights

This network camera offers robust environmental protection, advanced IR technology, and built-in microphone for comprehensive surveillance.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: ECI-D14F2
• Country of Origin: China

Technical Specifications

• Image Sensor: 1/3" progressive scan CMOS
• Max. Resolution: 2560 x 1440
• Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
• Focal Length & FOV: 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.0
• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream: 50 Hz: 20 fps (2560 x 1440) 25 fps (2304 x 1296, 1920 x 1080, 1280 x 720) 60 Hz: 20 fps (2560 x 1440) 30 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
• Sub-Stream: 50 Hz: 25 fps (640 x 480, 640 x 360) 60 Hz: 30 fps (640 x 480, 640 x 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface, ISAPI
• User/Host: Up to 32 users. 3 levels: administrator, operator and user
• Network Storage: NAS (NFS, SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect
• Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, Schedule, Day, Night
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, 3D DNR
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB
• Built-in Microphone: Yes
• Reset Key: Yes
• Basic Event: Motion detection, video tampering, exception
• Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
• Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
• Brand Name: Hikvision
• Manufacturer: Hikvision
• Manufacturer Part Number: ECI-D14F2
• Product Model: ECI-D14F2
• Product Name: 4 MP Outdoor IR Network Dome Camera
• Product Series: Value Express
• Product Type: Network Camera
• Connectivity Technology: Wired
• Effective Camera Resolution: 4MP
• Field of View: Diagonal, Horizontal, Vertical
• Lens Included: Yes
• Lens Type: Fixed
• Maximum Aperture: f/2
• Maximum Frame Rate: 30fps
• Minimum Focal Length: 2.8mm
• Night Vision: Yes
• Night Vision Type: Infrared
• Video Formats: H.264, H.265, MJPEG
• Image Sensor Type: CMOS
• Night Vision Distance: 98.43 ft
• Ingress Protection Rating: IP67
• NDAA Compliant: No
• TAA Compliant: No
• Maximum Video Resolution: 2560 x 1440
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -22°F (-30°C)
• Operating Humidity: 0.95
• Longest Shutter Speed: 1/3 Second
• Shortest Shutter Speed: 1/100000 Second
• Network (RJ-45): Yes
• Focal Length: 2.8mm
• Maximum Focal Length: 2.8mm
• Remote Management: Yes
• Durability: Dustproof, Impact Resistant, Waterproof
• Form Factor: Dome
• Input Voltage: 12V DC
• Mount Type: Ceiling Mount, Wall Mount
• Recording Formats: HD
• Storage Type: Memory Card
• Environmental Certification: REACH, RoHS, WEEE
• Environmentally Friendly: Yes
• Video Resolution: 2688 x 1520
• Effective pixels: 4 Mega pixels
• Indoor/Outdoor: YES
• Protection range: IP66
• Camera Model: ECI-D14F2
• IR Distance: 30m/100ft
• Power Consumption: 12 VDC, 0.45 A, maximum: 5.5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, maximum: 7 W
• Minimum Scene Illumination: Color: 0.15 lux @ (f/2.0, AGC on); B/W: 0.03 lux @ (f/2.0, AGC on), 0 lux with IR
• Angle of View: Horizontal FOV 100°, vertical FOV 55°, diagonal FOV: 117°
• Digital Noise Reduction: Yes
• Weatherproof: IP67
• Infrared Distance: 61~100 Feet
• Resolution: 4 Megapixel
• Voltage: PoE
• Compression Method: H.264, M-JPEG, H.264+, H.265, H.265+
• Connection Type: Wired
• Image Device: 1/3" (4 MP) progressive scan CMOS
• Electronic Shutter: 1/3 s to 1/100, 000 s
• Vandal Resistant: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Mirror: Yes
• ONVIF: Yes
• Auto Gain Control: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Flickerless: Yes
