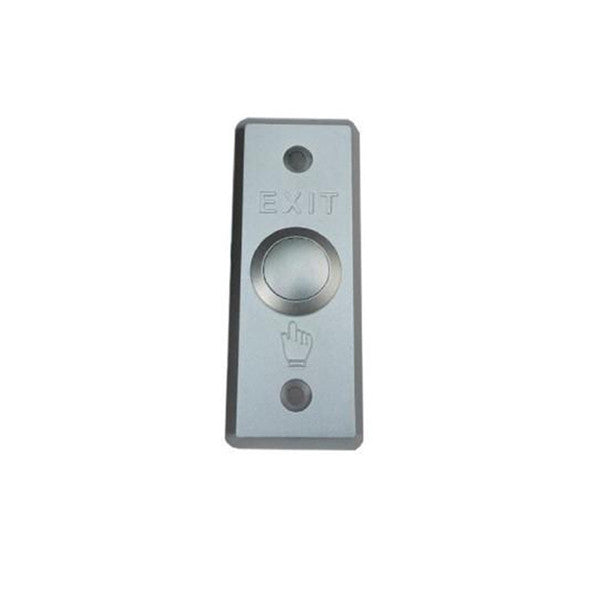

Hikvision DS-K7P02 Aluminum Exit Button for Hollow Doorframe and Embedded Electric Box

Product Description

The HIKVISION DS-K7P02 exit button is designed for hollow doorframe doors and an embedded electric box. The panel is sandblasted aluminum and features N.O/N.C/COM contacts. It supports a maximum of 3 A @ 36 VDC. Ideal for access control systems, this push button is easy to install in door applications.

• 3 A @ 36 VDC Maximum
• NO/NC/COM Contacts
• Hollow Doorframe and Embedded Electric Box

Product Highlights

Sandblasted aluminum panel exit button designed for hollow doorframes and embedded electric boxes. Features N.O/N.C/COM contacts.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-K7P02
• Country of Origin: China

Technical Specifications

• Brand Name: Hikvision
• Depth: 1.1"
• Width: 1.4"
• Height: 3.5"
• Manufacturer: Hikvision
• Product Name: DS-K7P02 Exit Button
• Product Type: Push Button
• Input Voltage: 36V DC
• Print/Message: EXIT
• Product Model: DS-K7P02
• TAA Compliant: no
• ADI Part Number: HX-K7P02
• Application/Usage: Door
• Weight (Approximate): 7.04 oz
• Certifications & Standards: UL CE FCC
• Maximum Operating Temperature: 131°F (55°C)
• Minimum Operating Temperature: 14°F (-10°C)
• Maximum Operating Temperature (°F): 131
• Minimum Operating Temperature (°F): 14
• Power supply: Max. 36 VDC, 3 A
• Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity: 0 to 95% (relative humidity)
• Material: Aluminum alloy panel with sandblast, metal button
• Door type: Hollow doorframe and embedded-electric box
• Signal output: NO/NC/COM contact
• Aging Test: Already passed 500 thousand times aging test
• Access Control Type: Button
• Manufacturer Website: https://us.hikvision.com/en
• Certifications: CE
