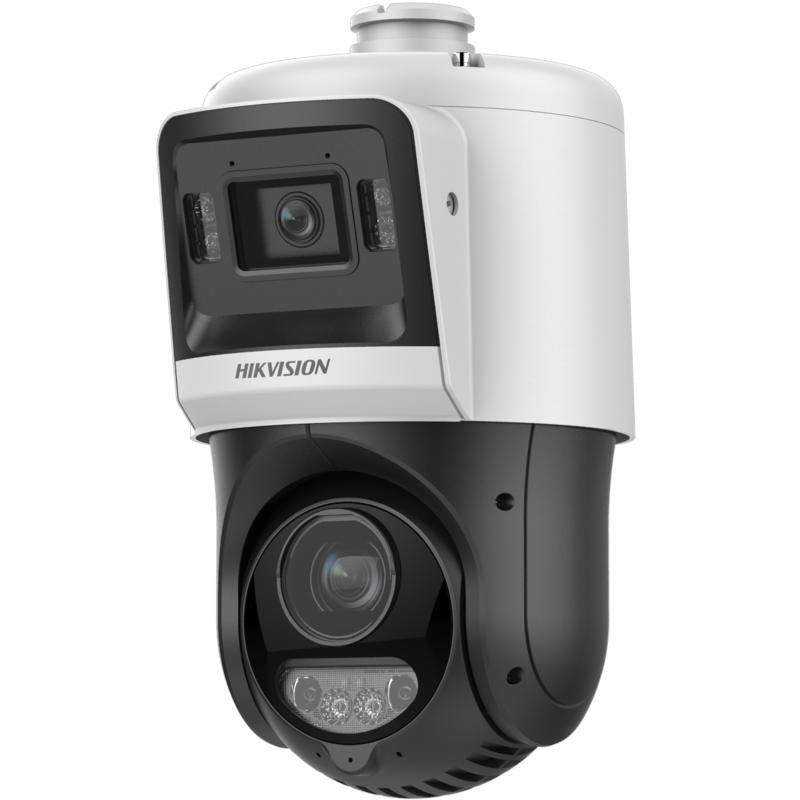

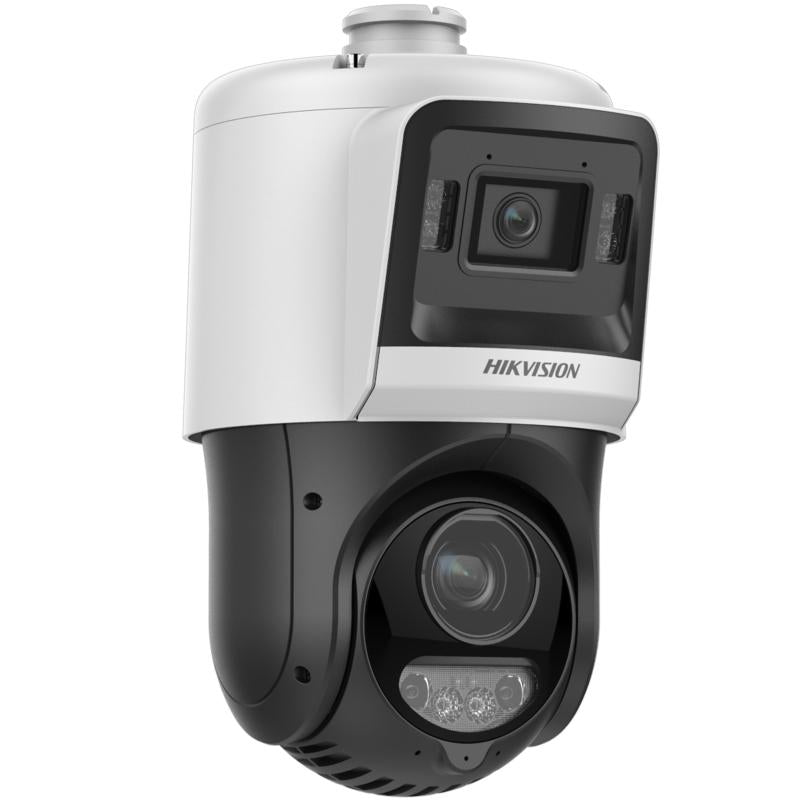

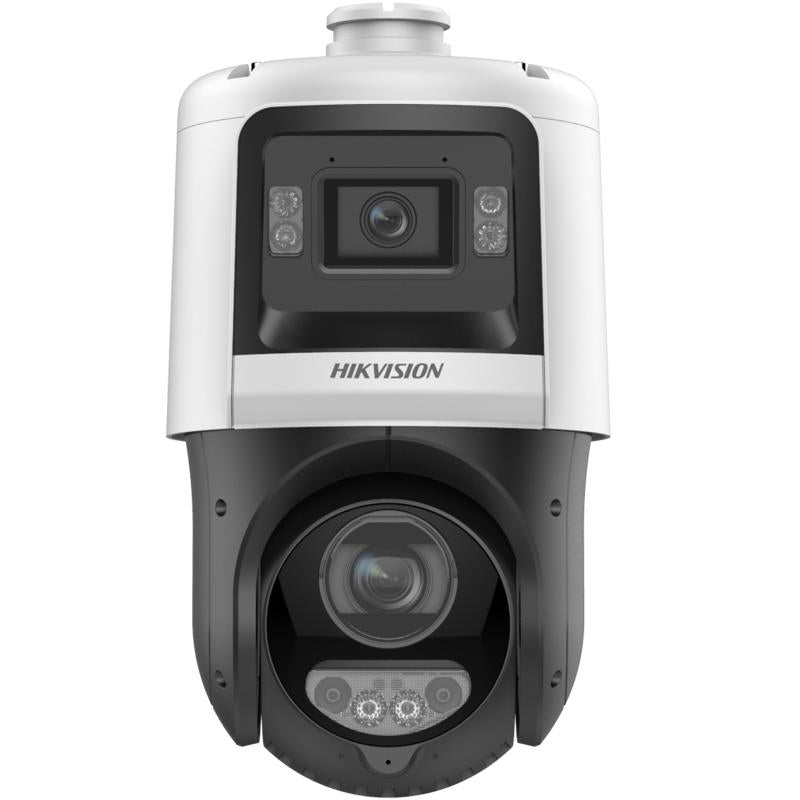

Hikvision DS-2SE4C425MWG-E 14F0 TandemVu 4+4MP 25X ColorVu & IR Acusense Network Speed Dome

Product Description

The HIKVISION DS-2SE4C425MWG-E 14F0 TandemVu network speed dome captures a large area with great detail, featuring high-quality 4 MP resolution. It provides excellent low-light performance with DarkFighter and ColorVu technology. The camera secures expansive areas with 25x optical zoom and supports wide dynamic range, highlight compensation, and backlight compensation.

• Captures a large area and great details at the same time.
• Features excellent low-light performance with powered-by-DarkFighter and ColorVu technology.
• Secures an expansive area with 25x optical zoom and 16x digital zoom.

Product Highlights

This network speed dome is designed for comprehensive surveillance, offering advanced features for detailed monitoring in various lighting conditions.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2SE4C425MWG-E 14F0

Technical Specifications

• Image Sensor: Bullet Channel: 1/3" Progressive Scan CMOS; PTZ Channel: 1/2.8" progressive scan CMOS
• Max. Resolution: Bullet channel: 2560 x 1440, PTZ channel: 2560 x 1440
• Min. Illumination: Bullet channel: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; PTZ channel: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1 s to 1/30,000 s
• Day & Night: ICR
• Zoom: PTZ channel: 25 x optical, 16 x digital
• Slow Shutter: Yes
• Focal Length: Bullet channel: 2.8 mm; PTZ channel: 4.8 to 120 mm, 25 x optical
• Field of View: Bullet channel: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°; PTZ channel: Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
• Focus: semi-auto||manual||auto
• Aperture: Bullet channel: F1.0; PTZ channel: F1.6
• Zoom Speed: PTZ channel: approx. 3.6 s
• Supplement Light Type: PTZ channel: IR; Bullet channel: White Light
• Supplement Light Range: PTZ channel: up to 100 m; Bullet channel: up to 30 m
• Smart Supplement Light: Yes
• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: Yes
• Presets: 300
• Preset Freezing: Yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Scheduled Task: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
• Power-off Memory: Yes
• Main Stream: Bullet channel: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) PTZ channel: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream: Bullet channel: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) PTZ channel: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream: Bullet channel: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) PTZ channel: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression: H.265||H.264||MJPEG
• Video Bit Rate: 32 kbps to 16384 kbps
• H.264 Type: baseline profile||main profile||high profile
• H.265 Type: main profile
• Scalable Video Coding (SVC): Yes
• Region of Interest (ROI): 8 fixed regions for each stream
• Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
• Audio Bit Rate: 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz,16 kHz,32 kHz,48 kHz
• Environment Noise Filtering: Yes
• Protocols: IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||PPPoE||Bonjour||WebSocket||WebSockets
• Simultaneous Live View: 20
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host: 32
• Security: Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
• Network Storage: NAS (NFS, SMB/ CIFS)|| ANR
• Client: iVMS-4200||Hik-Connect
• Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+
• Image Parameters Switch: Yes
• Image Settings: sharpness, saturation, brightness, contrast
• Day/Night Switch: day, night, auto, scheduled-switch
• Wide Dynamic Range (WDR): True WDR 120dB
• SNR: ≥ 52 dB
• Defog: Digital defog
• Image Stabilization: EIS
• Image Enhancement: BLC,HLC,3D DNR
• Privacy Mask: Bullet channel: 8 programmable polygon privacy masks, PTZ channel: 24 programmable polygon privacy masks; mask color or mosaic configurable
• Regional Focus: Yes
• Regional Exposure: Yes
• Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
• On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
• Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
• Alarm: 1 alarm input, 1 alarm output
• Reset: Yes
• Basic Event: PTZ channel: motion detection, video tampering alarm, PTZ channel & bullet channel: alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
• Smart Event: PTZ channel & bullet channel: audio exception detection, PTZ channel: line crossing detection, intrusion detection, region entrance detection, region exiting detection, Bullet channel: line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Linkage: Bullet channel: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, PTZ channel: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
• Face Capture: PTZ Channel
• Power: 12VDC, PoE+
• Material: ADC12
• Operating Condition: -30℃ to 65℃ (-22°F to 149°F) ||humidity lower than 90%RH
• General Function: mirror,password protection,watermark,IP address filter
• Demist: Demist by heating the glass
• Power Consumption and Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
• Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
• Weatherproof: IP67
• Infrared Distance: 101 Feet +
• Resolution: 4 Megapixel
• Voltage: 12vDC, PoE
• Compression Method: H.264, M-JPEG, H.265
• Connection Type: Wired
• Image Device: Bullet channel: 1/3" Progressive Scan CMOS; PTZ channel: 1/2.8" progressive scan CMOS
• Electronic Shutter: 1 s to 1/30,000 s
• Durability: Water Resistant
• Mount Type: Pendant
• Audio Input: 1 x 2.0 to 2.4 V p-p, 1 Kilohm
• Audio Output: 1 x Line Level, 600 Ohms
• Operating Temperature: -30 °C to 65 °C (-22 °F to 149 °F)
• Operating Humidity: 90%RH
• Lens Size: 25X
• Camera Signal: Network IP
• Lens Type: Motorized Zoom
• Angle of View: Horizontal field of view: 96.1°, Vertical field of view: 52.1°，Diagonal field of view: 113.3°
• Digital Noise Reduction: Yes
• Wide Dynamic Range: Yes
• Mirror: Yes
• Auto Gain Control: Yes
• Day/Night: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Power Supply: PoE+
• Protection Code: IP66
• SD Card Support: SD Card Supported
• Sensor Size: 1/2.8"
• Sensor Type: CMOS
• Technology: Network (IP)
• Minimum Illumination Bullet Channel: 0.0005 Lux at f/1.0 with AGC, 0 Lux with Light
• Minimum Illumination PTZ Channel: Color: 0.005 Lux at f/1.6 with AGC B&W: 0.001 Lux at f/1.6 with AGC, 0 Lux with IR
• Day/Night Switching: Day, Night, Auto, Scheduled Switch
• White Balance: Auto, ATW, Sodium Lamp, Fluorescent Lamp, Indoor, Outdoor, MWB, Locked WB
• Maximum Resolution: 2560 x 1440
• Focal Length Bullet Channel: 2.8mm
• Focal Length PTZ Channel: 4.8-120mm
• Zoom Speed PTZ Channel: Approximately 3.6 Seconds
• Field of View Bullet Channel Horizontal: 96.1°
• Field of View Bullet Channel Vertical: 52.1°
• Field of View Bullet Channel Diagonal: 113.3°
• Field of View PTZ Channel Horizontal: 55 to 2.4° (Wide to Tele)
• Field of View PTZ Channel Vertical: 33 to 1.4° (Wide to Tele)
• Field of View PTZ Channel Diagonal: 61.5 to 2.8° (Wide to Tele)
• Aperture Bullet Channel: f/1.0
• Aperture PTZ Channel: f/1.6
• Light Supplement: Bullet Channel: White Light PTZ Channel: IR
• Light Distance Bullet Channel: Up to 98' / 30 m
• Light Distance PTZ Channel: Up to 328' / 100 m
• Pan: 360°
• Tilt: 15 to 90° (Auto Flip)
• Zoom Optical: 25x
• Zoom Digital: 16x
• Pan Speed Configurable: 0.1 to 80°/s
• Pan Speed Preset: 80°/s
• Tilt Speed Configurable: 0.1 to 80°/s
• Tilt Speed Preset: 80°/s
• Stream Type: Main Stream, Sub-Stream, Third Stream
• Frame Rate Main Stream: 2560 x 1440 at 30 fps
• Frame Rate Sub-Stream: 704 x 480 at 30 fps
• Frame Rate Third Stream: 1920 x 1080 at 30 fps
• Codecs: H.265, H.264, MJPEG
• Bit Rate: 32 to 16,384 kb/s
• SVC: Yes
• Codecs Audio: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
• Bit Rate Audio: MP2L2: 32 to 160 kb/s AAC-LC: 16 to 64 kb/s
• Sampling Rate: 8, 16, 32, 48 kHZ
• Smart Record: ANR, Dual VCA
• Basic Event Detection: Motion Detection, Video Tampering Alarm, Alarm Input, Alarm Output, Exception
• Smart Event Detection: Audio Exception Detection, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection
• Alarm Linkage: Upload to FTP/NAS/Memory Card, Notify Surveillance Center, Send Email, Trigger Alarm Output, Trigger Recording
• Supported Browsers: Internet Explorer 10 or Later, Chrome 57 or Later, Firefox 52 or Later, Safari 12 or Later
• Image Stabilization Mode: EIS
• Image Enhancement Mode: BLC, HLC, 3D-DNR
• Regional Focus Mode: Yes
• Regional Exposure Mode: Yes
• Image Parameters Switch Mode: Yes
• Ethernet: Self-Adaptive 100M RJ45
• Storage Media: Supports microSD/SDHC/SDXC Cards up to 256 GB
• Alarm Input Count: 1
• Alarm Output Count: 1
• General Functions: Mirror, Password Protection, Watermark, IP Address Filter
• Reset Button: Yes
• Power Consumption: Maximum 24 W, Including Maximum 2.6 W for Heater and 11 W for Supplement Light
• IP Rating: IP66
• Protection Features: 6000 V Lightning Protection, Surge Protection, and Voltage Transient Protection
• Operating Conditions: -22 to 149°F / -30 to 65°C <90% Relative Humidity
• Demist Feature: Demist by Heating Glass
• Material of Construction: Aluminum Alloy (ADC12)
