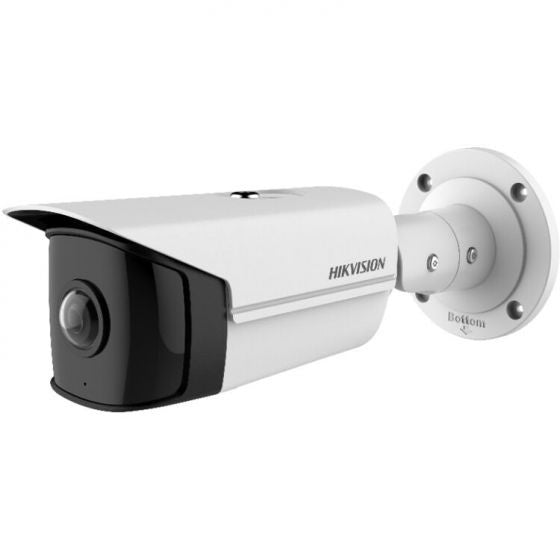

Hikvision DS-2CD2T45G0P-I 4 MP Super Wide Angle Fixed Bullet Network Camera

Product Description

The Hikvision DS-2CD2T45G0P-I is a 4 MP super wide angle fixed bullet network camera delivering high-quality imaging. It features H.265+ compression technology and provides clear imaging against strong back light due to 120 dB true WDR technology. This camera is designed with distortion correction and is water and dust resistant with an IP67 rating.

• High quality imaging with 4 MP resolution
• 180°super wide field of view
• Efficient H.265+ compression technology

Product Highlights

This network camera is ideal for security applications needing a broad field of view and clear, detailed video footage in varied lighting conditions.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2T45G0P-I

Technical Specifications

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Min. Illumination: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: ICR Cut
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Focus: Fixed
• Lens Type & FOV: 1.68mm @ F2.0, horizontal FOV 180°, vertical FOV 101°, diagonal FOV 180°
• Aperture: F2.0
• Lens Mount: M12
• DORI: Detect: 3.6 m, observe: 1.4 m, recognize: 0.8 m, identify: 0.4 m
• IR Range: 20 m
• Wavelength: 850nm
• Smart Supplement Light: Yes
• Max. Resolution: 2688 × 1520
• Main Stream: 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 x 720) 60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 x 720)
• Sub Stream: VGA
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264 /MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Stream Type: Main stream, Sub-stream
• Scalable Video Coding (SVC): H.264, H.265
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• User/Host: Up to 32 users 3 levels: Administrator, Operator and User
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storage: micro SD/SDHC /SDXC (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in free live view: Chrome45.0+, Firefox52.0+ Local service: Chrome41.0+, Firefox30.0+
• Day/Night Switch: Day, Night, Atuo, Schedule
• Image Enhancement: BLC;HLC;EIS;Lens Distortion;3D DNR
• Image Settings: Brigthness Saturation Contrast Sharpness
• SNR: ≥ 50 dB
• Privacy Mask: 4 regions of privacy mask
• On-board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Smart Event: Line crossing detection, intrusion detecction, unattended baggage detextion, object removal detection, face detection, scene change detection
• Web Client Language: 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: privacy mask;heart;mirror;flash log;password reset via e-mail;pixel counter
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC PoE+ (IEEE802.3at Class 4)
• Power Consumption and Current: 12 VDC, 0.6 A, max. 7.2W PoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W
• Power Interface: Φ5.5 mm coaxial power plug
• Material: Metal
• Protection: IP67
• Focal Length: 1.68mm
• Field of View: Horizontal: 180° Vertical: 101° Diagonal: 180°
• Pan/Tilt: No
• Power I/O: 1x DC 1x RJ45
• Number of Lenses: 1
• SKU: DS-2CD2T45G0P-I
• Features: Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
• Manufacturer: Hikvision
• Camera Signal: Network IP
• Connection Type: Wired
• Infrared Distance: 61~100 Feet
• Resolution: 4 Megapixel
• Lens Type: Fixed
• Mount Type: Ceiling, Wall
• Compression Method: H.264, M-JPEG, H.265, H.264+, H.265+
• Durability: Weather Resistant
• Voltage: 12vDC, PoE
• Electronic Shutter: 1/3 s to 1/100,000 s
• Image Device: 1/2.7" Progressive Scan CMOS
• IR Wavelength: 850 nm
• Minimum Scene Illumination: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Operating Humidity: humidity 95% or less (non-condensing)
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• OSD Menu: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, V
• Power Consumption: 12 VDC: max. 7.2W, PoE: max. 8.7W
• Privacy Zone: 4 regions
• Video Output: RJ45
• Weatherproof: IP67
• Digital Noise Reduction: 3D DNR
• Angle of View: Horizontal: 180°, vertical: 101°, diagonal: 180°
• Rotation Angle: 0° to 360°
• IR Distance: 20m/65ft
• Auto Gain Control: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• On Screen Display Menu: Yes
• Privacy Masking: Yes
• Mirror: Yes
• ONVIF: Yes
• Alternative SKUs: DS-2CD2T45G0P-I(1.68MM) HX-BL2T45G0P
• Analytics: Line Crossing Intrusion Detection Face Detection
• Certifications: CE REACH RoHS FCC RCM KC
• Compatible Integration (API): ONVIF Profile G ONVIF Profile S ISAPI SDK
• Compression: H.265 H.265 Plus H.264 H.264 Plus MJPEG
• Detect (ft): 11.81
• Environmental: Outdoor
• Field of View (Diagonal): 180
• Field of View (Horizontal): 180
• Field of View (Vertical): 101
• Identify (ft): 1.31
• Image Enhancements: Auto Gain Control (AGC) Backlight Compensation (BLC) Highlight Compensation (HLC) Electronic Image Stabilization (EIS) Lens Distortion Correction (LDC)
• Lens Size: 1.68mm
• Max Power Consumption: 8.7 Watts
• Max. FPS and Resolution: 25fps at 2688 x 1520
• Max. Storage Capacity: 256 GB
• Minimum Illumination (B/W): 0 lux with IR illumination on
• Minimum Illumination (Color): 0.028 lux at F2.0 AGC ON
• Network Interface: 1x RJ-45 10M/100M self-adaptive Ethernet interface
• Night Vision Range (ft): 65
• Night Vision Type: Night Vision (IR)
• Noise Reduction: 3D DNR
• Observe (ft): 4.59
• Recognize (ft): 2.62
• Remote Users: Up to 32
• Sensor Size: 1/2.7"
• Sensor Type: CMOS
• Storage Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Technology: Network (IP)
• Wide Dynamic Range (WDR): True WDR 120dB
