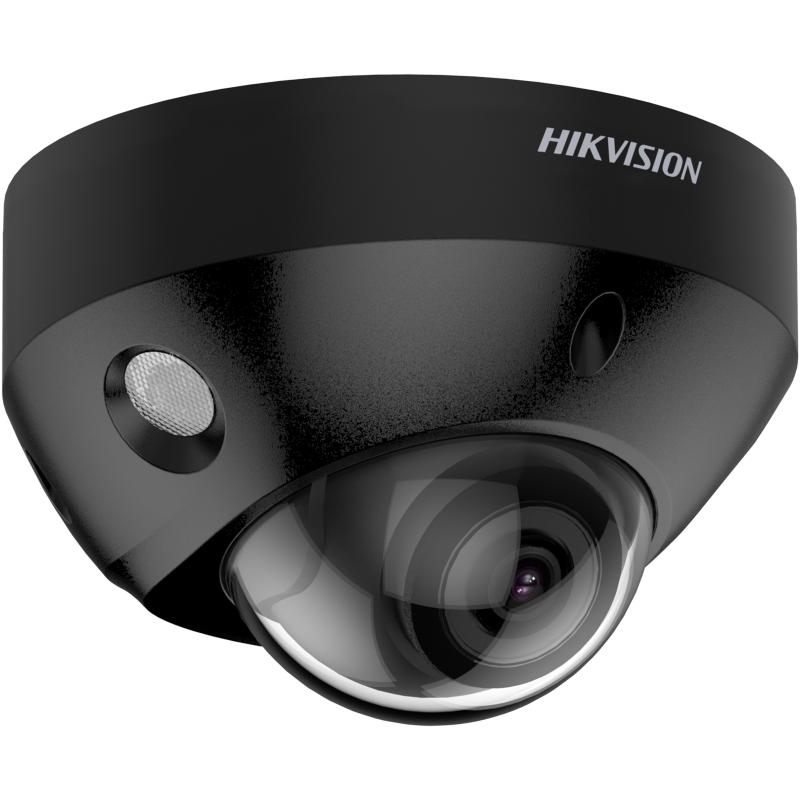

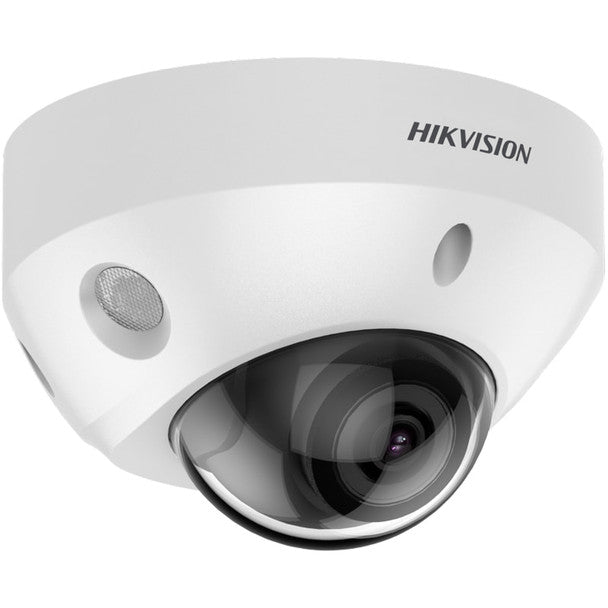

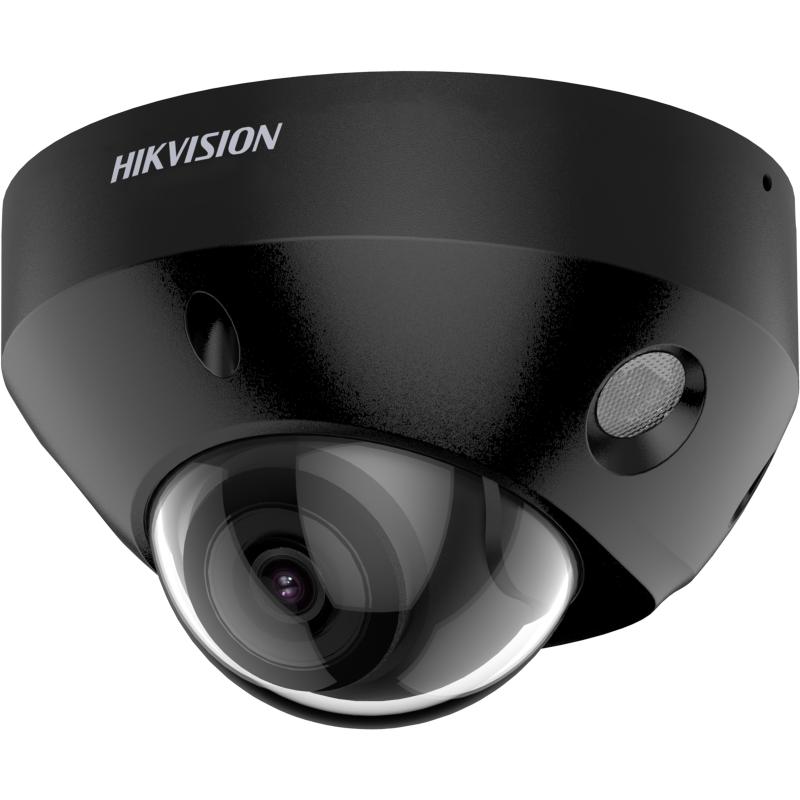

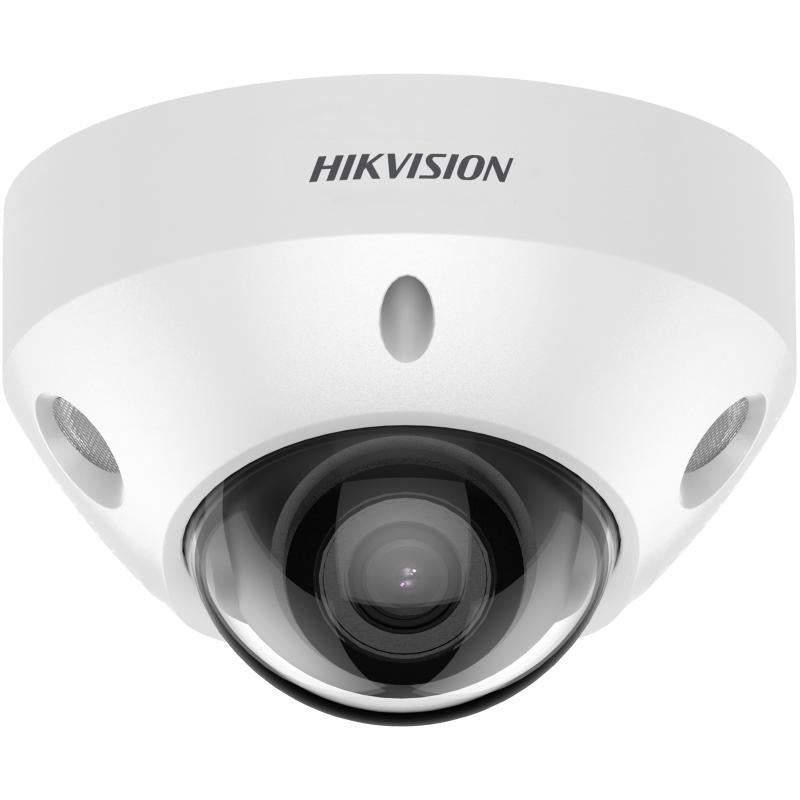

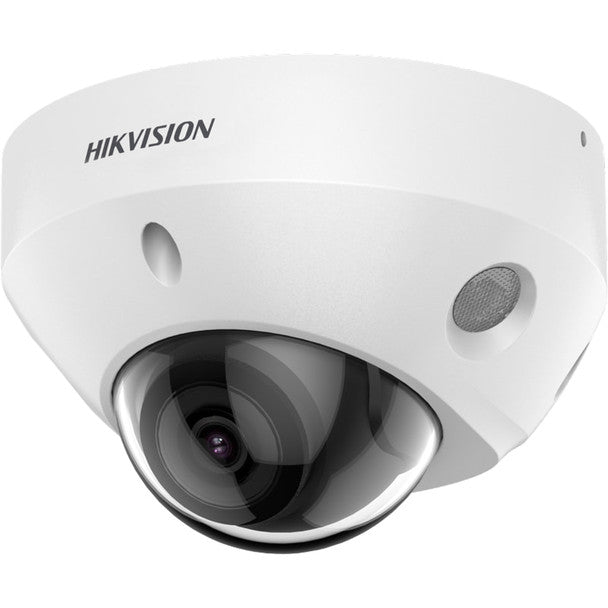

Hikvision DS-2CD2583G2-IS 4MM 8 MP AcuSense Fixed Mini Dome Network Camera

Product Description

The Hikvision DS-2CD2583G2-IS 4MM is an 8 MP AcuSense fixed mini-dome network camera providing high-quality imaging. It features 120 dB WDR technology for clear imaging against strong backlight and efficient H.265+ compression technology. The camera focuses on human and vehicle targets classification based on deep learning and is water and dust resistant (IP67) and vandal resistant (IK08).

• High quality imaging with 8 MP resolution
• Clear imaging against strong backlight due to 120 dB WDR technology
• Efficient H.265+ compression technology

Product Highlights

This mini dome network camera is ideal for outdoor surveillance, offering advanced features like AcuSense technology, weather resistance, and vandal resistance.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2583G2-IS 4MM
• Country of Origin: China

Technical Specifications

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 106.4°, vertical FOV 58.4°, diagonal FOV 124.8° 4 mm, horizontal FOV 87.6°, vertical FOV 44.4°, diagonal FOV 104.9°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field: 2.8 mm: 1.4 m to ∞ 4 mm: 2.1 m to ∞
• DORI 2.8 mm: D: 88 m O: 35 m R: 18 m I: 9 m
• DORI 4 mm: D: 118 m O: 47 m R: 24 m I: 12 m
• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Main Stream 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Main Stream 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• Sub-Stream 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Third Stream 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression Main stream: H.265/H.264/H.264+/H.265+
• Video Compression Sub-stream: H.265/H.264/MJPEG
• Video Compression Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Audio Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): True WDR 120dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
• Built-in Microphone: Yes
• Audio -IS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm -IS: 1 input, 1 output (max. 12 VDC, 20 mA)
• Reset Key: Yes
• Basic Event: Motion detection (human and vehicle targets classfication), video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection, face detection
• Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
• Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
• EMC: FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
• Safety: UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017)
• Environment: CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
• Protection: IP67: IEC 60529-2013,IK08: IEC 62262:2002
• NDAA Compliance: No
• S/N Ratio: ≥ 52 dB
• Power Consumption: 12 VDC
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Operating Humidity: 0.95
• Minimum Scene Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Lens Size: 4mm
• Camera Signal: Network IP
• Angle of View: 4 mm, horizontal FOV 87.6
• Digital Noise Reduction: Yes
• Weatherproof: IP67
• Infrared Distance: 61~100 Feet
• Resolution: 8 Megapixel (4k)
• Voltage: 12vDC, PoE
• Compression Method: H.264, M-JPEG, H.264+, H.265, H.265+
• Connection Type: Wired
• Electronic Shutter: 1/3 s to 1/100,000 s
• Durability: Vandal Resistant, Weather Resistant
• Mount Type: Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
• Audio: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Wide Dynamic Range: Yes
• Mirror: Yes
• Auto Gain Control: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Flickerless: Yes
• Field of View (Horizontal): 87.6
• Max. FPS and Resolution: 20fps at 3840 x 2160
• Sensor Type: CMOS
• Sensor Size: 1/2.8"
• Max. Storage Capacity: 512 GB
• Protection Code: IP67, IK08
• Material: Aluminum, Plastic
• Environmental: Outdoor
• Audio Input: 1x Channel
• Audio Output: 1x Channel
• Camera Style: Mini Dome
• Certifications: FCC, RCM, IC, UL Listed, CB
• Compatible Integration (API): ONVIF Profile G, ONVIF Profile S, ISAPI, SDK
• Detect (ft): 387.14
• Identify (ft): 39.37
• Languages: Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian, English
• Manufacturer Website: https://us.hikvision.com/en
• Max Power Consumption: 8 Watts
• Minimum Illumination (B/W): 0 lux with IR illumination on
• Minimum Illumination (Color): 0.005 Lux at F1.6 AGC On
• Network Interface: 1x RJ-45 10M/100M self-adaptive Ethernet interface
• Night Vision Range (ft): 98
• Night Vision Type: Night Vision (IR)
• Noise Reduction: 3D DNR
• Observe (ft): 154.20
• Storage Humidity: 0% to 95% (non-condensing)
• Storage Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Technology: Network (IP)
• Wavelength (nm): 850
• Image Sensor Type: CMOS
• Maximum Frame Rate: 30fps
• Minimum Focal Length: 4mm
• Night Vision: Yes
• Video Formats: H.264, H.265
• Effective Camera Resolution: 8MP
• Ingress Protection Rating: IP67
• TAA Compliant: No
• Maximum Video Resolution: 3840 x 2160
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -22°F (-30°C)
• Longest Shutter Speed: 1/3 Second
• Shortest Shutter Speed: 1/100000 Second
• Network (RJ-45): Yes
• Focal Length: 4mm
• Lens Included: Yes
• Maximum Focal Length: 4mm
• Remote Management: Yes
• Form Factor: Mini Dome
• Input Voltage: 12V DC
• Recording Formats: 4K
• Storage Type: Memory Card
• Maximum Resolution: 8MP
• Field of View: Diagonal, Horizontal, Vertical
• Power Supply: 12 VDC, PoE (IEEE 802.3af)
• Product Series: AcuSense
• Operating Conditions: -22 to 140°F / -30 to 60°C up to 95% Humidity
• Impact Resistance: Impact-Resistant (IK08)
• Environmental Resistance: Dust/Weather/Water-Resistant (IP67)
• Startup Temperature: -22 to 140°F / -30 to 60°C
• Illumination: 850 nm IR LEDs up to 98.4' / 30 m
• Supported Languages: Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese
• OS Compatibility: Android/iOS
• Minimum Illumination: 0.005 Lux (Color) 0 Lux (Black and White)
• Maximum Aperture: f/1.6
• Max IP Streaming: H.264, H.264+, H.265, H.265+, MJPEG via RJ45 3840 x 2160 up to 20 fps 3200 x 1800 up to 30.00 fps
• Multi-View Streaming: Yes: 3 Streams
• Camera Angle Adjustment: Horizontal: -30 to 30° Vertical: 0 to 75° Rotation: 0 to 360°
• Media/Memory Card Slot: Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
• Audio I/O: 1x Block Input 1x Block Output
• 1- or 2-Way Audio: Two-Way
• Audio Formats: AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
• Built-In Speaker: No
• External Storage Options: NAS
• Analytics: Camera Sabotage/Tampering, Face Detection, Intrusion Detection, Motion Detection, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
• Built-In Installation Aids: Pixel Counter
• Event Trigger: Yes
• Event Action: Recording, Notification, Alarm
• Alarm I/O: 1 / 1
• PoE Support: Yes: PoE 802.3af
• Power I/O: 1x DC Input 1x RJ45 Input
• Connectivity Technology: Wired
• Built-In Microphone: Yes
• Product Model: DS-2CD2583G2-IS
• Product Name: 8 MP AcuSense Fixed Mini Dome Network Camera
• Product Type: Network Camera
