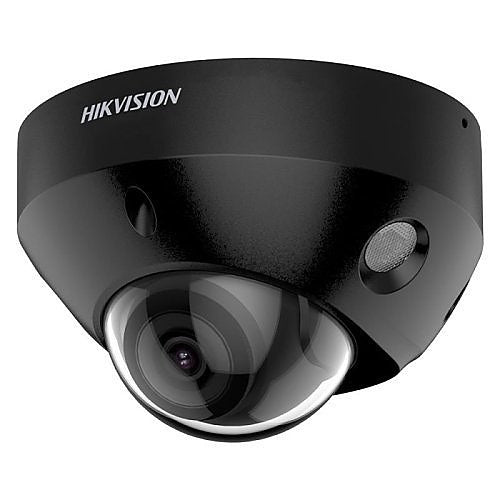

Hikvision Ds-2cd2547g2-ls 2.8mm 4MP Colorvu Mini Dome Camera

Product Description

The HIKVISION ds-2cd2547g2-ls 2.8mm is a 4-megapixel IP mini dome camera engineered for continuous full-color surveillance in low-light and challenging lighting conditions. Built on Hikvision ColorVu technology, it pairs an F1.0 super-aperture lens with a high-performance image sensor to maximize available light intake and deliver vivid color images around the clock. The 2.8mm fixed focal length provides a wide field of view suited for indoor and near-range outdoor coverage. With 130dB wide dynamic range (WDR), the camera maintains detail in scenes with extreme contrast between bright and dark areas. Installation is handled by licensed security integrators and network video system technicians.

This camera is designed for professional IP video surveillance deployments where consistent color imaging is required regardless of lighting conditions. The fixed 2.8mm lens makes it a common choice for entryways, retail spaces, offices, and similar indoor environments where wide-angle coverage is needed. The mini dome form factor allows low-profile ceiling or surface mounting. It operates on a standard IP network infrastructure and is compatible with network video recorders and video management software that support ONVIF or Hikvision's native protocols.

Key Features

• 4MP resolution delivers high-detail color imagery for identification and situational awareness
• F1.0 super-aperture lens collects maximum available light for 24/7 full-color imaging without infrared
• 130dB WDR preserves detail in high-contrast scenes with simultaneous bright and dark zones
• ColorVu technology eliminates the black-and-white night mode common to standard IR cameras
• 2.8mm fixed focal length provides wide field of view for open-area and entry coverage
• Mini dome housing supports discreet ceiling-mount installation in commercial and residential settings

Compatibility

Designed as an OEM-style replacement and standard network camera for IP-based video surveillance systems supporting ONVIF-compliant NVRs and video management platforms.

Installation Notes

Installation should be performed by a qualified security or low-voltage technician familiar with IP camera network configuration and local electrical codes. Power down or disconnect PoE power to the network switch port before handling camera wiring or mounting hardware. Ensure the mounting surface can support the fixture and that conduit or cable management meets local building and low-voltage wiring requirements. Do not overtighten the dome housing during reassembly, as this may affect lens alignment or housing integrity.

Technical Specifications

• Resolution: 4MP
• Lens: 2.8mm fixed
• Aperture: F1.0
• Wide Dynamic Range: 130dB
• Camera Type: IP Mini Dome
• Product Series: ColorVu
• Color: Black

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: ds-2cd2547g2-ls 2.8mm
