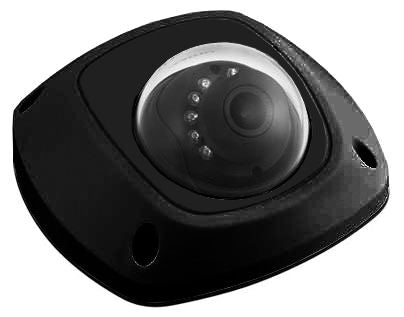

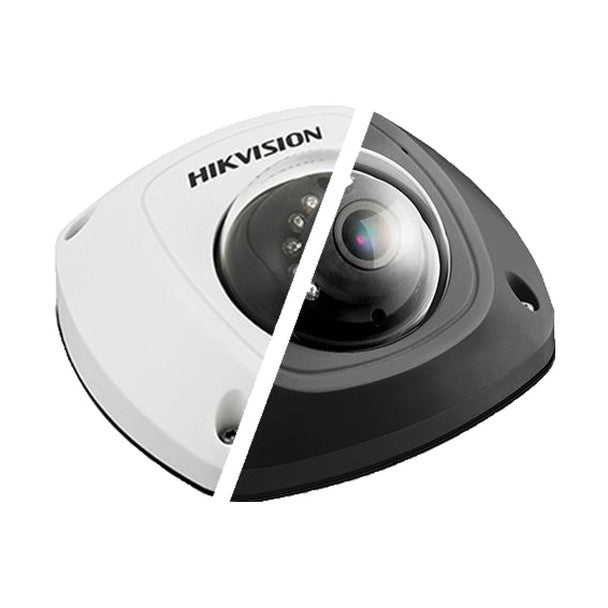

Hikvision DS-2CD2542FWD-ISB-2.8MM 4 megapixel mini dome network camera 2.8mm lens

Product Description

The HIKVISION DS-2CD2542FWD-ISB-2.8MM is a 4 megapixel mini dome network camera with a 2.8mm lens. It features auto gain control, back light compensation and day/night functionality. Suitable for ceiling or wall mount, this camera is both vandal and weather resistant, and supports H.264+ compression.

• 4 MP High Resolution
• Full HD 1080p
• Dual Video Streams
• 2.8 mm Fixed Lens
• 120 dB Wide Dynamic Range
• 3D Digital Noise Reduction

Product Highlights

This mini dome network camera offers high-resolution imaging and excellent low-light performance. It supports wide dynamic range and is designed for both indoor and outdoor use.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2542FWD-ISB-2.8MM

Technical Specifications

• UPC/EAN Code: 813908028218
• Condition: New
• Features: Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
• Brand: Hikvision
• IR Distance: 10m/30ft
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• Power Consumption: Maximum 5 W, maximum 9 W with pan and tilt
• Operating Temperature: -30° to 60° C (-22° to 140° F)
• Operating Humidity: Humidity 95% or less (noncondensing)
• Minimum Scene Illumination: 0.01 lux @ (ƒ/1.2, AGC on), 0 lux with IR, 0.028 lux @ (ƒ/2.0, AGC on), 0 lux with IR
• Lens Size: 2.8mm
• Camera Signal: Network IP
• Lens Type: Fixed
• Rotation Angle: 0° to 360°
• Angle of View: 106°
• Digital Noise Reduction: Yes
• Weatherproof: IP67
• Infrared Distance: 0~60 Feet
• Resolution: 4 Megapixel
• Voltage: PoE
• Compression Method: H.264, M-JPEG, H.264+
• Connection Type: Wired
• Image Device: 1/3"
• Electronic Shutter: 1/3 s to 1/10,000 s
• Durability: Vandal Resistant, Weather Resistant
• Mount Type: Ceiling, Wall
• Audio: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Wide Dynamic Range: Yes
• Mirror: Yes
• ONVIF: Yes
• Auto Gain Control: Yes
• Day/Night: Yes
• Back Light Compensation: Yes
• Additional Features: Mobile App Support (IOS, Android)
• Audio Support: Built-in Microphone
• Camera Style: Dome, Mini Dome
• Compatible Integration (API): ONVIF
• Compression: H.264 Plus, MJPEG, H.264
• Environmental: Outdoor
• Field of View (Horizontal): 106
• Manufacturer Website: https://us.hikvision.com/en
• Max. FPS and Resolution: 20fps at 2688 x 1520
• Max. Storage Capacity: 128 GB
• Night Vision Range (ft): 32
• Night Vision Type: Night Vision (IR)
• Protection Code: IP67
• SD Card Support: SD Card Supported
• Sensor Size: 1/3"
• Sensor Type: CMOS
• Technology: Network (IP)
• Wide Dynamic Range (WDR): True WDR 120dB
• ip: Ipv6
• poe: Yes (802.3Af)
• body: Dome
• lens: 2.8Mm Fixed Focal
• alarm: (1) Input, (1) Output
• audio compression: G.711/G.722.1/G.726/Mp2L2
• audio bit rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-128 Kbps (Mp2L2)
• security: 64/128-Bit Wep, Wpa/Wpa2, Wpa-Psk/Wpa2-Psk, Wps
• analytics: Motion Detection, Tampering Alarm, Network Disconnect, Ip Address Conflict, Storage Exception
• iris type: Fixed
• reset key: Yes
• lens mount: M12
• protection: Ip66, Ik08
• face capture: Supported
• focal length: 2.8Mm
• image sensor: 1/3 In Progressive Scan Cmos
• power supply: 12 Vdc ±10%
• sd card slot: Built-In Micro Sd/Sdhc/Sdxc Slot, Up To 128 Gb
• day and night: Ir Cut Filter
• shutter speed: 1/3 - 1/100000 Sec
• video bitrate: 32 Kbps - 16 Mbps
• 3d positioning: Yes
• image settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Adjustable By Client Software Or Web Browser
• outdoor indoor: Outdoor
• network storage: Nas (Supports Nfs, Smb/Cifs), Auto Network Replenishment (Anr)
• angle adjustment: -30 To 30 Deg Pan, 0-75 Deg Tilt, 0-360 Deg Rotate
• ethernet interface: (1) Rj45 10 M/100 M Self-Adaptive
• built in microphone: Yes
• nightvision color bw: 0.01 Lux @ (F1.2, Agc On), 0 Lux With Ir, 0.028 Lux @ (F2.0, Agc On), 0 Lux With Ir
• video compression type: H.264/Mjpeg/H.264+
• environment noise filtering: Supported
• environmental operating temperature: -22 To 140 Deg F
