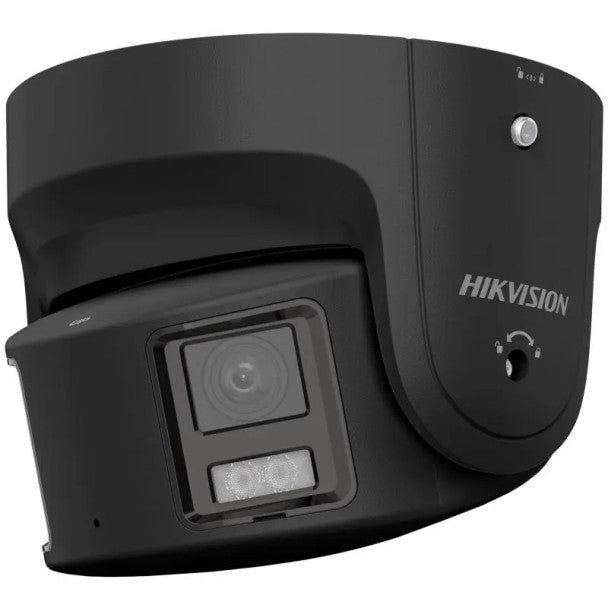

Hikvision DS-2CD2387G2P-LSU/SL 4mm Black 8 MP Panoramic ColorVu Fixed Turret Network Camera

Product Description

The HIKVISION DS-2CD2387G2P-LSU/SL 4MM BLACK is an 8 MP panoramic ColorVu fixed turret network camera, delivering high-quality imaging. It provides a single panoramic image covering all scenes with 24/7 colorful imaging. The camera features H.265+ compression, 130 dB WDR technology for clear imaging against strong back light, and human/vehicle classification based on deep learning. Active strobe light and audio alarm are included.

• High quality imaging with 8 MP resolution
• Presents all scenes covered by the camera in one image
• 24/7 colorful imaging

Product Highlights

This network camera provides comprehensive surveillance with its panoramic view, advanced imaging technology, and smart features for intrusion detection and prevention.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2387G2P-LSU/SL 4MM BLACK

Technical Specifications

• Image Sensor: 2 × 1/1.8" Progressive Scan CMOS
• Max. Resolution: 5120 × 1440
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 30°,tilt: -75° to 75°
• Lens Type: Fixed focal lens, Dual lens: 4 mm
• Focal Length & FOV: 4 mm, horizontal FOV: 180°, vertical FOV: 44°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 3.6 m to ∞
• DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• Main Stream: When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440)
• Sub-Stream: When WDR is On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272) 60 Hz: 15 fps (1920 × 536, 960 × 272) When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272) 60 Hz: 20 fps (1920 × 536, 960 × 272)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream
• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host: Up to 32 users 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 , Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Image Parameters Switch: Yes
• Image Settings: saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch: Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR): WDR 130dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC,HLC,3D DNR
• Privacy Mask: 8 rectangular privacy masks
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: Yes
• Built-in Speaker: Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
• Audio: 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
• Reset Key: Yes
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
• Smart Event: scene change detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
• Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
• Material: Base: metal, cover: metal
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-banding, heartbeat, password reset via email, password protection, one-key reset
• Flashing Light: Yes
• EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
• Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013
• Features: Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
• Brand: Hikvision
• NDAA Compliance: No
• IR Distance: Up to 30 m
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Operating Humidity: 95% or less (non-condensing)
• Minimum Scene Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Lens Size: Dual 4mm
• Camera Signal: Network IP
• Digital Noise Reduction: Yes
• Weatherproof: IP67
• Infrared Distance: 61~100 Feet
• Resolution: 8MP Panoramic
• Voltage: 12vDC, PoE
• Compression Method: H.264, M-JPEG, H.264+, H.265, H.265+
• Connection Type: Wired
• Image Device: 1/1.8" Progressive Scan CMOS
• Electronic Shutter: 1/3 s to 1/100,000 s
• Automatic Gain Control (AGC): Auto/Manual
• Durability: Vandal Resistant, Weather Resistant
• Mount Type: Ceiling, Wall
• Auto Gain Control: Yes
• Day/Night: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Camera Style: Turret
• Compression: H.265
• Max Power Consumption: 12.5 Watts
• Minimum Illumination (Color): 0.0005 Lux @ F1.0
• Night Vision Range (ft): 98
• Power Supply: 12 VDC
• Sensor Size: 2x1/1.8"
• Sensor Type: CMOS
• Storage Humidity: 5% to 95% RH (non-condensing)
• Storage Temperature: -30°C to 60°C (-22°F to 140°F)
• Technology: Network (IP)
• Recommended Uses For Product: Outdoor Security
• Model Name: DS-2CD Series
• Connectivity Technology: Wired
• Special Feature: Night Vision
• Indoor/Outdoor Usage: Outdoor
• Compatible Devices: NVR
• Power Source: Corded Electric
• Connectivity Protocol: wired
• Mounting Type: Surface Mount
• Video Capture Resolution: 4K 8MP
• Number of Items: 1
• Included Components: Mounting Screw
• Form Factor: Turret
• Effective Video Resolution: 8
• Viewing Angle: 180 Degrees
• Night Vision Range: 98 Feet
• Frame Rate: 60 Hz: 15 fps (5120 × 1440)
• Wattage: 15 watts
• Water Resistance Level: Water Resistant
• Batteries Required?: No
• Video encoding: H.265
• Shape: Turret
• Focus Type: 180° Dual Lens Panoramic Ultra Wide Viewing Angle
• Low light technology: Night Color
• Zoom Type: Digital Zoom
• Alert Type: Motion Only
• Light Source Type: LED
• Video Capture Format: MP4
• Specific Uses For Product: Surveillance
• Unit Count: 1.0 Count
• Photo Sensor Technology: CMOS
• Effective Still Resolution: 8 MP
• International Protection Rating: IP67
• Maximum Webcam Image Resolution: 8 MP
• Control Method: App
• Number of IR LEDs: 4
• Privacy Masking: Yes
• Wide Dynamic Range: Yes
• ONVIF: Yes
