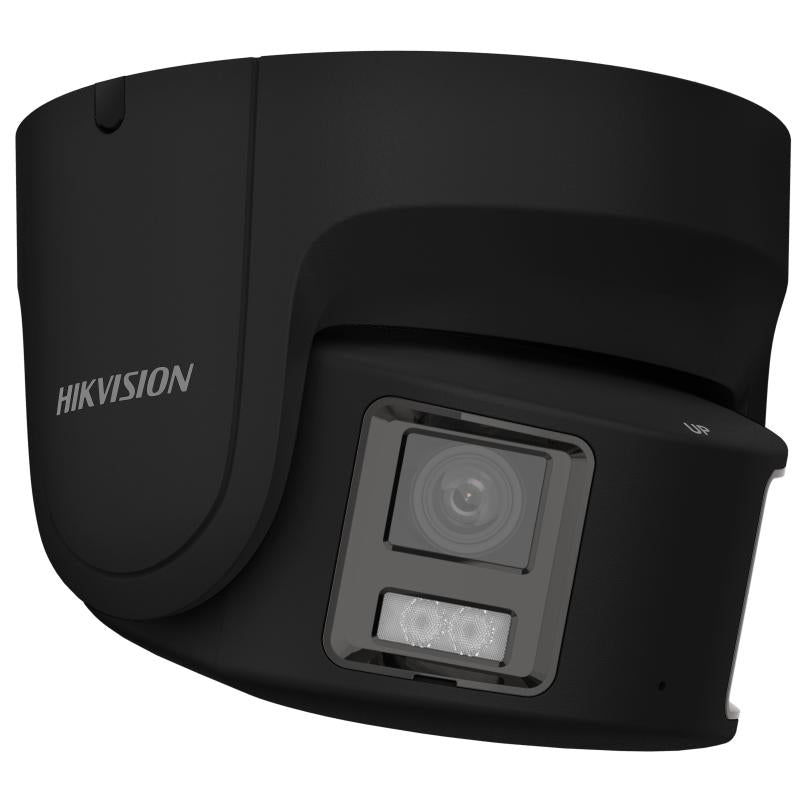

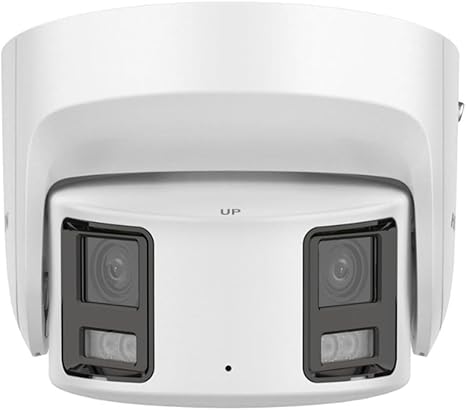

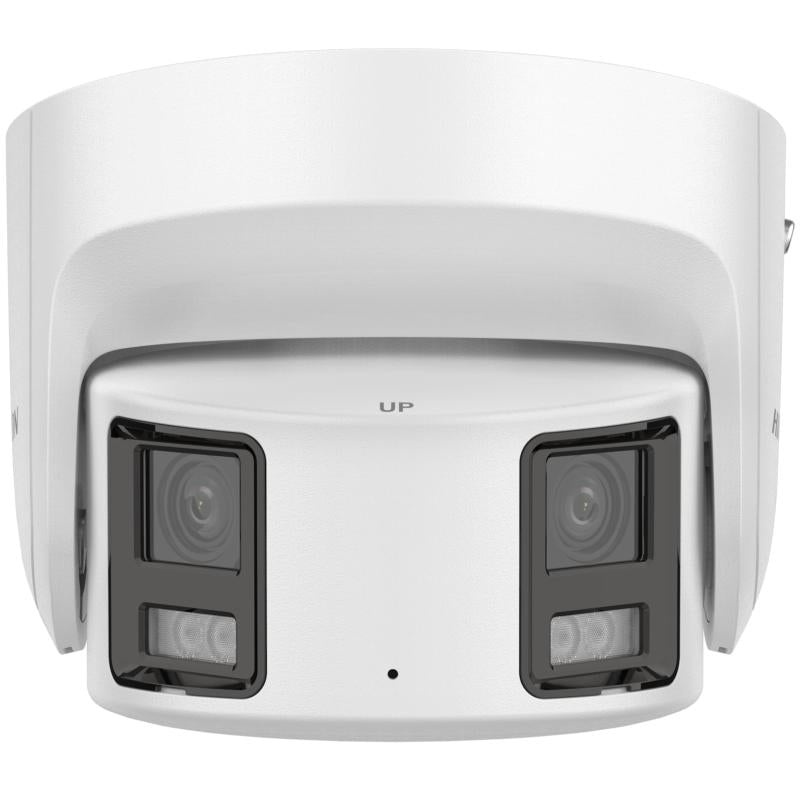

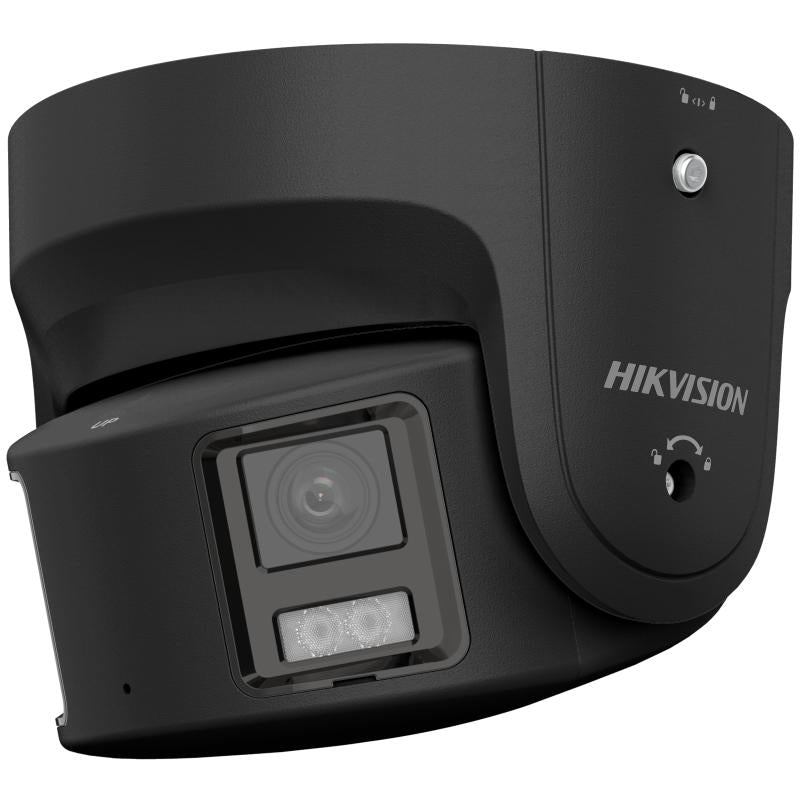

Hikvision DS-2CD2387G2P-LSU/SL 4MM 8 MP Panoramic ColorVu Fixed Turret Network Camera

Product Description

The HIKVISION DS-2CD2387G2P-LSU/SL 4MM is an 8 MP panoramic ColorVu fixed turret network camera providing high-quality imaging with 8 MP resolution. It captures one image that presents all scenes covered by the camera, offering 24/7 colorful imaging. The camera utilizes efficient H.265+ compression technology and provides clear imaging against strong back light due to 130 dB WDR technology.

• High quality imaging with 8 MP resolution
• Presents all scenes covered by the camera in one image
• 24/7 colorful imaging with ColorVu technology

Product Highlights

This network camera features deep learning-based human and vehicle classification, active strobe light and audio alarm, and IP67-rated water and dust resistance.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2387G2P-LSU/SL 4MM
• Country of Origin: China

Technical Specifications

• Image Sensor: 1/1.8"-Type
• Max. Resolution: 5120 × 1440
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 30°,tilt: -75° to 75°
• Lens Type: Fixed focal lens, Dual lens: 4 mm
• Focal Length & FOV: 4 mm, horizontal FOV: 180°, vertical FOV: 44°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 3.6 m to ∞
• DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• Main Stream: When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440)
• Sub-Stream: When WDR is On: 50 Hz: 12.5 fps (1920 × 536, 960 × 272) 60 Hz: 15 fps (1920 × 536, 960 × 272) When WDR is Off: 50 Hz: 20 fps (1920 × 536, 960 × 272) 60 Hz: 20 fps (1920 × 536, 960 × 272)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream
• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host: Up to 32 users 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR, Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 , Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Image Parameters Switch: Yes
• Image Settings: saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch: Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC,HLC,3D DNR
• Privacy Mask: 8 rectangular privacy masks
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: Yes
• Built-in Speaker: Yes
• Audio: Yes
• Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
• Reset Key: Yes
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
• Smart Event: scene change detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
• Power: 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
• Material: Base: metal, cover: metal
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-banding, heartbeat, password reset via email, password protection, one-key reset
• Flashing Light: Yes
• EMC: FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
• Safety: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection: IP67: IEC 60529-2013
• Indoor/Outdoor Usage: Outdoor
• Compatible Devices: NVR
• Power Source: Corded Electric
• Connectivity Protocol: Wired
• Mounting Type: Surface Mount
• Video Capture Resolution: 4K 8MP
• Number of Items: 1
• Included Components: Mounting Screw
• Form Factor: Turret
• Effective Video Resolution: 8
• Viewing Angle: 180 Degrees
• Night Vision Range: 98 Feet
• Frame Rate: 15 fps (5120 × 1440)
• Wattage: 15 watts
• Water Resistance Level: Water Resistant
• Batteries Required?: No
• Video encoding: H.265
• Shape: Turret
• Focus Type: 180° Dual Lens Panoramic Ultra Wide Viewing Angle
• Low light technology: Night Color
• Zoom Type: Digital Zoom
• Alert Type: Motion Only
• Light Source Type: LED
• Video Capture Format: MP4
• Specific Uses For Product: Surveillance
• Unit Count: 1.0 Count
• Photo Sensor Technology: CMOS
• Effective Still Resolution: 8 MP
• International Protection Rating: IP67
• Maximum Webcam Image Resolution: 8 MP
• Control Method: App
• Number of IR LEDs: 4
• Brand Name: Hikvision
• Manufacturer: Hikvision
• Manufacturer Part Number: DS-2CD2387G2P-LSU/SL 4MM
• Product Line: ColorVu IP
• Product Model: DS-2CD2387G2P-LSU/SL
• Product Name: 8 MP Panoramic ColorVu Fixed Turret Network Camera
• Product Series: ColorVu
• Product Type: Network Camera
• Connectivity Technology: Wired
• Effective Camera Resolution: 8MP
• Field of View: Horizontal, Vertical
• Field of View (Vertical): 180°, 44°
• Maximum Aperture: f/1
• Maximum Frame Rate: 20fps
• Minimum Focal Length: 4mm
• Night Vision: Yes
• Night Vision Type: Color
• Video Formats: H.264, H.265, MJPEG
• Image Sensor Type: CMOS
• Night Vision Distance: 98.43 ft
• NDAA Compliant: No
• TAA Compliant: No
• Maximum Video Resolution: 3840 x 2160
• Number of Sensors: 2
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -22°F (-30°C)
• Operating Humidity: 0.95
• Longest Shutter Speed: 1/3 Second
• Shortest Shutter Speed: 1/100000 Second
• Network (RJ-45): Yes
• Focal Length: 4mm
• Lens Included: Yes
• Maximum Focal Length: 4mm
• Remote Management: Yes
• Durability: Dust Resistant, Waterproof
• Input Voltage: 12V DC
• Mount Type: Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
• Storage Type: Memory Card
• Maximum Resolution: 8MP
• Condition: New
• Features: Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
• IR Distance: Up to 30 m
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F).
• Minimum Scene Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Lens Size: 4mm
• Camera Signal: Network IP
• Digital Noise Reduction: Yes
• Weatherproof: IP67
• Infrared Distance: 61~100 Feet
• Resolution: 8 Megapixel (4k)
• Voltage: 12vDC, PoE
• Compression Method: H.264, M-JPEG, H.264+, H.265, H.265+
• Connection Type: Wired
• Image Device: 1/1.8" Progressive Scan CMOS
• Electronic Shutter: 1/3 s to 1/100,000 s
• Automatic Gain Control (AGC): Auto/Manual
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• ONVIF: Yes
• Auto Gain Control: Yes
• Day/Night: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Field of View (Horizontal): 180°
• Pan/Tilt: No
• Built-In Microphone: Yes
• Power I/O: 1x DC Input 1x RJ45 Input
• Number of Lenses: 2
• Effective Sensor Resolution: 8 Megapixel
• DORI Coverage With 4mm Lens Detect: At 252.7' / 77.0 m
• DORI Coverage With 4mm Lens Observe: At 98.3' / 30.0 m
• DORI Coverage With 4mm Lens Recognize: At 49.3' / 15.0 m
• DORI Coverage With 4mm Lens Identify: At 23' / 7.0 m
• Shutter Speed: 1/100000 to 1/3 Second
• Minimum Illumination (Color): 0.0005 Lux (Color) 0 Lux (Color)
• Max IP Streaming via RJ45: 5120 x 1440 up to 20 fps
• Multi-View Streaming: Yes
• Camera Angle Adjustment (Horizontal): -30 to 30°
• Camera Angle Adjustment (Vertical): -75 to 75°
• Media/Memory Card Slot: Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]
• Audio I/O: 1x Block Input 1x Block Output
• 1- or 2-Way Audio: Two-Way
• Audio Formats: AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
• External Storage Options: NAS
• Analytics: Entering/Exiting, Intrusion Detection, Motion Detection, People Detection, Scene Change Detection, Vehicle Detection, Virtual-Line Crossing Detection
• Event Trigger: Yes
• Event Action: Recording, Notification, Alarm
• Alarm I/O: 1 / 1
• PoE Support: Yes: PoE 802.3af
• Power Consumption Power Supply: 12 VDC 10.5 W
• Power Consumption PoE: 12.5 W
• Operating Conditions: -22 to 140°F / -30 to 60°C up to 95% Humidity
• Environmental Resistance: Weather/Dust/Water-Resistant (IP67)
• Startup Temperature: -22 to 140°F / -30 to 60°C
• Materials: Metal
• Certifications: CB, CE, EN, FCC, IC, ICES, IEC, RCM, REACH, RoHS, UL, WEEE
• White LEDs: up to 98.4' / 30 m
• Supported Languages: Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese
• OS Compatibility: Android/iOS
