Hikvision DS-2CD2387G2-LU 4mm 8MP ColorVu Fixed Turret Network Camera with 4mm Fixed Lens

Product Description

The HIKVISION DS-2CD2387G2-LU 4MM is an 8MP ColorVu fixed turret network camera with a 4mm fixed lens. Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. It focuses on human and vehicle targets classification based on deep learning.

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology

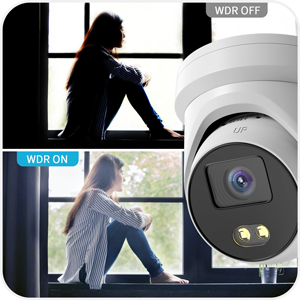

• Clear imaging against strong backlight due to 130 dB WDR technology

Product Highlights

This 8MP camera provides high-quality imaging, efficient H.265+ compression, and clear imaging against strong backlight. It features a built-in microphone, human/vehicle target classification, 24/7 colorful imaging, and is water and dust resistant.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2387G2-LU 4MM

Technical Specifications

• Compatible Devices: Smartphone
• Power Source: Corded Electric
• Connectivity Protocol: Ethernet
• Controller Type: Iris
• Mounting Type: Wall Mount
• Video Capture Resolution: 4k
• Number of Items: 1
• Number of Channels: 8
• Wireless Communication Technology: PoE
• Form Factor: Turret
• Material: Metal
• Batteries Required?: No
• Low light technology: Night Color
• Alert Type: Motion Only
• Room Type: Classroom, Kitchen, Living Room, Office
• Light Source Type: Infrared
• Video Capture Format: MP4
• Specific Uses For Product: Surveillance
• Unit Count: 1.0 Count
• Effective Still Resolution: 8 MP
• International Protection Rating: IP67
• Maximum Webcam Image Resolution: 8 MP
• Control Method: App
• Image Sensor: 1/1.2" Progressive Scan CMOS
• Focal Length: 4mm
• Field of View: Horizontal: 88° Vertical: 47° Diagonal: 104°
• Pan/Tilt: No
• Built-In Microphone: -LU: Yes
• Power I/O: 1x DC 1x RJ45
• Lens Mount: M16
• Number of Lenses: 1
• Effective Sensor Resolution: 8 Megapixel
• IR Cut Filter: Yes Mechanical
• Day/Night: Yes
• DORI Coverage: With 2.8 to 4mm Lens: Detect: 315.0 to 334.6' / 96.0 to 102.0 m Observe: 124.7 to 131.2' / 38 to 40 m Recognize: 62.3 to 65.6' / 19 to 20 m Identify: 29.5 to 32.8' / 9.0 to 10.0 m
• Shutter Speed: 1/3 s to 1/100,000 s
• Automatic Gain Control: Yes
• Minimum Illumination: 0.0005 Lux
• Maximum Aperture: f/1
• Max IP Streaming via RJ45: 3840 x 2160 up to 24.00 fps 3200 x 1800 up to 30.00 fps
• Multi-View Streaming: Yes: 3 Streams
• Camera Angle Adjustment: Horizontal: 0 to 360° Vertical: 0 to 75°
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Media/Memory Card Slot: Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
• Other I/O: 1x RJ45
• 1- or 2-Way Audio: One-Way
• Audio Formats: AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
• External Storage Options: NAS
• Analytics: Camera Sabotage/Tampering, Entering/Exiting, Face Detection, Intrusion Detection, Motion Detection, People Detection, Scene Change Detection, Vehicle Detection, Virtual-Line Crossing Detection
• Event Trigger: Yes
• Event Action: Recording, Notification, Alarm
• Alarm I/O: No
• PoE Support: Yes: PoE 802.3af
• Power Consumption: Power Supply: 5.5 W PoE: 6.5 W
• Operating Conditions: -22 to 140°F / -30 to 60°C up to 95% Humidity
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Environmental Resistance: Dust/Water-Resistant (IP67)
• Certifications: CE, WEEE, UL Listed, CB, IC, RCM, REACH
• Illumination: 2x Spotlights up to 98' / 29.8 m
• Supported Languages: Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese
• OS Compatibility: Android/iOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color:0.0005 Lux @ (F1.0, AGC ON)
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Lens Type: Fixed Lens
• Focal Length & FOV: 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°;4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
• Iris Type: Fixed
• Aperture: F1.0
• Depth Of Field: 2.8 mm: 3.1 m to ∞;4 mm: 3.6 m to ∞
• DORI: 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m;4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 24 fps (3840 × 2160);30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC: H.264 and H.265 encoding
• Region Of Interest (ROI: 1 fixed region for main stream and sub-stream
• Environment Noise Filtering: -U: Yes
• Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11;Plug-in free live view : Chrome 57.0+, Firefox 52.0+;Local service: Chrome 57.0+, Firefox 52.0+
• Wide Dynamic Range (WDR: 130 dB
• Privacy Mask: 8 programmable polygon privacy masks, mask color or mosaic configurable
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle));Scene change detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
• Face Capture: Yes
• Power Type: -L: 12 VDC, 0.42 A, max. 5 W;PoE: 802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W;-LU: 12 VDC, 0.46 A, max. 5.5 W;PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
• Operating Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditiona
• General Function: Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
• Software Reset: Yes
• EMC: FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC (ICES-003: Issue 7);KC (KN32: 2015, KN35: 2015)
• Safety: UL (UL 62368-1);CB (IEC 62368-1: 2014+A11);CE-LVD (EN 62368-1: 2014/A11: 2017)
• Environment: CE-RoHS (2011/65/EU);WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
• Protection: IP67: IEC 60529-2013
• Product Series: Hikvision ColorVu Series
• Lens Size: 4mm
• Max Power Consumption: 6.5 Watts
• Max. FPS and Resolution: 24fps at 8MP (4K)
• Max. Storage Capacity: 256 GB
• Minimum Illumination (Color): 0.0005 Lux at F1.0 AGC ON
• Network Interface: 1x RJ-45 10M/100M Base-TX Ethernet
• Night Vision Range (ft): 98
• Night Vision Type: Night Vision (Color - White Light)
• Noise Reduction: 3D DNR
• Power Supply: 12 VDC, PoE (IEEE 802.3af)
• Remote Users: Up to 32
• Resolution: 8MP (4K)
• SD Card Support: SD Card Supported
• Sensor Size: 1/2"
• Sensor Type: CMOS
• Special Technologies: Hikvision ColorVu
• Technology: Network (IP)
• Wide Dynamic Range (WDR): WDR 130dB
• Features: ColorVu
• Frame Rate: High
• Product Type: Turret
• Connectivity: Wired
• IP Rating: IP67
