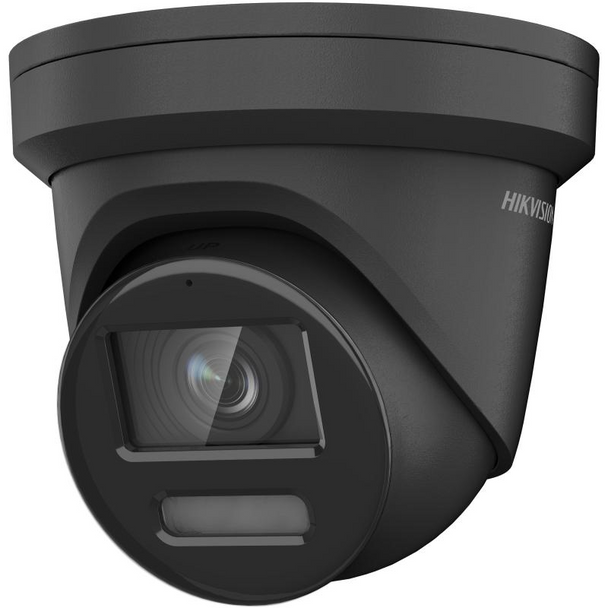

Hikvision DS-2CD2387G2-LU 2.8MM BLACK 8 MP ColorVu Fixed Turret Network Camera 2.8MM

Product Description

The HIKVISION DS-2CD2387G2-LU 2.8MM BLACK is an 8 MP ColorVu fixed turret network camera providing high-quality imaging. It features efficient H.265+ compression technology and clear imaging against strong backlight due to 130 dB WDR technology. The camera offers 24/7 colorful imaging and is water and dust resistant (IP67).

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Water and dust resistant (IP67)

Product Highlights

This Hikvision ColorVu camera delivers 24/7 vivid color surveillance, human and vehicle target classification, and is suitable for outdoor and indoor use.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2387G2-LU 2.8MM BLACK

Technical Specifications

• Resolution: 8 Megapixel
• Image Sensor: 1/1.2" Progressive Scan CMOS
• Lens Size: 2.8mm
• Lens Type: Fixed
• Aperture: F1.0
• Field of View (Horizontal): 102
• Wide Dynamic Range (WDR): 130 dB
• Minimum Illumination (Color): 0.0005 Lux
• Night Vision Range: 98 Feet
• IR Distance: 30m/98.42ft
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Operating Humidity: 95% or less (non-condensing)
• Power Supply: 12 VDC PoE (IEEE 802.3af)
• Power Consumption: 12 VDC, 0.46 A, max. 5.5 W, PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
• Compression Method: H.264, M-JPEG, H.265, H.264+, H.265+
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Mount Type: Ceiling, Wall
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Weatherproof: IP67
• International Protection Rating: IP67
• Material: Metal
• Audio: Yes
• Built-in Microphone: -LU: Yes
• Day/Night: Yes
• Digital Noise Reduction: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Auto Gain Control: Yes
• Flickerless: Yes
• Mirror: Yes
• Electronic Shutter: 1/3 s to 1/100,000 s
• Minimum Scene Illumination: Color:0.0005 Lux @ (F1.0, AGC ON)
• Recommended Uses For Product: indoor or outdoor
• Connectivity Technology: Wired
• Special Feature: HD Resolution
• Indoor/Outdoor Usage: Outdoor
• Compatible Devices: Desktop, Smartphone, Tablet
• Power Source: Corded Electric
• Connectivity Protocol: Ethernet
• Controller Type: Android
• Mounting Type: Ceiling Mount
• Video Capture Resolution: 4k
• Wireless Communication Technology: PoE
• Form Factor: Dome
• Voltage: 12 Volts
• Low light technology: Night Color
• Alert Type: Motion Only
• Room Type: Classroom, Kitchen, Living Room, Office
• Video Capture Format: MPEG H
• Specific Uses For Product: Surveillance
• Unit Count: 1.0 Count
• Effective Still Resolution: 8 MP
• Maximum Webcam Image Resolution: 8 MP
• Fixed focal length & FOV: 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Environment Noise Filtering: -U: Yes
• Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
• Privacy Mask: 8 programmable polygon privacy masks, mask color or mosaic configurable
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
• Face Capture: Yes
• General Function: Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
• Software Reset: Yes
• EMC: FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
• Safety: UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017)
• Environment: CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
• Protection: IP67: IEC 60529-2013
• Durability: Weather Resistant
• Camera Signal: Network IP
• Connection Type: Wired
• Infrared Distance: 61~100 Feet
• Storage Temperature: -30 °C to +60 °C (-22 °F to +140 °F)
• Language: 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
