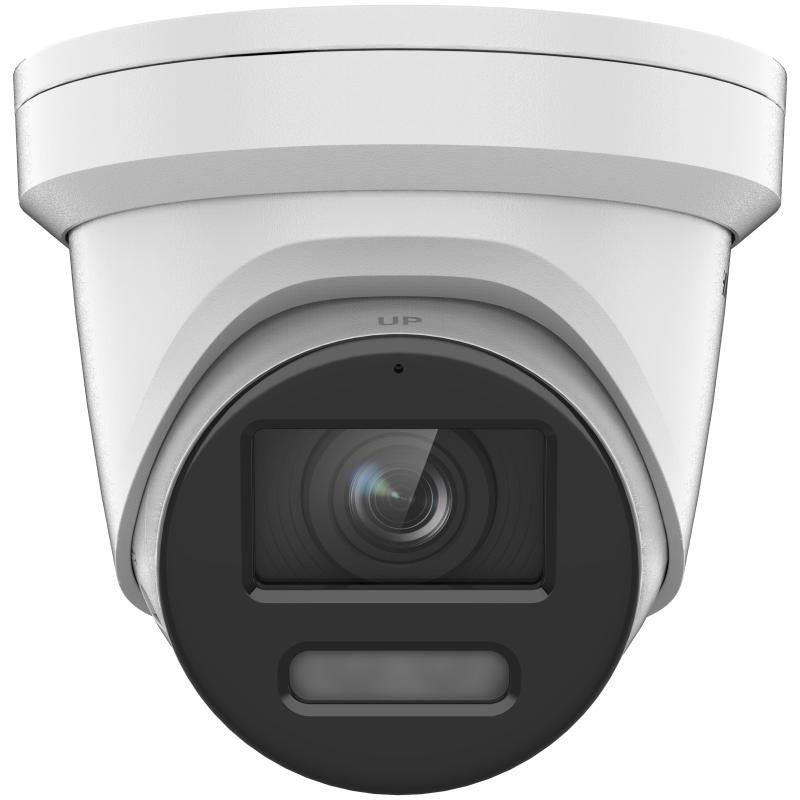

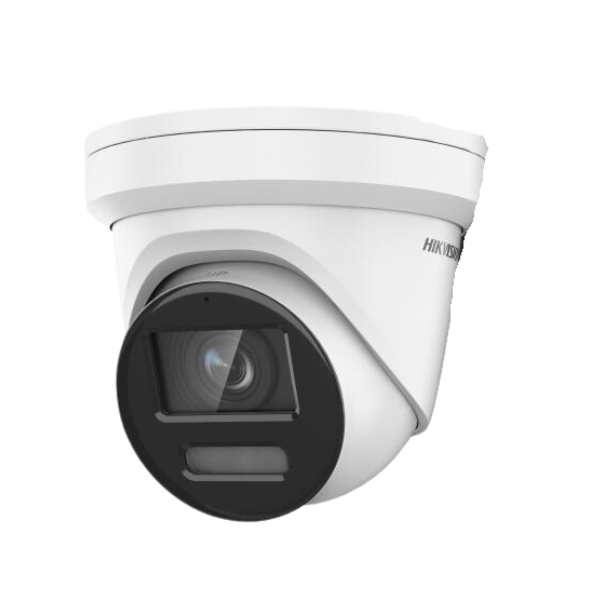

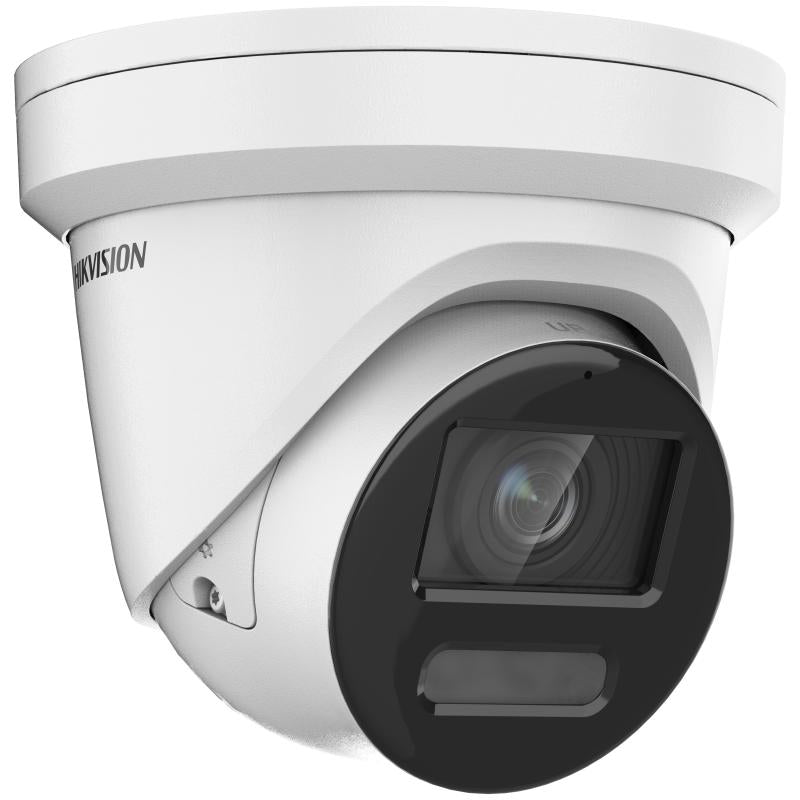

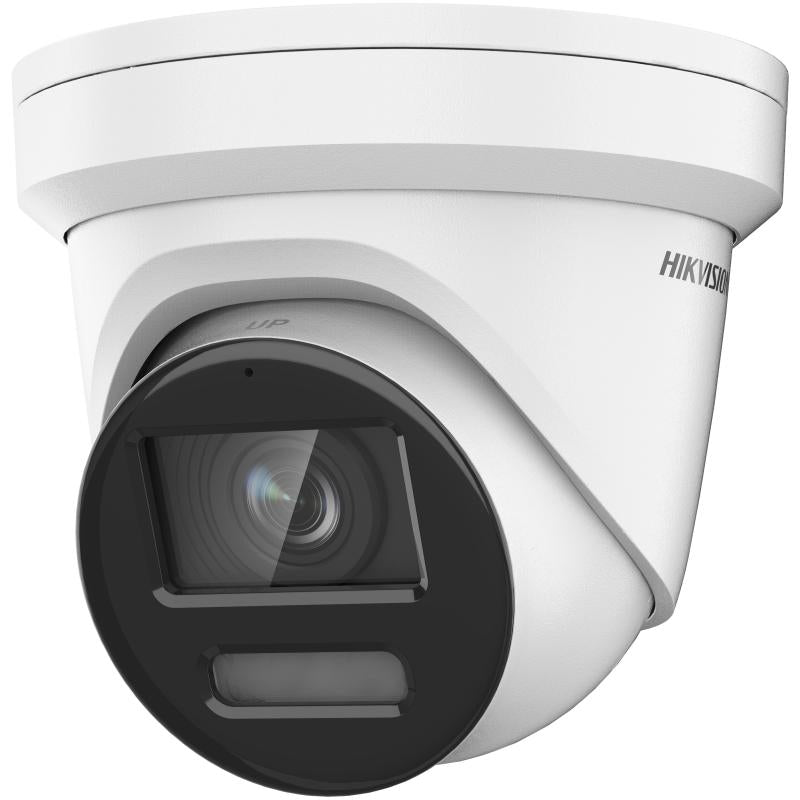

Hikvision DS-2CD2387G2-LU 2.8MM 8 MP ColorVu Fixed Turret Network Camera

Product Description

The Hikvision DS-2CD2387G2-LU 2.8MM is an 8 MP ColorVu fixed turret network camera providing high-quality imaging. It utilizes efficient H.265+ compression technology and provides clear imaging against strong backlight due to 130 dB WDR technology. It is also water and dust resistant (IP67).

• Features efficient H.265+ compression technology.
• Provides clear imaging against strong backlight due to 130 dB WDR technology.
• Water and dust resistant (IP67).

Product Highlights

This network camera delivers high-resolution imaging and reliable performance in various environmental conditions, with advanced features for enhanced security and monitoring.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2387G2-LU 2.8MM
• Country of Origin: China

Technical Specifications

• Image Sensor: 1/1.2″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color：0.0005 Lux @ (F1.0, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Day & Night: 24/7 Color imaging
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 2.8 mm: 3.1 m to ∞ 4 mm: 3.6 m to ∞
• DORI: 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Environment Noise Filtering: -U: Yes
• Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
• Wide Dynamic Range (WDR): 130 dB
• Privacy Mask: 8 programmable polygon privacy masks, mask color or mosaic configurable
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
• Built-in Microphone: -LU: Yes
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
• Face Capture: Yes
• Power: 12 VDC, 0.46 A, max. 5.5 W PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
• Material: Cover: metal, main body: metal
• Effective Camera Resolution: 8MP
• Field of View: Diagonal, Horizontal, Vertical
• Maximum Frame Rate: 30fps
• Minimum Focal Length: 2.8mm
• Night Vision: Yes
• Night Vision Type: Color
• Video Formats: H.264, H.265, MJPEG
• Image Sensor Type: CMOS
• Night Vision Distance: 98.43 ft
• Wide Dynamic Range: Yes
• Ingress Protection Rating: IP67
• NDAA Compliant: No
• TAA Compliant: No
• Maximum Video Resolution: 3840 x 2160
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -22°F (-30°C)
• Operating Humidity: 0.95
• Longest Shutter Speed: 1/3 Second
• Shortest Shutter Speed: 1/100000 Second
• Network (RJ-45): Yes
• Focal Length: 2.8mm
• Lens Included: Yes
• Maximum Focal Length: 2.8mm
• Remote Management: Yes
• Durability: Dust Resistant, Waterproof
• Form Factor: Turret
• Input Voltage: 12V DC
• Mount Type: Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
• Recording Formats: 4K
• Storage Type: Memory Card
• Maximum Resolution: 8MP
• Country of Origin: CN
• Environmental Certification: REACH, RoHS, WEEE
• Environmentally Friendly: Yes
• Features: 3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Auto Gain Control, Back Light Compensation (BLC), Built-in Microphone, Cross Line Detection, Day/Night, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Region of Interest, SD Card Local Storage, White Balance, Wide Dynamic Range
• Indoor/Outdoor: Indoor
• Electronic Shutter: 1/3 s to 1/100,000 s
• Minimum Scene Illumination: Color:0.0005 Lux @ (F1.0, AGC ON)
• Power Consumption: 12 VDC, 0.46 A, max. 5.5 W, PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
• Privacy Zone: 8 programmable polygon privacy masks, mask color or mosaic configurable
• Digital Noise Reduction: 3D DNR
• Angle of View: 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
• IR Distance: 30m/98.42ft
• Audio: Yes
• Auto Gain Control: Yes
• Day/Night: Yes
• Flickerless: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Mirror: Yes
• Maximum Aperture: f/1
