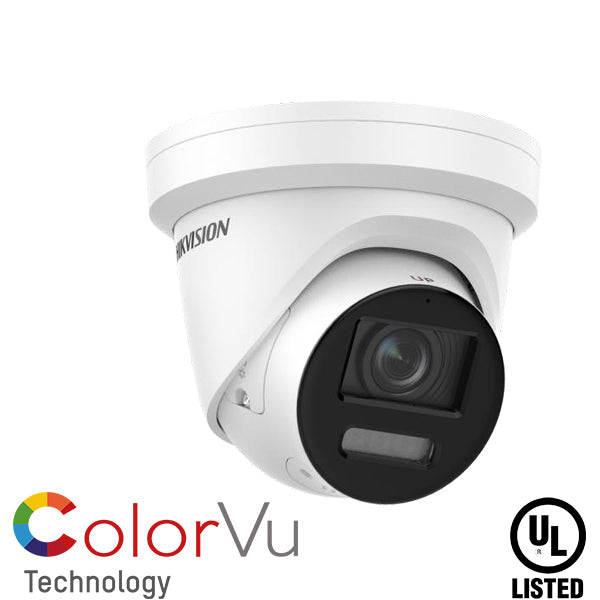

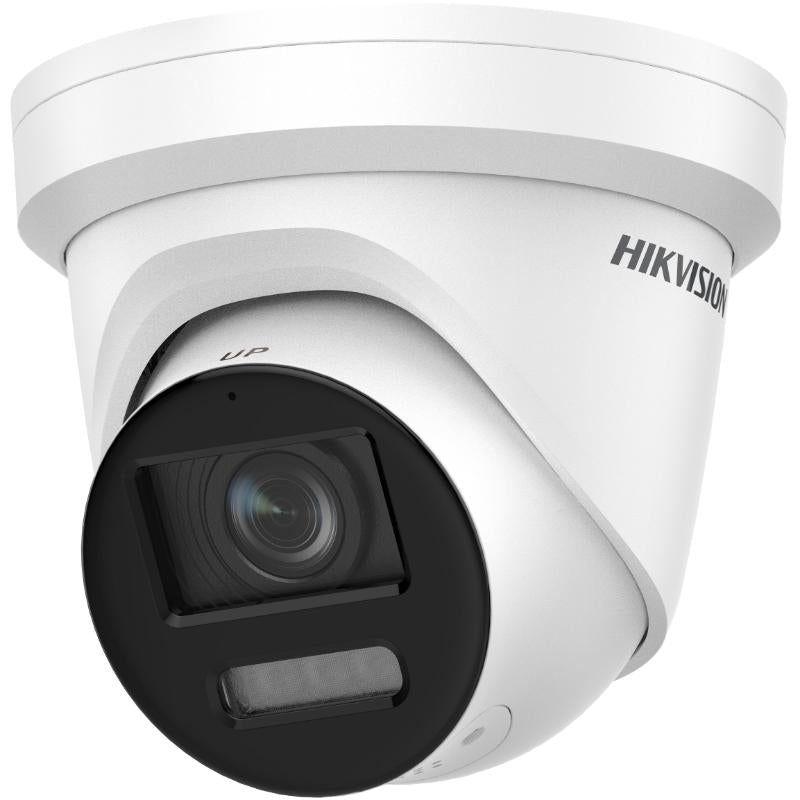

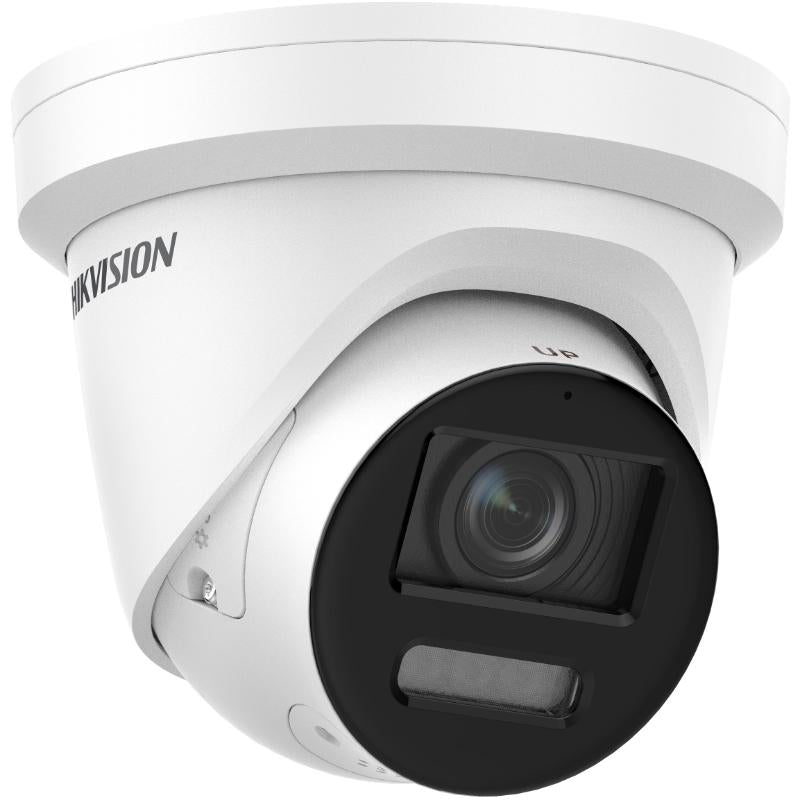

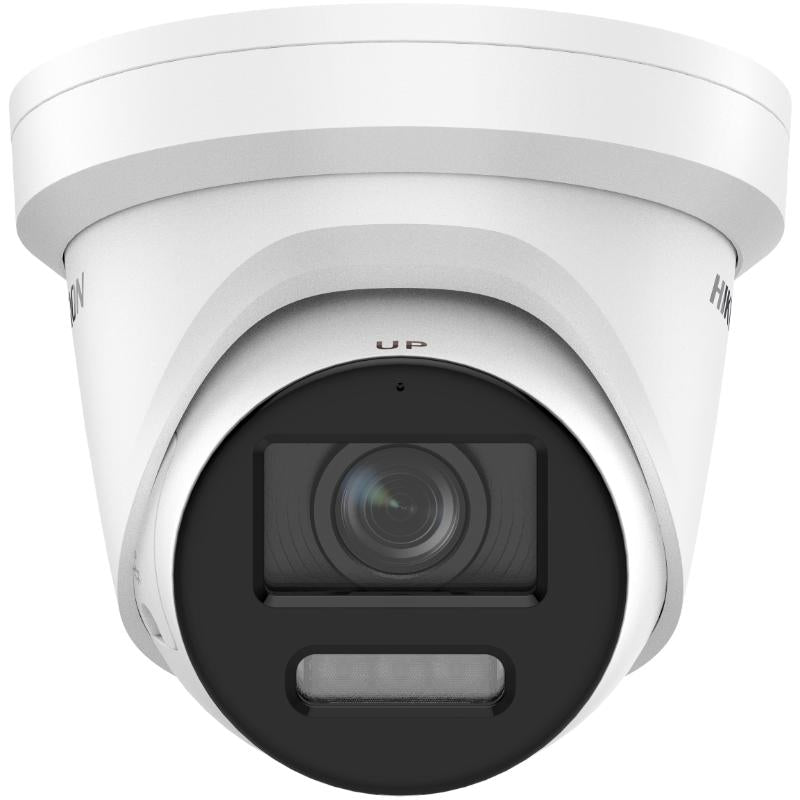

Hikvision DS-2CD2387G2-LSU/SL 2.8MM 8 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera

Product Description

The Hikvision DS-2CD2387G2-LSU/SL 2.8MM is a fixed turret network camera delivering high-quality 8 MP resolution. It utilizes efficient H.265+ compression and 130 dB WDR technology for clear imaging against strong backlights. The camera focuses on human and vehicle targets classification based on deep learning and provides 24/7 colorful imaging.

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology

Product Highlights

This camera features active strobe light and audio alarm, two-way audio, and is water and dust resistant (IP67).

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2387G2-LSU/SL 2.8MM
• Country of Origin: China

Technical Specifications

• Image Sensor: 1/1.2″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color：0.0005 Lux @ (F1.0, AGC ON)，0 Lux with white light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: 24/7 Color imaging
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
• Lens Mount: M mount
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 2.8 mm: 4 m to ∞ 4 mm: 6.2 m to ∞
• DORI: 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Privacy Mask: 8 programmable polygon privacy masks
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: Yes
• Built-in Speaker: 1.5 W, 10 cm: 95 dB
• Audio: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
• Reset Key: Yes
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger record, trigger capture, send email
• Face Capture: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
• Power: 12 VDC ± 25%, 0.63 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A
• Material: Cover: metal, main body: metal
• Dimension: Ø138.3 mm × 120.1 mm (Ø5.4" × 4.7")
• Weight: Approx. 900 g (2 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
• EMC: FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
• Safety: UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017)
• Environment: CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
• Protection: IP67: IEC 60529-2013
• Compatible Devices: Smartphone
• Power Source: Corded Electric
• Connectivity Protocol: Ethernet
• Controller Type: Iris
• Mounting Type: Wall Mount
• Video Capture Resolution: 4k
• Number of Channels: 2
• Wireless Communication Technology: PoE
• Form Factor: Turret
• Effective Video Resolution: 8 MP
• Wattage: 8 watts
• Low light technology: Night Color
• Alert Type: Motion Only
• Room Type: Classroom, Kitchen, Living Room, Office
• Video Capture Format: MP4
• Specific Uses For Product: Surveillance
• Unit Count: 1.0 Count
• Photo Sensor Technology: CMOS
• Effective Still Resolution: 8 MP
• International Protection Rating: IP67
• Maximum Webcam Image Resolution: 8 MP
• Control Method: Remote
• Product Dimensions: 6.69 x 6.69 x 5.91 inches
• Input Voltage: 12V DC
• Maximum Frame Rate: 30fps
• Night Vision: Yes
• Night Vision Type: Color
• Video Formats: H.264, H.265, MJPEG
• Wide Dynamic Range: Yes
• Maximum Video Resolution: 3840 x 2160
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -22°F (-30°C)
• Operating Humidity: 0.95
• Longest Shutter Speed: 1/3 Second
• Shortest Shutter Speed: 1/100000 Second
• Network (RJ-45): Yes
• Focal Length: 2.8mm
• Lens Included: Yes
• Maximum Focal Length: 2.8mm
• Remote Management: Yes
• Height: 4.7"
• Diameter: 5.4"
• Mount Type: Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
• Storage Type: Memory Card
• Maximum Resolution: 8MP
