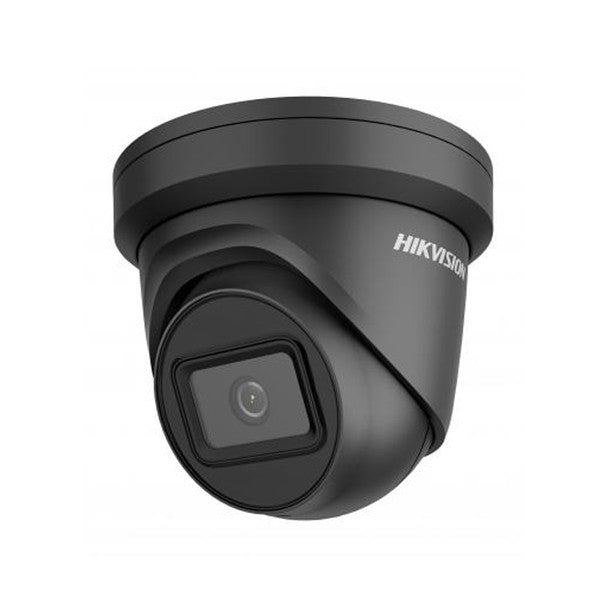

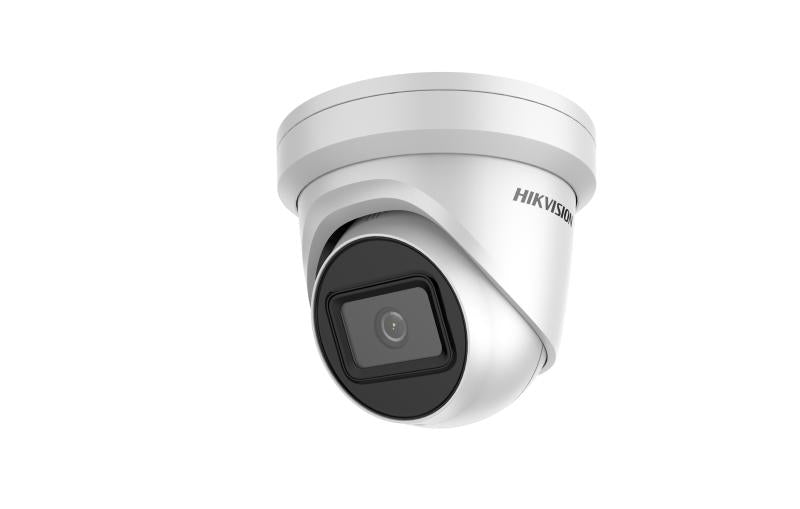

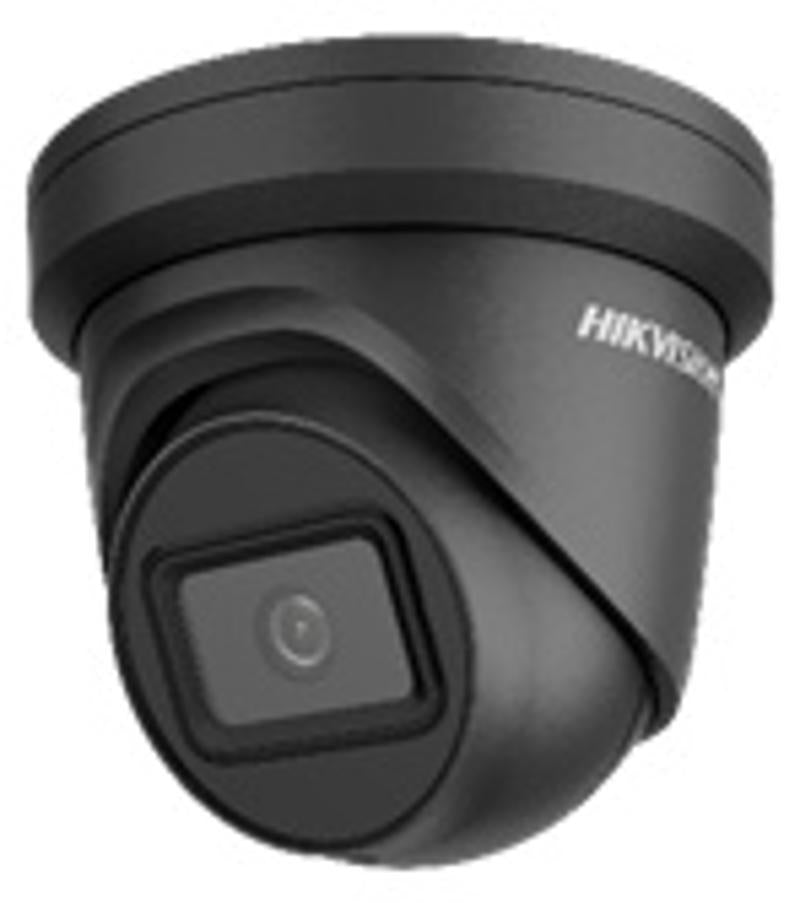

Hikvision DS-2CD2385G1-IB 2.8MM 4k Powered-by-DarkFighter Fixed Turret Network Camera

Product Description

The Hikvision DS-2CD2385G1-IB 2.8MM is a high-quality 4K fixed turret network camera providing high-resolution imaging. Excellent low-light performance is achieved via powered-by-DarkFighter technology. H.265+ compression technology assures savings in bandwidth and storage. It features clear imaging against strong back light due to 120 dB true WDR technology and is water and dust resistant with an IP67 rating.

• High quality imaging with 8 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology

Product Highlights

This Hikvision turret camera is ideal for outdoor security, offering robust construction and advanced features for reliable surveillance.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2385G1-IB 2.8MM

Technical Specifications

• Image Sensor: 1/2" Progressive Scan CMOS
• Min. Illumination: Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Focus: Fixed
• Lens Type: Fixed Lens
• FOV: 2.8 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131° 4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8° 6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°
• Aperture: F1.6
• Lens Mount: M12
• IR Range: Up to 30 m
• Wavelength: 850 nm
• Max. Resolution: 3840 × 2160
• Main Stream: 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream: 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240),
• Video Compression: Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.266,
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Region of Interest (ROI): Support 1 fixed region for main stream and sub stream separately
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User,
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storage: Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm Trigger: Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Day/Night Switch: Day/Night/Auto/Schedule
• DNR: 3D DNR
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Rotate mode, brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
• On-board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
• Face Detection: Yes
• Exception Detection: Scene change detection
• Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
• Firmware Version: V5.5.61
• Web Client Language: 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3),
• Power Consumption and Current: 12 VDC, 0.7 A, max: 7.5 W,PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 9 W,
• Protection: IP67
• Analytics: Line Crossing
• Camera Style: Turret
• Compression: H.265
• Durability: Weatherproof
• Environmental: Outdoor
• Field of View (Horizontal): 102
• Lens Size: 2.8mm
• Manufacturer Website: https://us.hikvision.com/en
• Max. Storage Capacity: 128 GB
• Night Vision Range (ft): 100
• Protection Code: IP67
• Resolution: 8MP (4K)
• SD Card Support: SD Card Supported
• Sensor Size: 1/2"
• Sensor Type: CMOS
• Technology: Network (IP)
• Wide Dynamic Range (WDR): True WDR 120dB
• Operating TemperatureRange: -30° C to 60° C (-22° F to 140° F)
• Model: DS-2CD2385G1-IB (black)
• Megapixels: 8 MP
