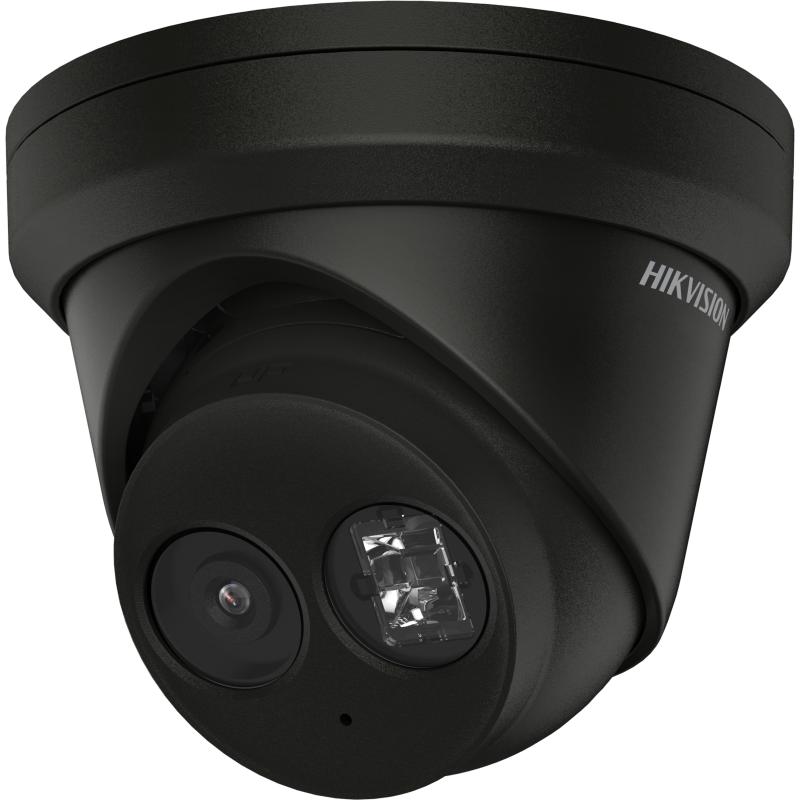

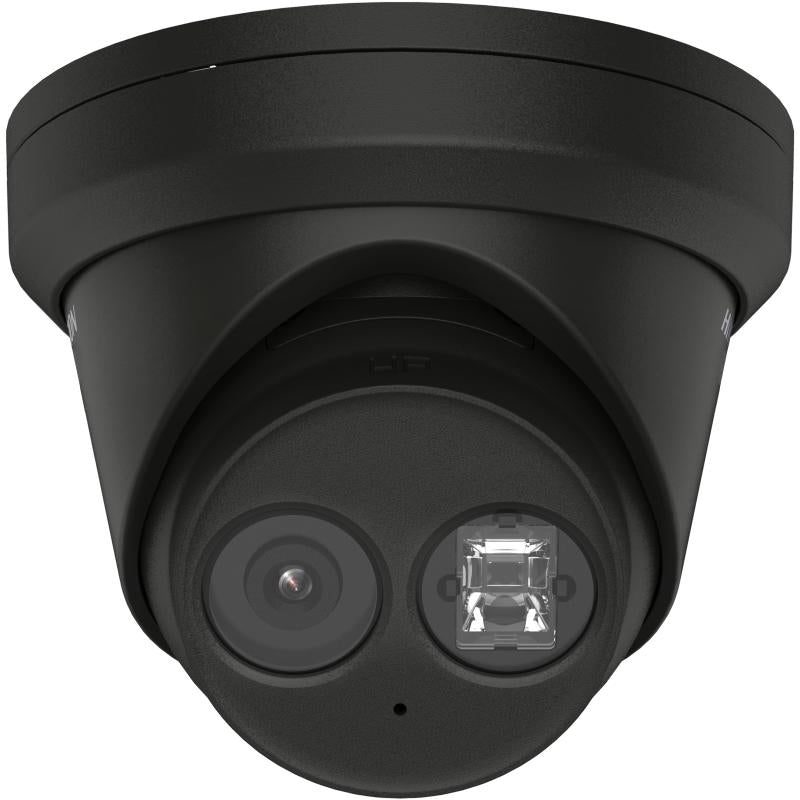

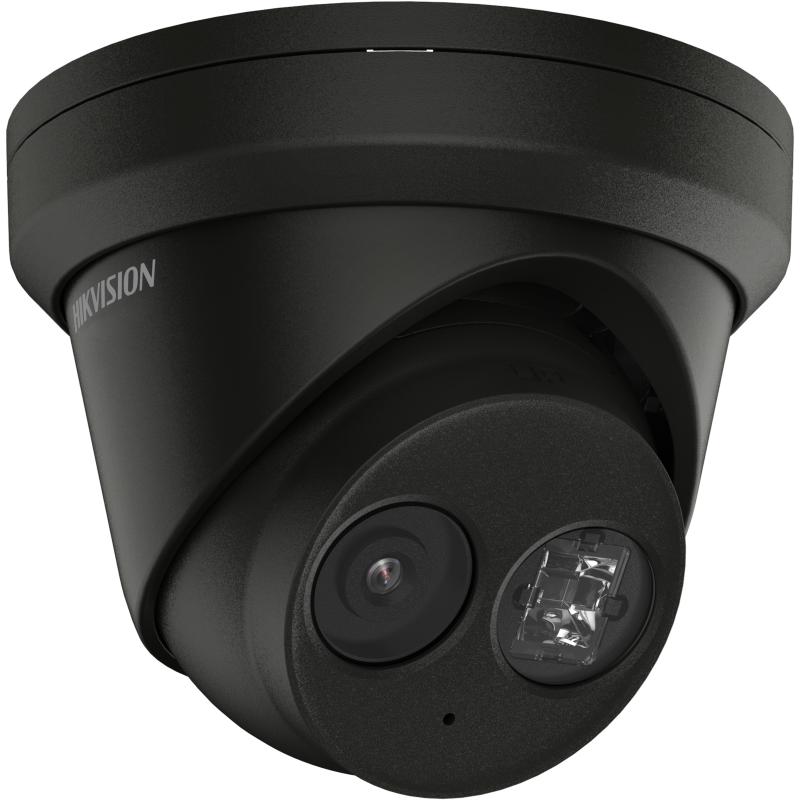

Hikvision DS-2CD2383G2-IU 2.8mm Black 8 Megapixel Acusense Fixed Turret Network Camera With 2.8mm Lens

Product Description

The Hikvision DS-2CD2383G2-IU 2.8MM BLACK is an 8 Megapixel AcuSense fixed turret network camera. Utilizing deep learning algorithms, Hikvision AcuSense technology enables human and vehicle target classification alarms on both front- and back-end devices, focusing on relevant targets to improve alarm efficiency.

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB WDR technology

Product Highlights

This network camera offers 8MP resolution, H.265+ compression, and 120 dB WDR. It supports human and vehicle classification and features a built-in microphone for real-time audio security.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2383G2-IU 2.8MM BLACK

Technical Specifications

• SKU: DS-2CD2383G2-IU-2-8mm-BLACK
• Features: Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Flickerless, Mirror, Motion Detection Tracking, Privacy Masking, Weather Resistant, Wide Dynamic Range, 4K Resolution
• Manufacturer: Hikvision
• Camera Signal: Network IP
• Connection Type: Wired
• Infrared Distance: 61~100 Feet
• Resolution: 8 Megapixel
• Lens Type: Fixed
• Lens Size: 2.8mm
• Mount Type: Ceiling, Wall
• Compression Method: H.264, M-JPEG, H.265, H.264+, H.265+
• Durability: Weather Resistant
• Voltage: 12vDC, PoE
• Electronic Shutter: 1/3 s to 1/100,000 s
• Image Device: 1/2.8" Progressive Scan CMOS
• IR Wavelength: 850 nm
• Minimum Scene Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Operating Humidity: 95% or less (non-condensing)
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Power Consumption: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• S/N Ratio: = 52 dB
• Weatherproof: IP67
• Digital Noise Reduction: 3D DNR
• Angle of View: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
• IR Distance: 30m/98.42ft
• Audio: Yes
• Auto Gain Control: Yes
• Day/Night: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Flickerless: Yes
• Motion Detection Tracking: Yes
• Privacy Masking: Yes
• Wide Dynamic Range: Yes
• Mirror: Yes
• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
• Focal Length & FOV: 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• DORI: DORI 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m 4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m
• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• Main Stream: 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR,VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
• Region of Interest (ROI): 1 fixed region(s) for main stream and sub-stream
• Audio Type: -U: Mono sound
• Audio Compression: -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: -U: Yes
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile G), ISAPI, SDK
• User/Host: Up to 32 users 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
• Image Parameters Switch: Yes
• Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 4 programmable polygon privacy masks
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: -U: Yes
• Reset Key: Yes
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
• Power: 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W
• Rotation Angle: 0° to 360°
• On Screen Display Menu: Yes
