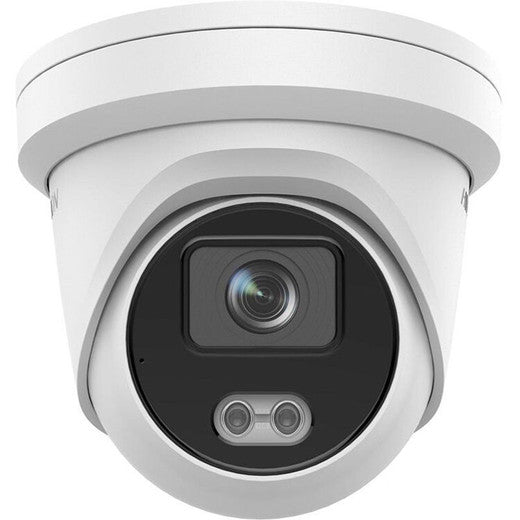

Hikvision DS-2CD2347G2-LU 2.8MM 4 MP ColorVu Fixed Turret Network Camera

Product Description

The Hikvision DS-2CD2347G2-LU 2.8MM is a 4 MP ColorVu fixed turret network camera that provides high-quality imaging. It utilizes efficient H.265+ compression technology and provides clear imaging against strong backlight due to 130 dB WDR technology. A built-in microphone offers real-time audio security.

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology

Product Highlights

This network camera offers 24/7 colorful imaging and is water and dust resistant with an IP67 rating. It focuses on human and vehicle targets classification based on deep learning.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2347G2-LU 2.8MM
• Country of Origin: China

Technical Specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 2.8 mm, 2.5 m to ∞ 4 mm, 3.5 m to ∞ 6 mm, 7.5 m to ∞
• DORI: 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 6 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
• Video Compression: Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: -U: Yes
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage: MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch: Auto, Schedule
• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: -U: Yes
• Reset Key: Yes
• Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
• Face Capture: Yes
• Power: 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• EMC: FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: IP67 (IEC 60529-2013)
• Brand Name: Hikvision
• Manufacturer: Hikvision
• Manufacturer Part Number: DS-2CD2347G2-LU 2.8MM
• Product Line: ColorVu IP
• Product Model: DS-2CD2347G2-LU
• Product Name: 4 MP ColorVu Fixed Turret Network Camera
• Product Series: ColorVu
• Product Type: Network Camera
• Connectivity Technology: Wired
• Effective Camera Resolution: 4MP
• Field of View: Diagonal, Horizontal, Vertical
• Maximum Aperture: f/1
• Maximum Frame Rate: 30fps
• Minimum Focal Length: 2.8mm
• Night Vision: Yes
• Night Vision Type: Color
• Video Formats: H.264, H.265, MJPEG
• Image Sensor Type: CMOS
• Night Vision Distance: 98.43 ft
• Ingress Protection Rating: IP67
• NDAA Compliant: No
• TAA Compliant: No
• Maximum Video Resolution: 2560 x 1440
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -22°F (-30°C)
• Operating Humidity: 0.95
• Longest Shutter Speed: 1/3 Second
• Shortest Shutter Speed: 1/100000 Second
• Network (RJ-45): Yes
• Focal Length: 2.8mm
• Lens Included: Yes
• Maximum Focal Length: 2.8mm
• Remote Management: Yes
• Mount Type: Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
• Storage Type: Memory Card
• Maximum Resolution: 4MP
• Country of Origin: CN
• Environmental Certification: REACH, RoHS, WEEE
• Environmentally Friendly: Yes
• Form Factor: Turret
• Input Voltage: 12V DC
• Resolution: 4MP
• Power Type: 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection;PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W
