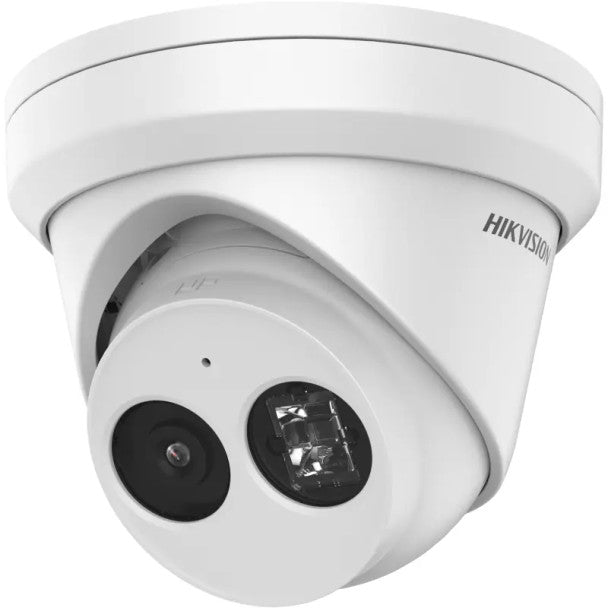

Hikvision DS-2CD2343G2-IU 2.8mm AcuSense 4MP Turret IP Camera with Built-In Microphone REPLACEMENT DS-2CD2343G0-I(2.8MM)

Product Description

The Hikvision DS-2CD2343G2-IU 2.8mm AcuSense 4MP Turret IP Camera uses deep learning algorithms to classify human and vehicle targets, improving alarm efficiency. The system focuses on relevant targets, reducing false alarms. It captures high-quality 4MP resolution video with clear imaging against strong backlighting due to 120 dB WDR technology.

• Features a built-in microphone for real-time audio security.
• Water and dust resistant with an IP67 rating.
• Provides night vision up to 98.43 feet.

Product Highlights

This AcuSense turret camera offers advanced features for accurate surveillance and is suitable for both indoor and outdoor use.

Product Information

Standard Information

• Brand: HIKVISION
• Manufacturer Part Number: DS-2CD2343G2-IU 2.8mm
• Country of Origin: China

Technical Specifications

• ADI Part Number: HX-2343G22
• Brand Name: Hikvision
• Manufacturer: Hikvision
• Manufacturer Part Number: DS-2CD2343G2-IU 2.8MM
• Product Line: Value IP
• Product Model: DS-2CD2343G2-IU
• Product Name: 4 MP AcuSenseFixed Turret Network Camera
• Product Series: Hikvision Value Series
• Product Type: Network Camera
• Connectivity Technology: Wired
• Effective Camera Resolution: 4MP
• Field of View: Diagonal, Horizontal, Vertical
• Lens Mount Type: M12
• Lens Type: Fixed Lens
• Maximum Aperture: f/1.6
• Maximum Frame Rate: 30fps
• Minimum Focal Length: 2.8mm
• Night Vision: Yes
• Video Formats: H.264, H.265, MJPEG
• Image Sensor Type: CMOS
• Night Vision Distance: 98.43 ft
• Wide Dynamic Range: Yes
• Ingress Protection Rating: IP67
• NDAA Compliant: No
• TAA Compliant: No
• Maximum Video Resolution: 2560 x 1440
• Maximum Operating Temperature: 140°F (60°C)
• Minimum Operating Temperature: -22°F (-30°C)
• Operating Humidity: 0.95
• Longest Shutter Speed: 1/3 Second
• Shortest Shutter Speed: 1/100000 Second
• Network (RJ-45): Yes
• Focal Length: 2.8mm
• Lens Included: Yes
• Maximum Focal Length: 2.8mm
• Remote Management: Yes
• ADI Part Number Replaces: HX-2343G22B, HX-TR2323F2, HX-TR2343F2, HX-TR43G22
• Model Number Replaces: DS-2CD2323G0-I 2.8MM, DS-2CD2343G0-I 2.8MM, DS-2CD2343G2-I 2.8MM, DS-2CD2343G2-IU 2.8MM(BLACK)
• Durability: Weatherproof
• Form Factor: Turret
• Diameter: 5"
• Mount Type: Ceiling Mount, Corner Mount, Pole Mount, Wall Mount
• Recording Formats: HD
• Maximum Resolution: 4MP
• Image Sensor: 1/3"-Type CMOS
• Vertical: 55°
• Diagonal: 122°
• Pan/Tilt: No
• Built-In Microphone: Yes
• Power I/O: 1x DC, 1x RJ45
• Number of Lenses: 1
• Effective Sensor Resolution: 4 Megapixel
• IR Cut Filter: Yes Mechanical
• Day/Night: Auto Day (Color) Night (B/W)
• DORI Coverage With 2.8mm Lens Detect: At 220' / 67.1 m
• DORI Coverage With 2.8mm Lens Observe: At 85' / 25.9 m
• DORI Coverage With 2.8mm Lens Recognize: At 43' / 13.1 m
• DORI Coverage With 2.8mm Lens Identify: At 20' / 6.1 m
• Automatic Gain Control: Yes
• Minimum Illumination (Color): 0.005 Lux
• Minimum Illumination (Black and White): 0 Lux
• Max IP Streaming via RJ45: 2688 x 1520 up to 30.00 fps
• Multi-View Streaming: Yes: 3 Streams
• Camera Angle Adjustment Horizontal: 0 to 360°
• Camera Angle Adjustment Vertical: 0 to 75°
• Camera Angle Adjustment Rotation: 0 to 360°
• Security: Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection
• Media/Memory Card Slot: Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
• Other I/O: 1x RJ45
• 1- or 2-Way Audio: One-Way
• Audio Formats: AAC, G.711, G.722.1, G.726, MP2L2, MP3, PCM
• External Storage Options: NAS
• Analytics: Camera Sabotage/Tampering, Face Detection, Intrusion Detection, Motion Detection, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
• Built-In Installation Aids: Pixel Counter
• Event Trigger: Yes
• Event Action: Recording, Notification, Alarm
• Alarm I/O: No
• Power Consumption Power Supply: 6 W
• Power Consumption PoE: 7 W
• Operating Conditions: -22 to 140°F / -30 to 60°C up to 95% Humidity
• Storage Conditions: -22 to 140°F / -30 to 60°C
• Environmental Resistance: Dust/Water-Resistant (IP67)
• Materials: Aluminum
• Illumination: 850 nm IR LEDs up to 98.4' / 30 m
• OS Compatibility: Android/iOS
• Aperture: F1.6
• Audio Capability: One-way Audio
• Audio Compression: G.711ulaw G.711alaw G.722.1 G.726 AAC MP2L2 MP3 PCM
• Audio Support: Built-in Microphone
• Built-in Features: Built-in Analytics
• Camera Style: Turret
• Compatible Integration (API): ONVIF Profile G ONVIF Profile S ISAPI SDK
• Compression: H.265 H.265 Plus H.264 H.264 Plus MJPEG
• Connection Type: Wired
• Environmental: Outdoor
• Field of View (Horizontal): 103
• Iris: Fixed Iris
• Lens Size: 2.8mm
• Manufacturer Website: https://us.hikvision.com/en
• Max Power Consumption: 6 Watts 7 Watts
• Max. FPS and Resolution: 30fps at 2688 x 1520
• Minimum Illumination (B/W): 0 lux
• Network Interface: 1x RJ45 100 M self-adaptive Ethernet interface
• Night Vision Range (ft): 100
• Night Vision Type: Night Vision (IR)
• Noise Reduction: 3D DNR
• Power Supply: PoE (IEEE 802.3af) 12 VDC
• Protection Code: IP67
• Remote Users: Up to 32
• Reset Button: None
• Resolution: 4MP
• SD Card Support: SD Card Supported
• Sensor Size: 1/3"
• Sensor Type: CMOS
• Shutter Speed: 1/3-1/100000s
• Special Technologies: Hikvision AcuSense
• Specialized Camera Feature: Deep-learning
• Technology: Network (IP)
• Wavelength (nm): 850
• Wide Dynamic Range (WDR): True WDR 120dB
• Condition: New
• Features: Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Flickerless, Mirror, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range
• Brand: Hikvision
• NDAA Compliance: No
• IR Distance: 30m/98ft
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSocket
• Power Consumption: 12 VDC, 0.5 A, max. 6 W, PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 7 W
• Minimum Scene Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
• Rotation Angle: 0° to 360°
• Angle of View: Horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
• Weatherproof: IP67
• IR Wavelength: 850 nm
• Infrared Distance: 61~100 Feet
• Voltage: 12vDC, PoE
• Compression Method: H.264, M-JPEG, H.264+, H.265, H.265+
• Image Device: 1/3″ Progressive Scan CMOS
• Electronic Shutter: 1/3 s to 1/100,000 s
• Motion Detection Tracking: Yes
• On Screen Display Menu: Yes
• Privacy Masking: Yes
• Mirror: Yes
• Automatic White Balance: Yes
• Back Light Compensation: Yes
• Flickerless: Yes
